Description

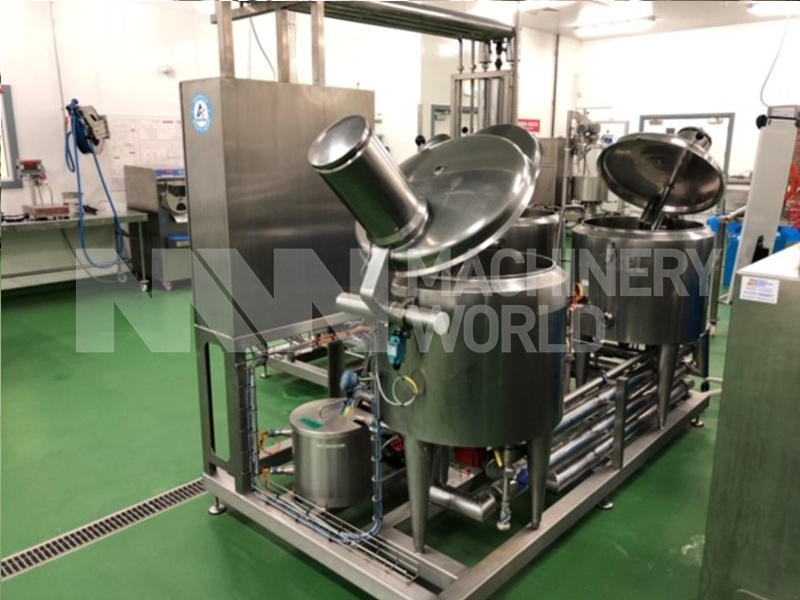

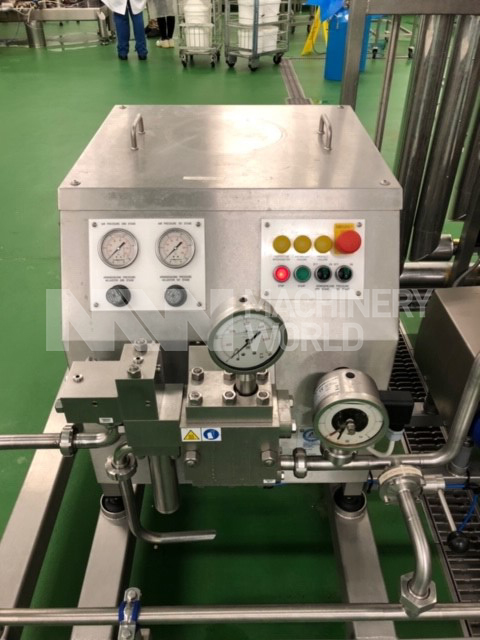

This is an R&D food laboratory plant manufactured by Tetra Pak. It was previously installed at a UK University and used for training students in food processing. The skid-mounted unit is complete with 3x Diessel mixing tanks, each equipped with agitation and the possibility of heating with steam or cooling with chilled water. It also includes an FBF homogeniser with 100 litres per hour capacity and a maximum working pressure of 200 bar (20 MPa), CIP pump and intergrated control panel (with an inbuilt chart recorder) to operate the plant. See ‘Technical Doc’ for P&ID drawing.
Features
- Manufacturer: Tetra Pak
- Year of manufacture: 2011
- Function: R&D / NPD
- Product: Multipurpose – it was previously used on ice cream
- Capacity: 100 litres / hour
- Includes 3x Diessel mixing tanks, FBF homogeniser & CIP pump
- Control panel with an inbuilt chart recorder
- Serial number: DFBQ10-0527
Dimensions
- Length: 280 cms
- Width: 280 cms
- Height: 200 cms
- Weight: 1520 kgs
Country of Manufacture
United Kingdom
Download Technical Doc
