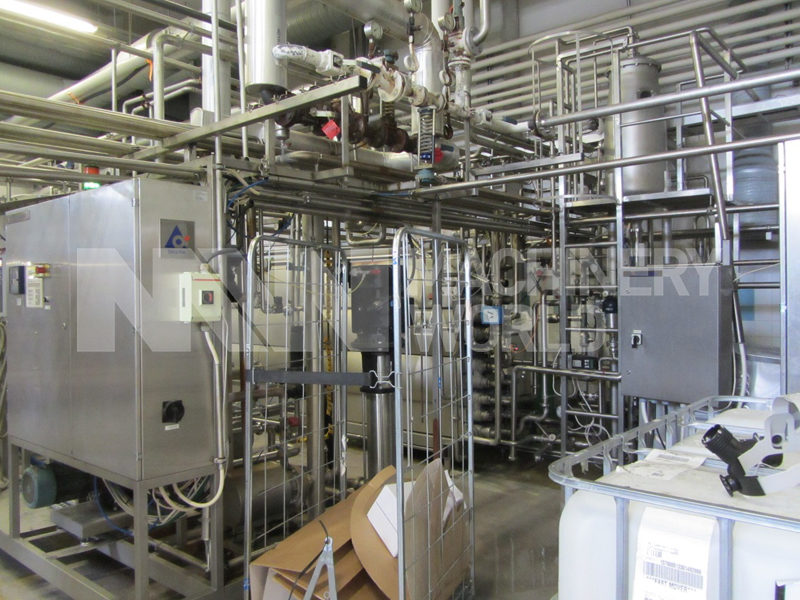

Tetra Pak Souprano Aseptic Process Plant – 2.000 kg/h

Description

Anaseptic plant designed for very fast heat treatment, with an efficient bacteria spore kill rate and a very low chemical change to the product.

Features

• Manufacturer:Tetra Pak
• Model:Souprano
• Serial number: T5843500002
• Function: Aseptic plant
• Year of manufacture: 1997
• Country of manufacture: Sweden
• Capacity: 2,000 kg/per hour
• Electrics: 380V/50Hz/3 Phase
• All electrical/technical documentation included

Includes:

Tetra Pak Souprano Control System:

• Manufacture: Tetra Pak
• Model: Souprano
• Serial number: T584 350 0002
• Drawing spec: T584 350 0002
• Year of manufacture: 1997
• Country of manufacture: Sweden
• AlfaLaval pump #1 (Type: LKH 10/163 SSS 3.0 kW / Serial no. 95577)
• Alfa Laval pump #2 (Type: LKH 10/140 SSS 1.5 kW / Serial no. 005386)
• Alfa Laval pump #3 (Type: LKH 10/140 FSS1.5 kW / Serial no. 006705)
• Dimensions: L290xW230xH119cm

Tetra Pak Aseptic Homogeniser:

• Manufacture: Tetra Pak
• Model: Alex S15 Aseptic
• Serial number: T5845560112
• Capacity: 2,000 litres/hour
• Piston diameter: 32mm
• Installed power:15 kW (1445 r/min)
• Max. working pressure: 200 bar
• Number of stages: 2 stage
• Valve arrangement:Mushroom valve
• Dimensions: L90xW75xH119cm

Tetra Pak Spiraflo Tubular Heat Exchanger:

• Manufacture: Tetra Pak
• Model: Spiraflo MT-85
• Serial number: 173113 01-14
• Vessel duty: Sterilization of milk products with steam
• Shell diameter: (Outer) 85mm
• Diameter of product tubes (Outer): 25mm
• Workingpressure: 16 bar / 60 bar -- (Shell/Tubes)
• Working temperature: 160degC / 160degC -- (Shell/Tubes)
• Contents (medium): Water, Steam or Glycol/ Milk products -- (Shell/Tubes)
• Dimensions: L640xW88xH130cm

Tetra Pak Deaerator:

• Manufacture: Tetra Pak
• Model: DD 500
• Serial number: 32142-2753
• Tank volume: 200 litre
• Capacity: Up to 5,000 litres/hour
• Design temperature: 100 degC
• Dimensions: L50xW50xH300cm
