12,000 LPH APV Gaulin MC30-3TPS (200 Bar) Homogeniser

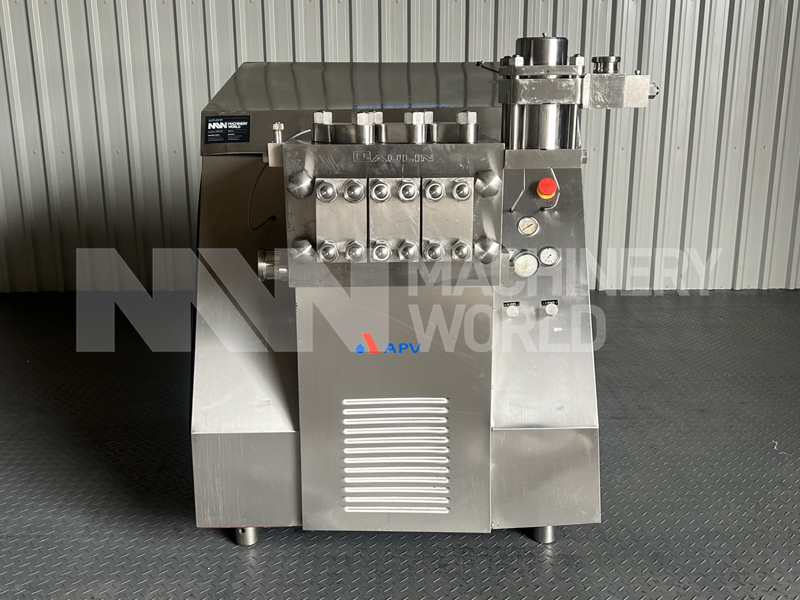

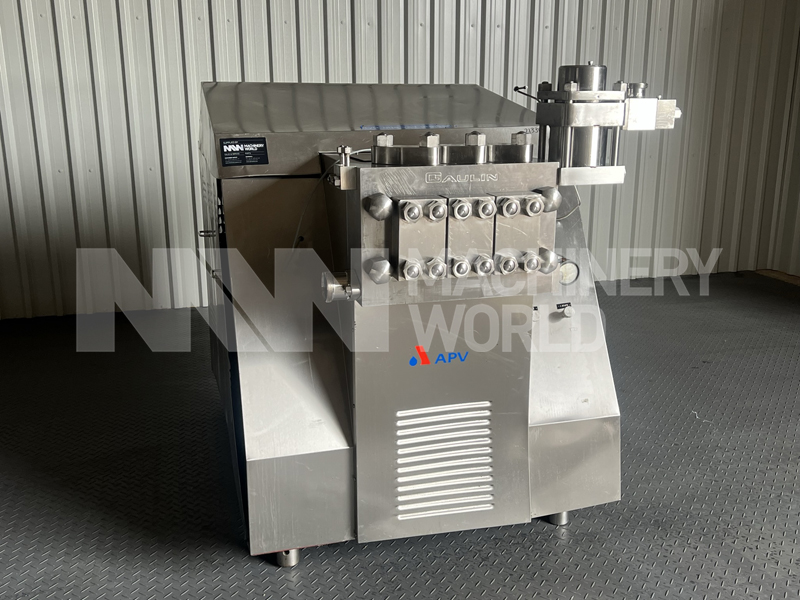

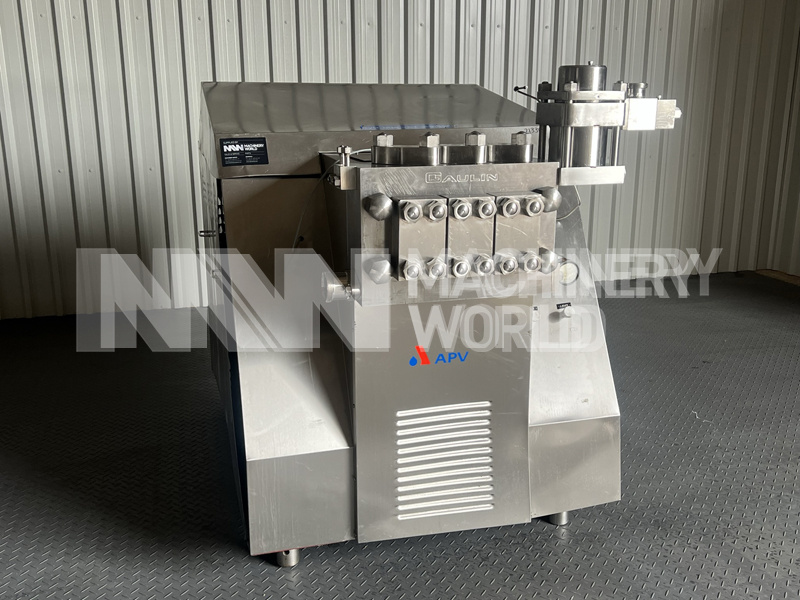

This is a used APV Gaulin MC30-3TPS High Pressure Homogeniser.This APV Gaulin MC30-3TPS High Pressure Homogeniser has a working capacity of approx 12,000 LPH and capable of working at a maximum rated pressure of 200 Bar (2,900 PSI). This APV Gaulin MC30-3TPS High Pressure Homogeniser comes with Micro Gap Homogeniser Valve assembly which generates a very thin film of fluid and then subject this film to high-intensity energy. For more details on the Micro Gap Valve Assembly – Click Here

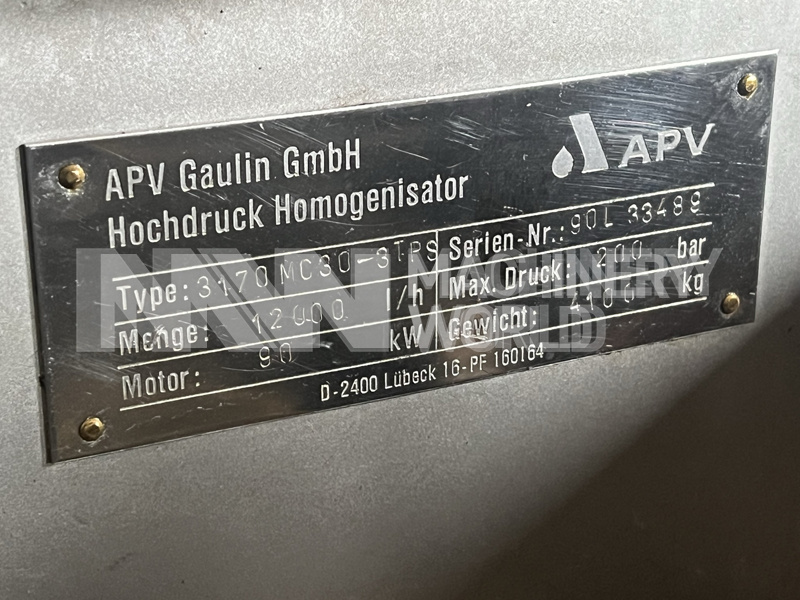

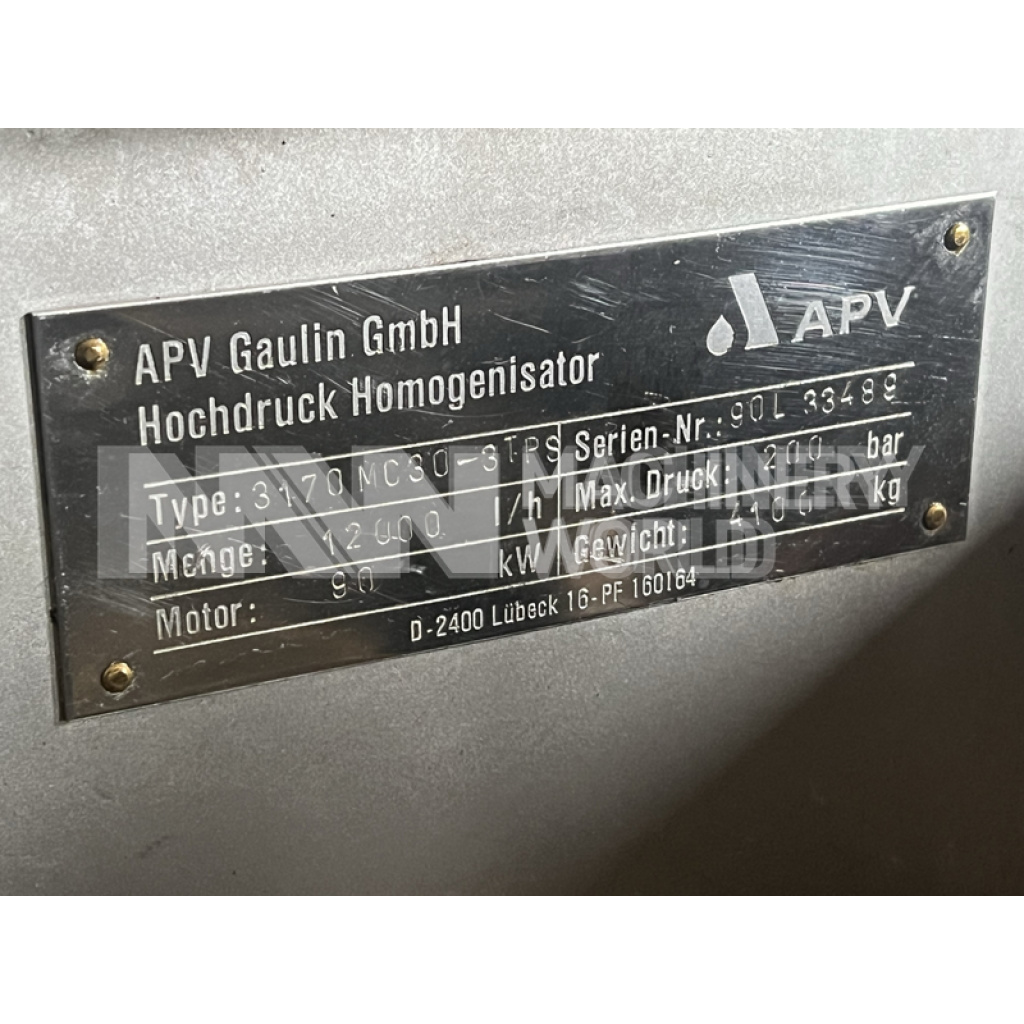

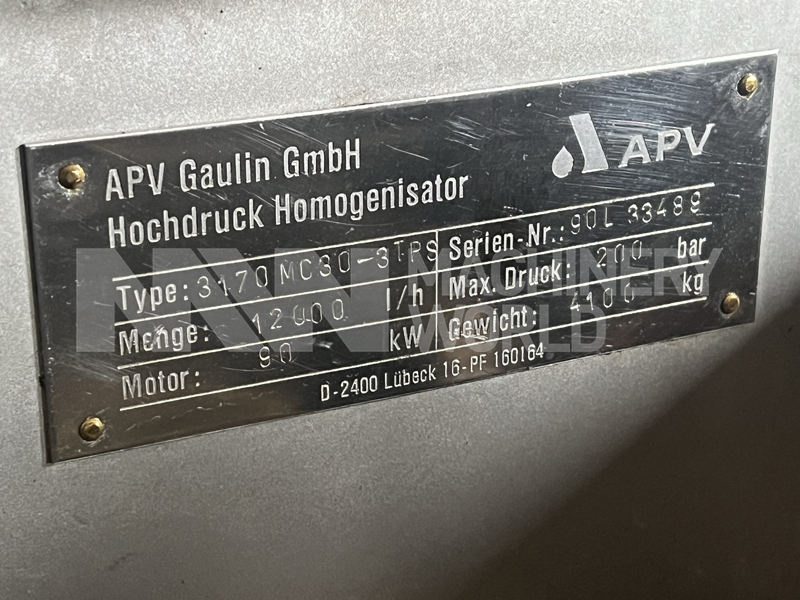

  • Manufacturer: APV Gaulin GmbH, Germany
  • Type: 3170 MC30 – 3TPS
  • Serial Number: 90L33489
  • Function: High Pressure Homogeniser Pump
  • Capacity: Approx 12,000 Liters Per Hour
  • Max. working pressure: 200 bar (2,900 PSI)
  • Operating Temperature: 80 deg C
  • Valve Control: Hydraulic
  • Number of stages: 2-Stage
  • Valve Type: Poppet Valve

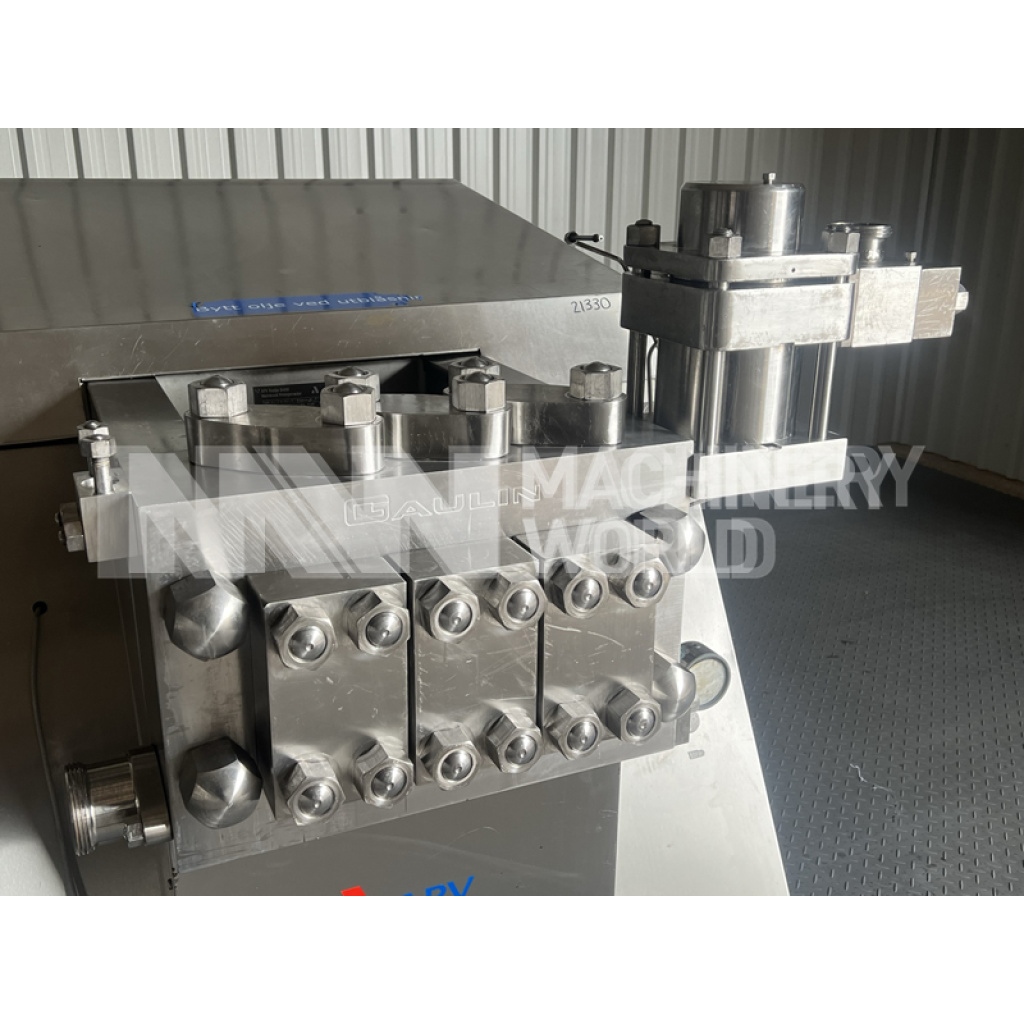

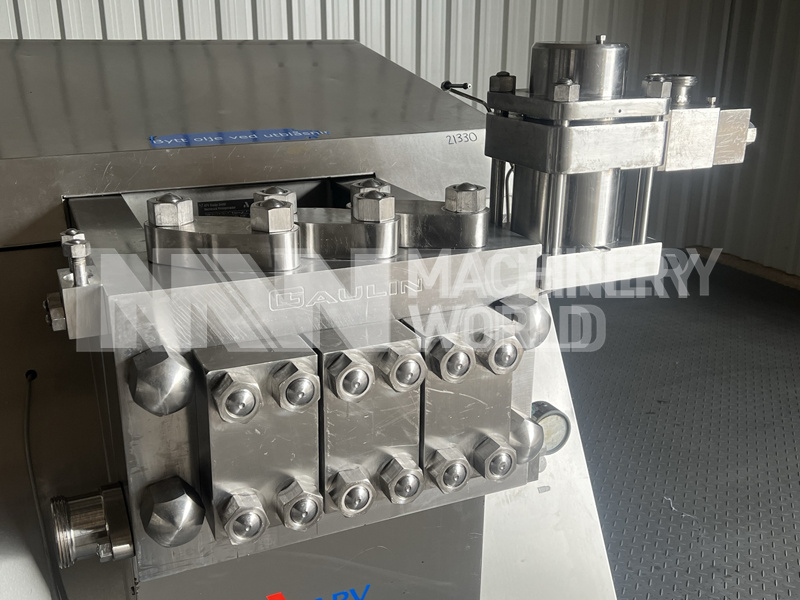

  • Additional Details: Machine comes installed with Micro Gap Homogenising Valve Assembly

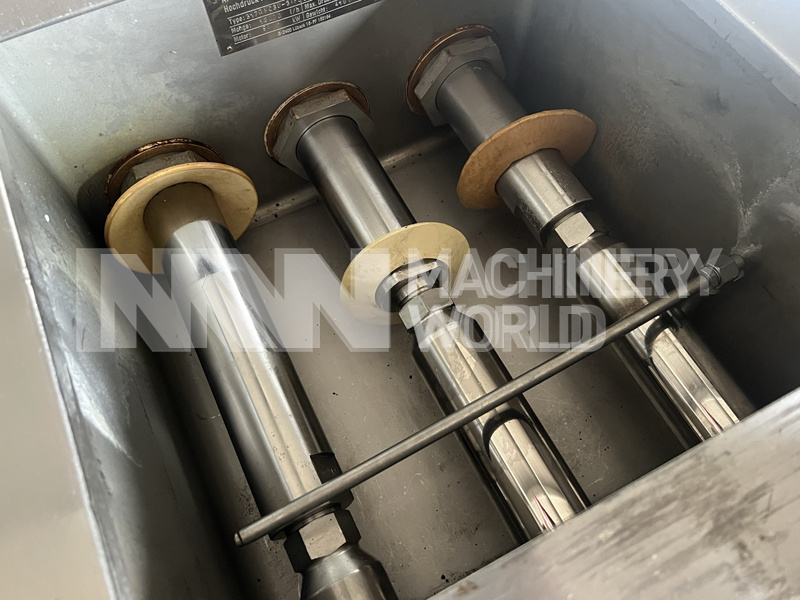

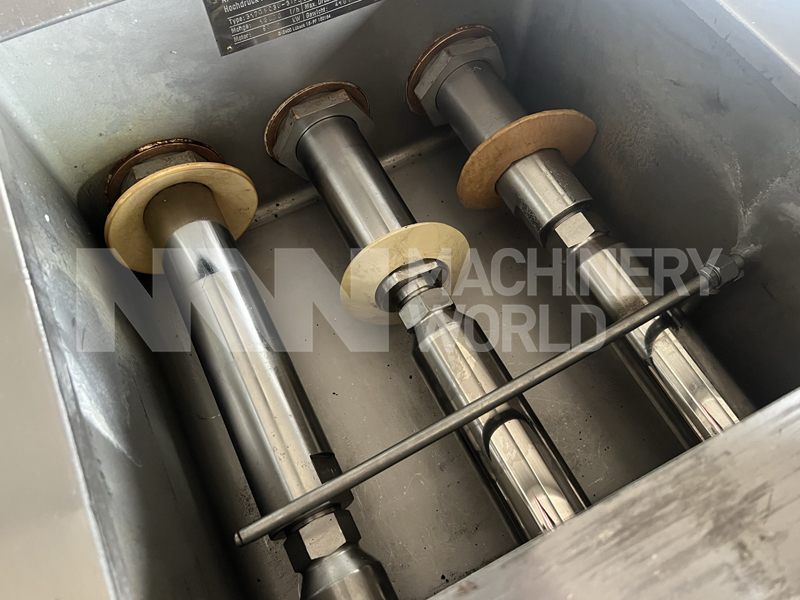

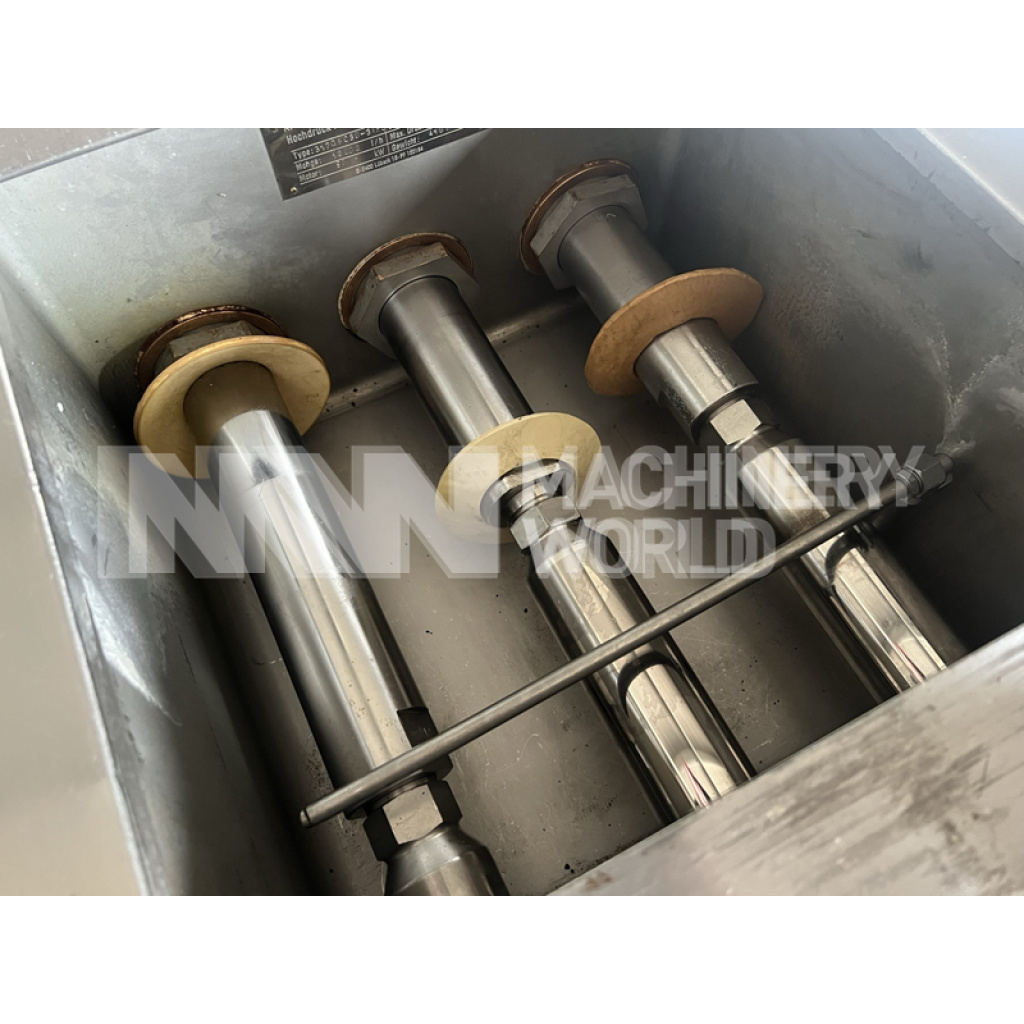

  • Number of Pistons (Plungers): 3x Pistons/Plungers
  • Piston/Plunger Diameter: 2.25 inch (57.2mm)

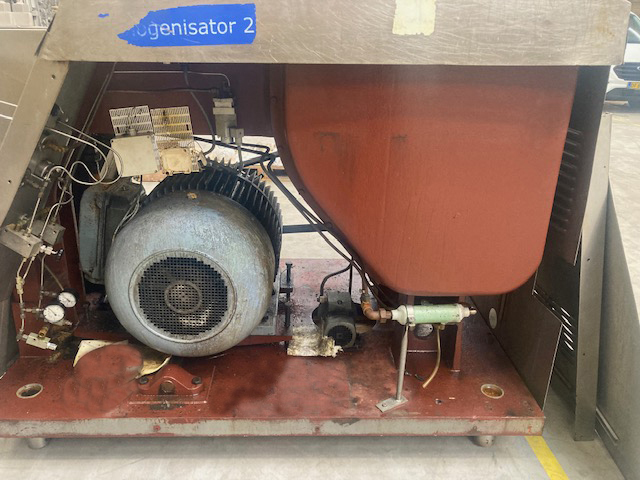

  • Main Drive Motor Power: 90kw
  • Electrics: 400V / 3Phase / 50Hz
  • Finish: Stainless steel covers

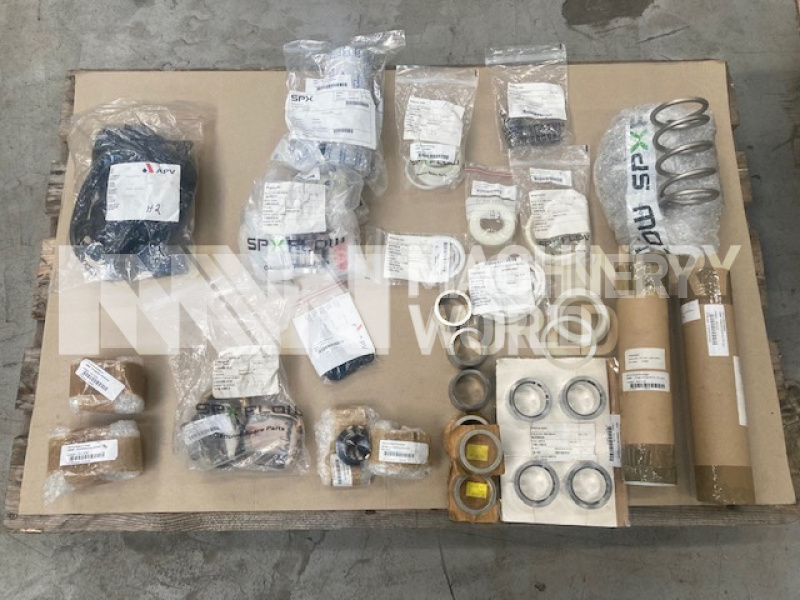

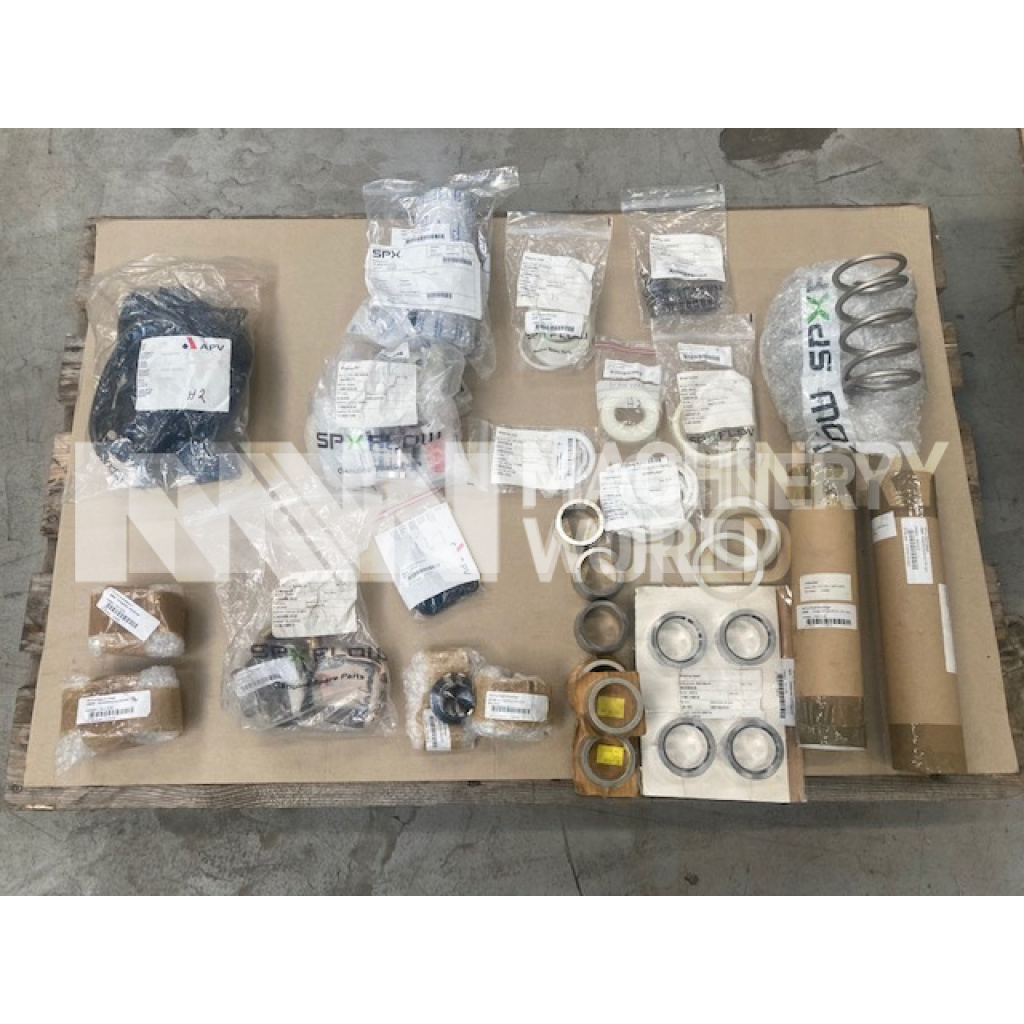

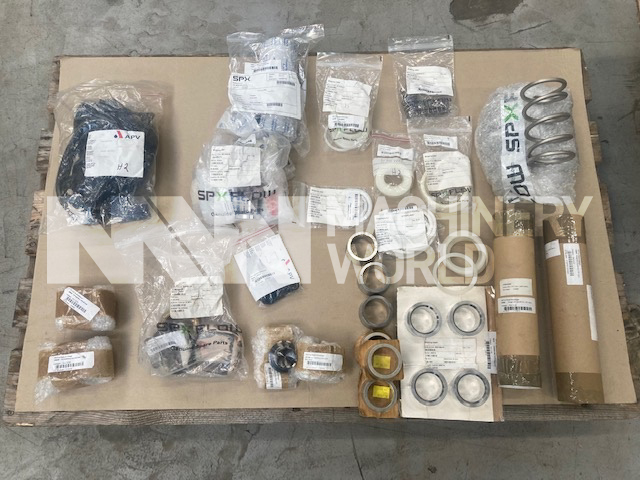

  • Various Spares included as per pictures
  • Depth: 2050mm
  • Width: 1600mm
  • Height: 1650mm
  • Weight: Approx 4,100 kgs
