16,000 LPH APV Gaulin MC75-3.5TPSX (230 Bar) Aseptic Homogeniser

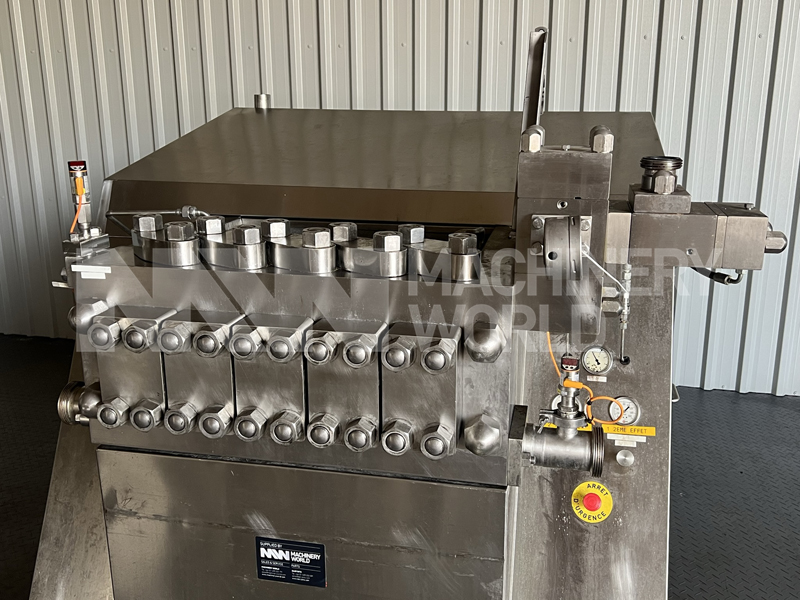

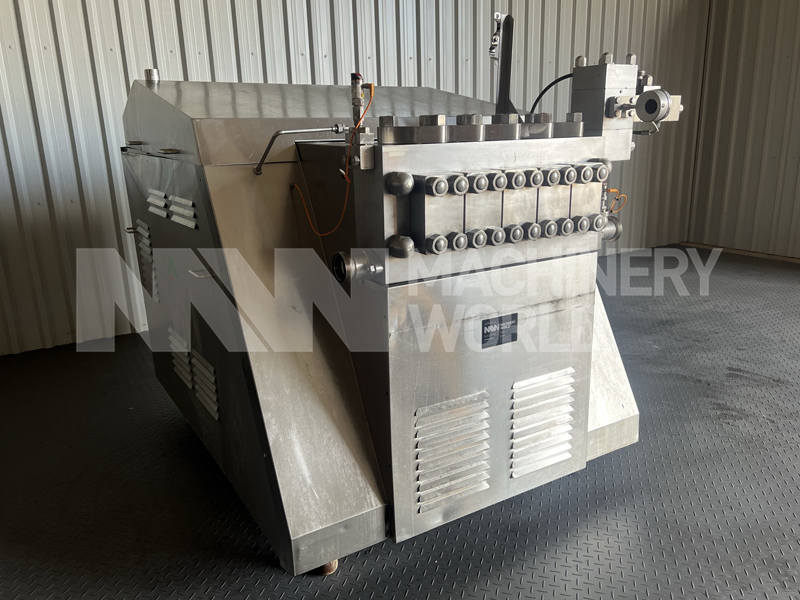

This is an used APV Gaulin MC75-3.5TPSX High Pressure Aseptic Homogeniser.This APV Gaulin MC75-3.5TPSX High Pressure Aseptic Homogeniser has a working capacity of approx 16,000 LPH and capable of working at a maximum rated pressure of 230 Bar (3500 PSI). This APV GaulinMC75-3.5TPSX High Pressure Aseptic Homogeniser comes with 2 Stage Homogeniser Valve assembly and comes with 5x high chrome plated pistons – plungers. This APV Gaulin MC75-3.5TPSX High Pressure Aseptic Homogeniser was previously used at a major multinational high care infant baby food facility. Currently held as stock, this APV Gaulin MC75-3.5TPSX High Pressure Aseptic Homogeniser is available for immediate sale.

  • Manufacturer: APV Gaulin GmbH, Germany
  • Type: MC75 – 3.5TPSX
  • Serial Number: 00H1103
  • Function: High Pressure Aseptic Homogeniser Pump
  • Capacity: Approx 16,000 Liters Per Hour
  • Max. working pressure: 230 bar (3,500 PSI)
  • Operating Temperature: 95 deg C
  • Valve Control: Hydraulic
  • Number of stages: 2-Stage
  • Valve Type: Poppet Valve (Mushroom Type Valve)
  • Number of Pistons (Plungers): 5x Pistons/Plungers
  • Piston/Plunger Diameter: 54mm
  • Piston Material: Chromium Carbide Coated Pistons
  • Main Drive Motor Power: 132kw
  • Electrics: 400V / 3Phase / 50Hz
  • Finish: Stainless steel covers
  • Various Spares included (as photographed)
  • Previous Use: Infant – Baby Food
  • Depth: 2110mm
  • Width: 1550mm
  • Height: 1305mm
  • Weight: Approx 2,800 kgs
