20,000 LPH Tecnolat 3-Tank (1,500L) & 1-Channel Automatic CIP System Plant

Description:

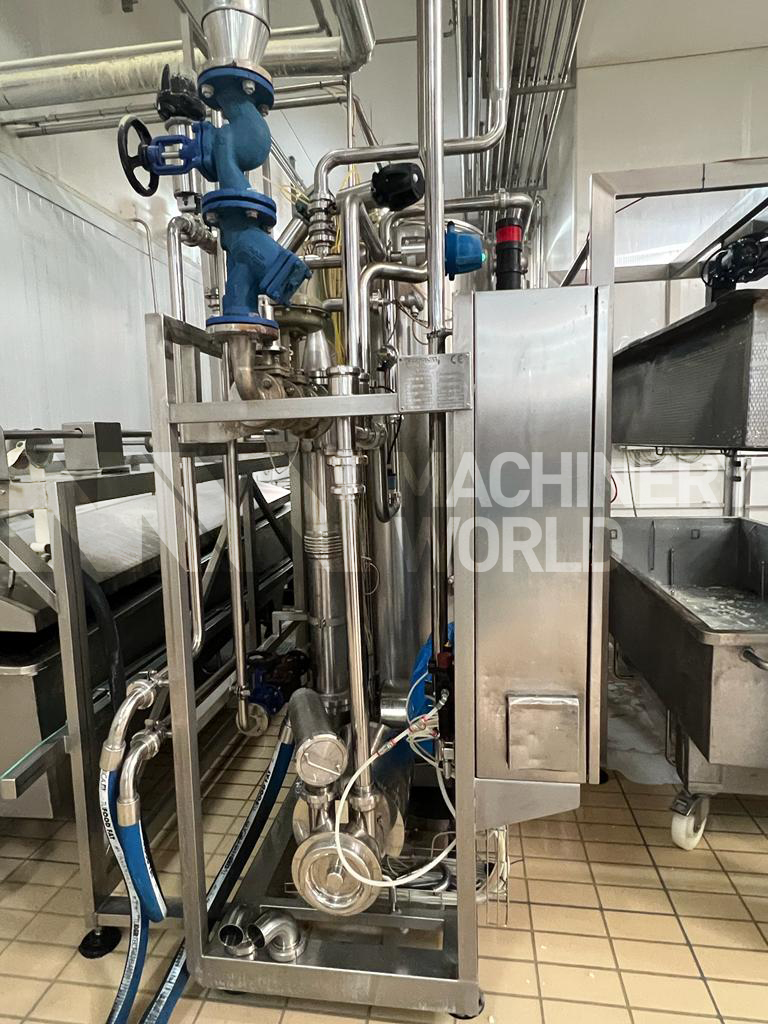

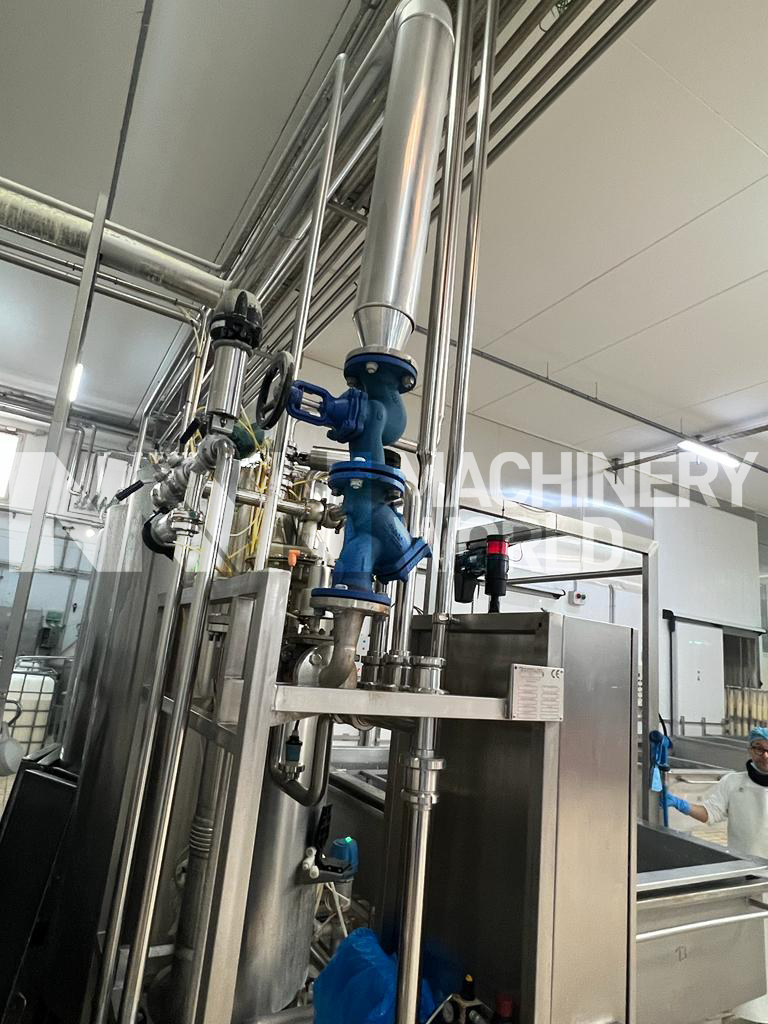

This is an used Tecnolat 3-Tank & 1-Channel Automatic CIP System Plant. This Technolat 3-Tank & 1-Channel Automatic CIP System Plant is completely skid mounted & has a flow rate of approx 20,000 LPH and comprises of 3x 1,500 Ltr Tanks. This Tecnolat CIP System is capable of cleaning Single Channel, at any given time and includes Tubular Heat Exchanger for heating up the Caustic/Acid Solution. CIP System comes with a fully integrated Control Panel with Siemens PLC and Touchscreen HDMI Display. Currently held as stock, this CIP System is available for immediate sale.

Specification:

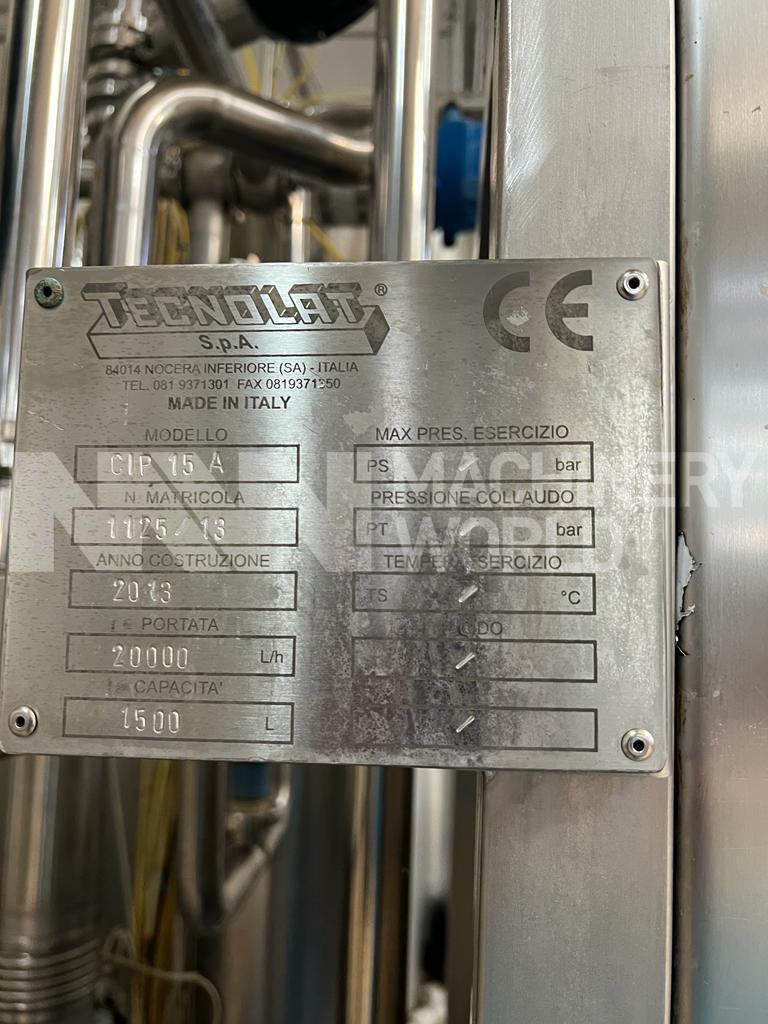

• Make: Tecnolat, Italy
• Model: CIP 15A
• Serial Number: 1125/13
• Year of manufacture: 2013
• Flowrate: Approx 20,000 LPH
• Type: 3-Tank & 1-Channel System
• Heat Exchanger Type: Tubular (Shell-In-Tube)

Tanks:

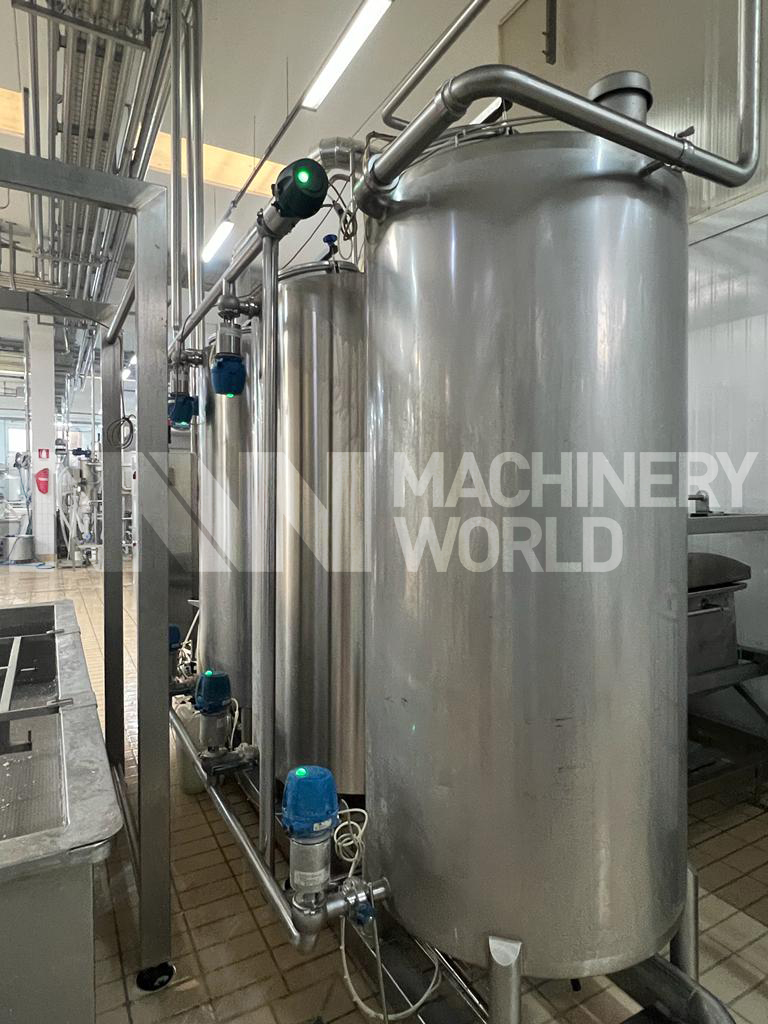

• Caustic Tank: Approx 1,500 Ltr, Stainless Steel Construction
• Acid Tank: Approx 1,500 Ltr, Stainless Steel Construction
• Rinse Tank: Approx 1,500 Ltr, Stainless Steel Construction

Pumps:

• Dosing Pumps
• Delivery Pump

Components Included:

• Automatic Pneumatic Actuated Valves with Feedback
• Inline Filter on the Delivery Line
• Steam Shut-off Valve with Strainer
• Conductivity Probe

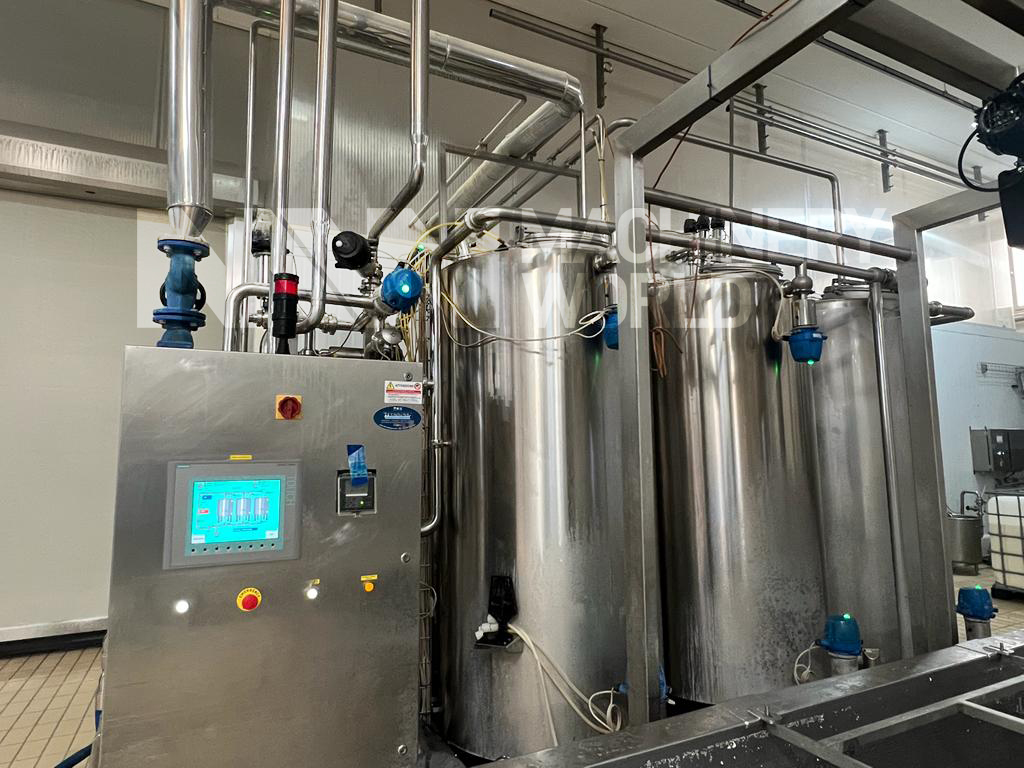

Control Panel:

• Stainless Steel Construction
• Fully Integrated & Skid Mounted
• Siemens PLC
• Siemens Touchscreen HDMI Display

Construction: Stainless Steel and Skid Mounted Approx. Overall Dimensions of CIP Skid: (L x W x H) in mm: 4200mm x 1400mm x 2850mm Country of manufacture: Italy
