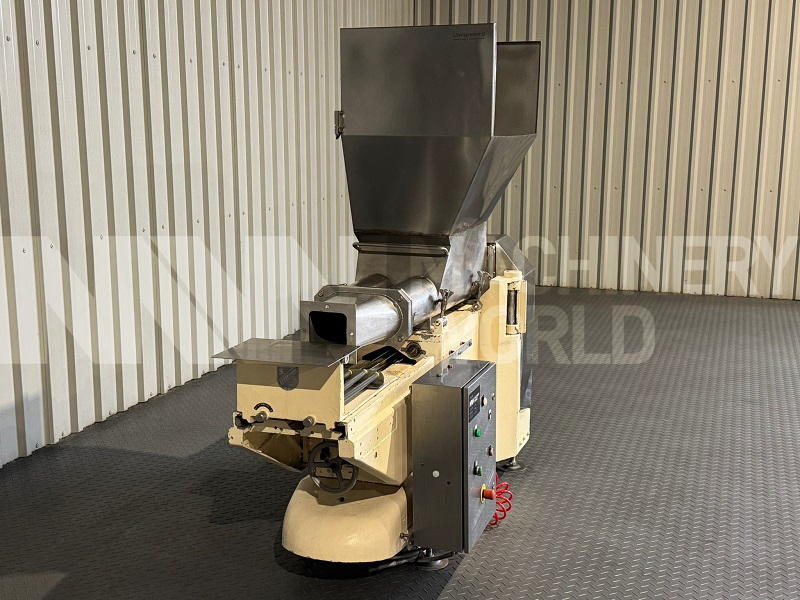

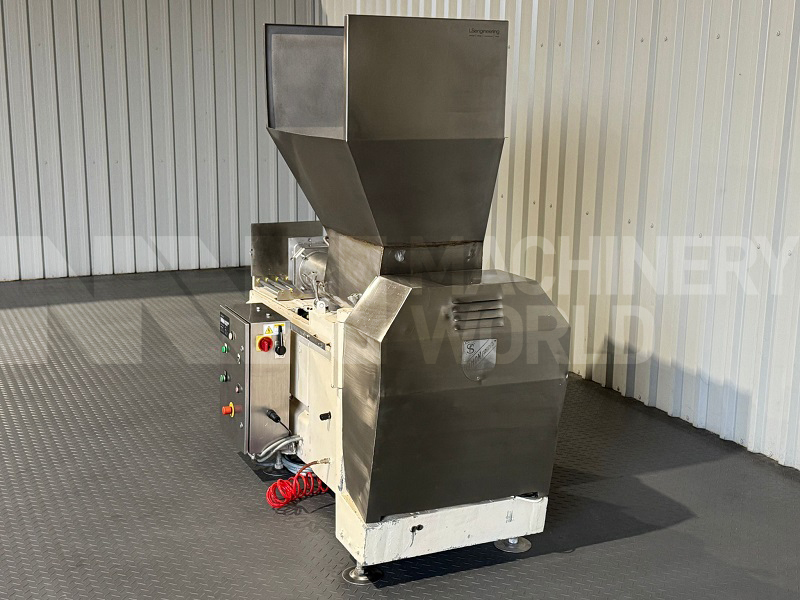

25kg Simon Freres KM1000 Constistock Bulk Butter Packer with Hopper

Description

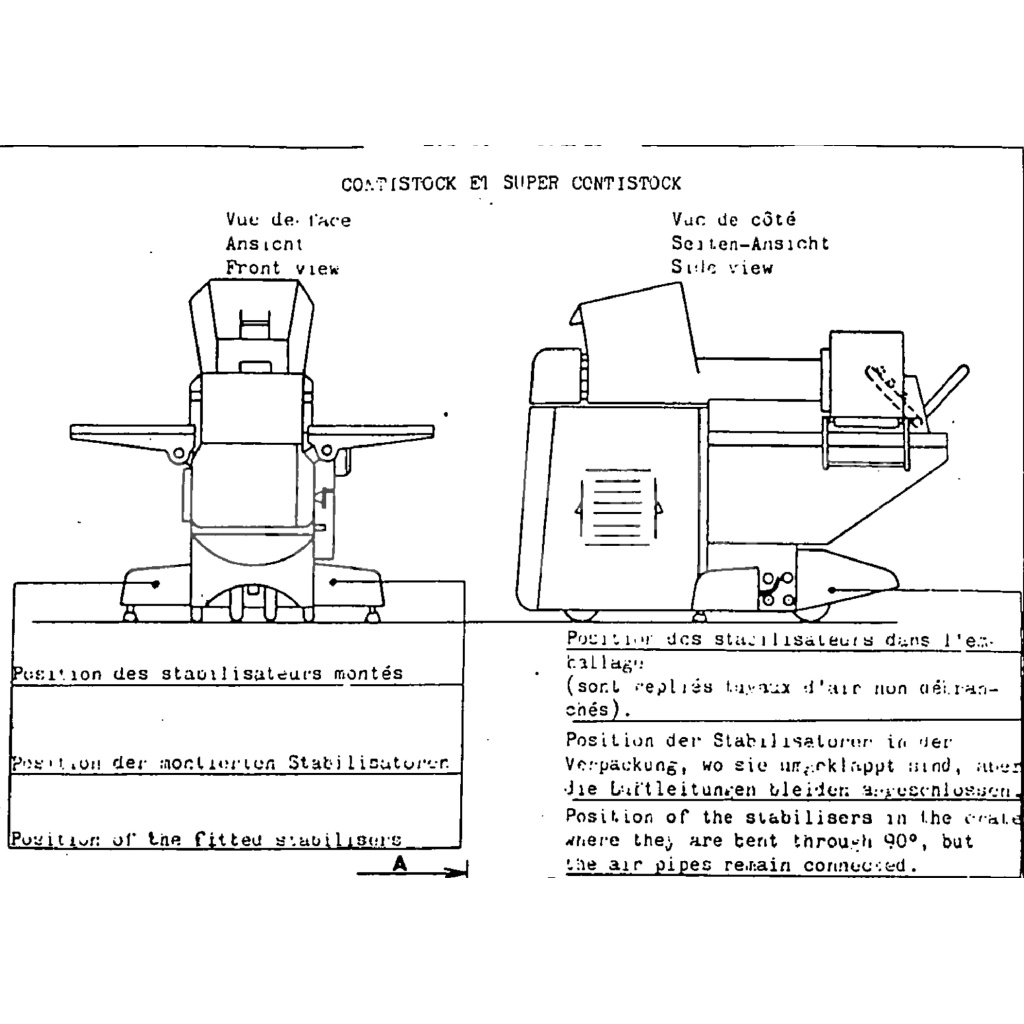

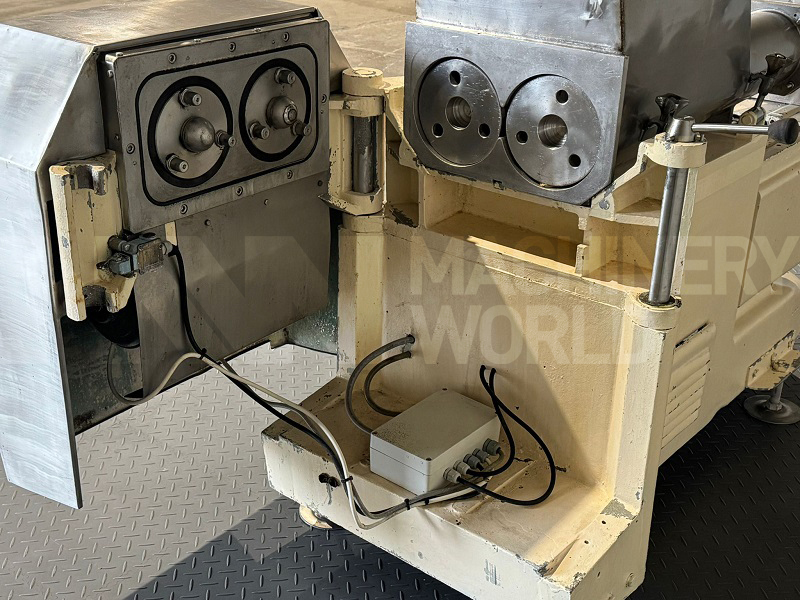

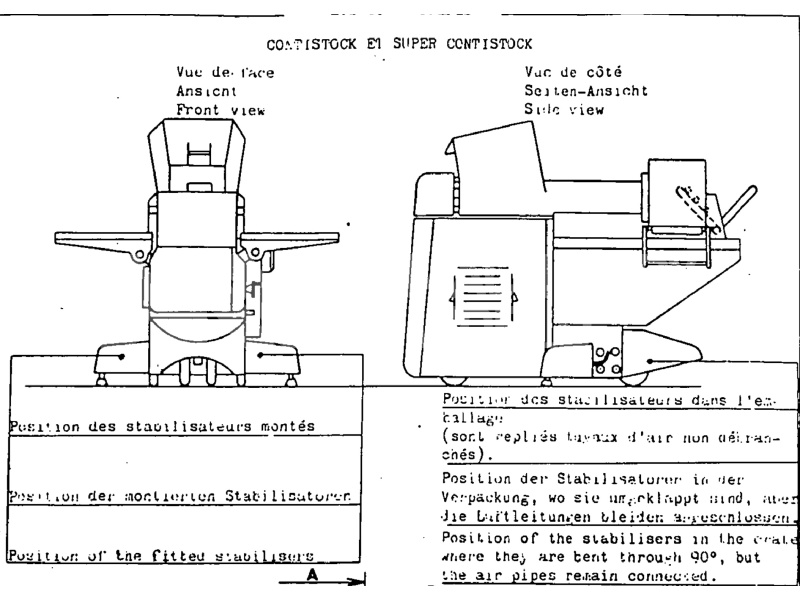

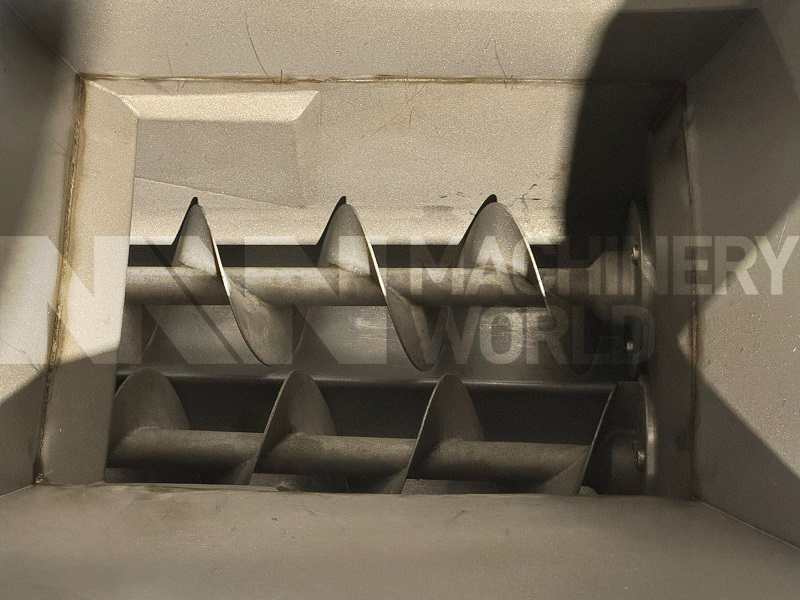

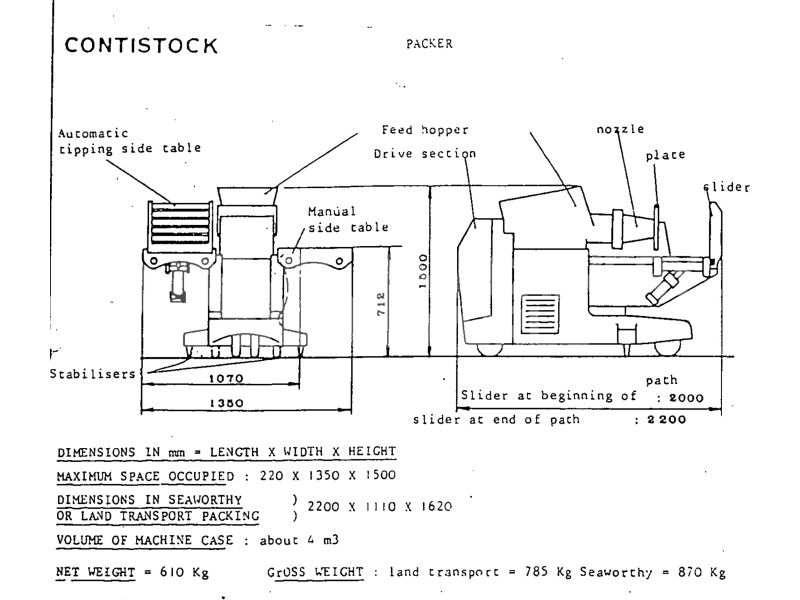

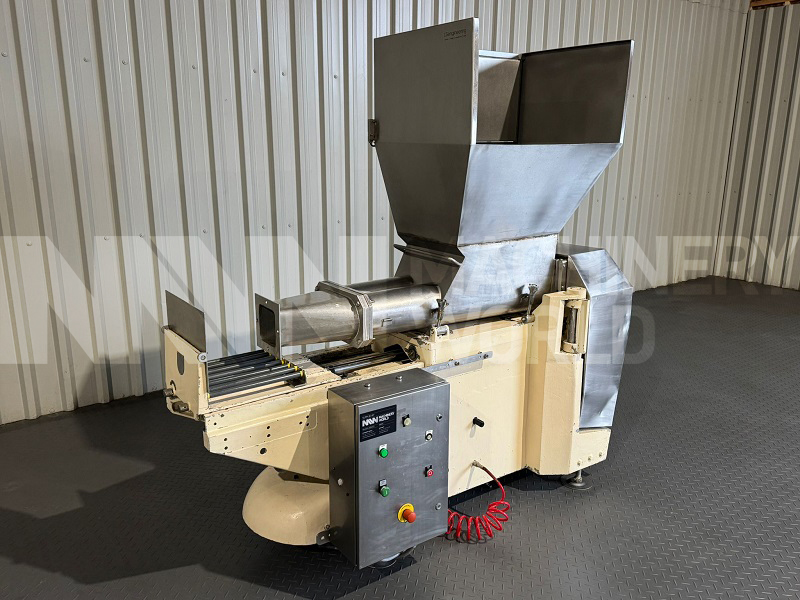

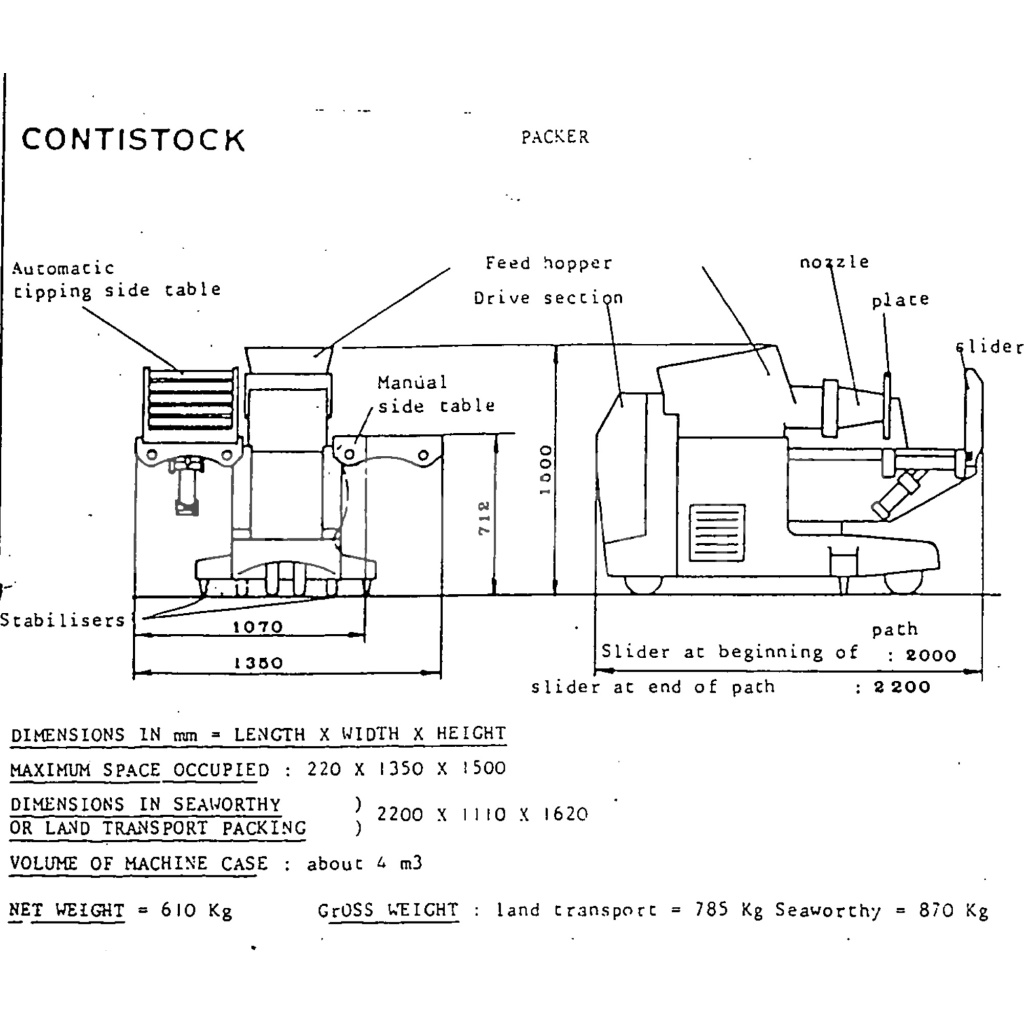

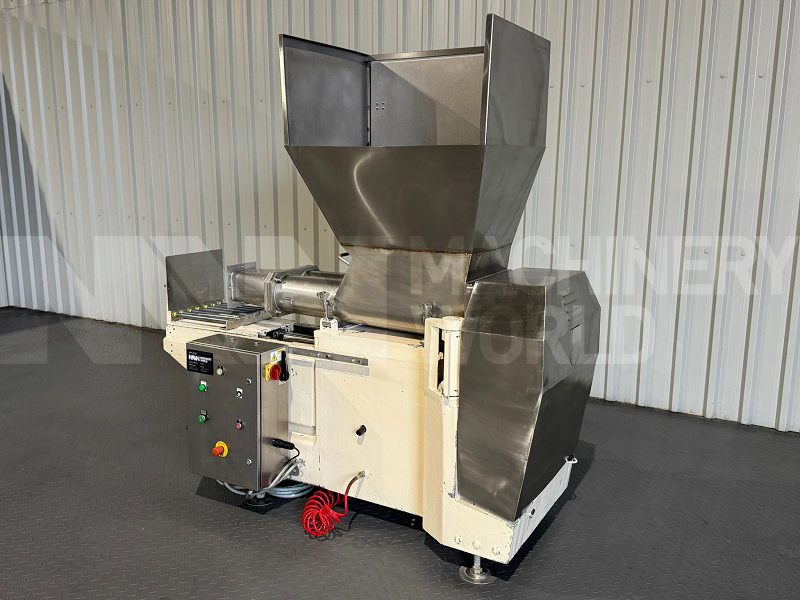

This is a used Simon Freres KM 1000 Constistock Bulk Butter Packer equipped with a Hopper and Screw mechanism. The Simon Freres KM 1000 Constistock Bulk Butter Packer is designed to efficiently bulk pack Butter or Margarine into Plastic Lines Cardboard Carton Boxes upto 25kg (Adjustable Volume) with an output capacity of up to 5,000 kg per hour. It features an integrated Hopper and a Twin Screw Auger for optimal product handling. This semi-automatic carton box filler is specifically engineered for the bulk packaging of butter, ensuring that there is no kneading effect or damage to the product's texture. The extruder is constructed from stainless steel and includes two stainless steel augers, along with a switch to halt the filling process. Currently held as stock at Machinery World Ltd (Wolvey), this machine is available for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.   Please note: The video is provided for demonstration purposes only and is intended to illustrate the general operation and functionality of this type of machine. The footage shown does not depict the exact machine offered for sale and should be used as a representative example only.

Specification

• Manufacturer: Simon Freres, France
• Model: KM 1000 Constistock
• Type: Bulk Butter Margarine Filler Plastic Lines Cardboard Carton Packer
• Fill Volume: Upto 25kg
• Throughput:
• Approx.  5,000kg/hour @ 25kg blocks
• Approx. 2,000kg/hour @ 10kg blocks
• Material of Construction: Stainless Steel Contact Parts
• Outer Finish: Painted Enamel Finish
• Gravity Roller Outfeed Conveyor
• Comes with Tipping Side Table
• Compressed Air Requirement: 200 to 600 LPH @ 6 to 8 kg per cm sq.
• Electrical Power: 4HP, 3-ph, 50Hz

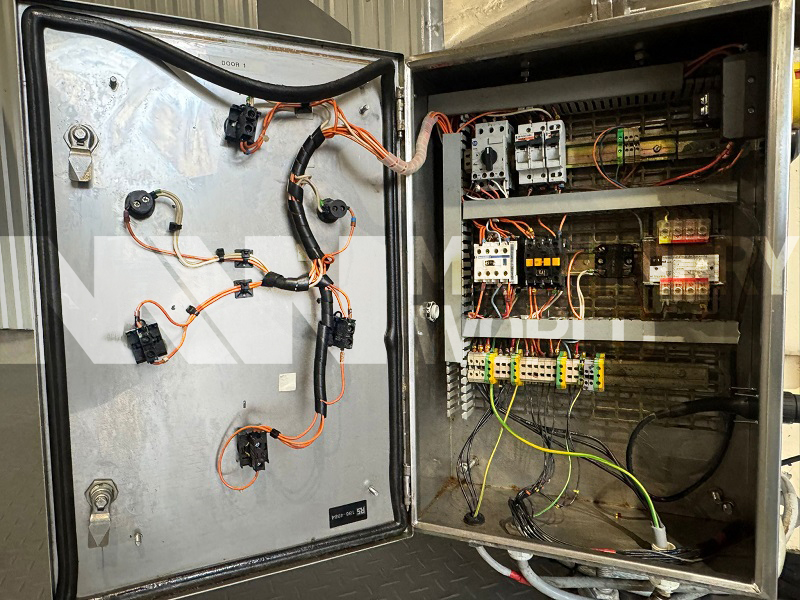

• Controls: Fully Integrated Control Panel
• Instruction Manual supplied

Dimensions

• Length: 1100mm
• Width: 1000mm
• Height: 2700mm
• Weight: Approx 650kg

Country of Manufacture

France
