500 LPH Alfa Laval H4-PSG Cream Cooler Heat Exchanger Skid (Year 2024)

Description

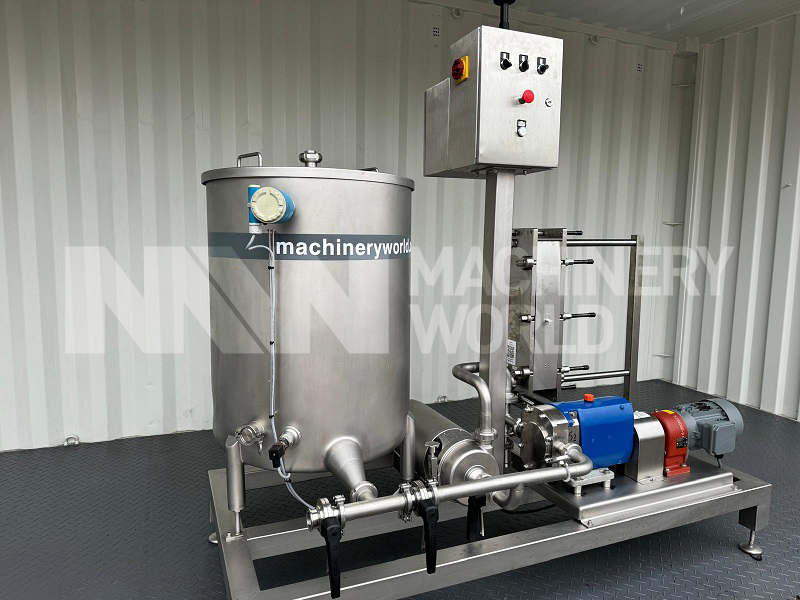

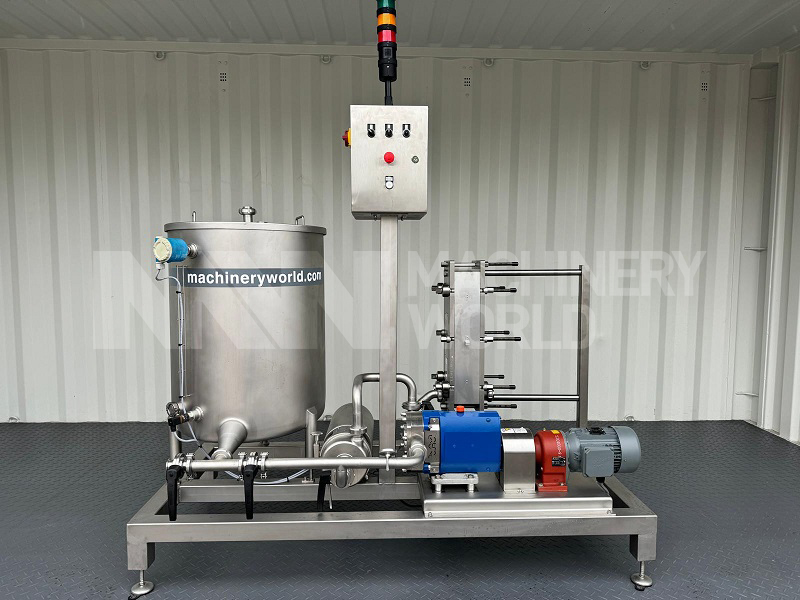

This is a Alfa Laval H4-PSG Cream Cooler Plate Heat Exchanger, which is skid mounted and has a capacity of 500 LPH of Cream, cooling Cream from 50 deg C to 4 deg C, in single pass. This Skid mounted Tetra Pak H4-PSG Plate Heat Exchanger also includes 200L Stainless Steel Balance Tank with High & Low Level Probes, Alfa Laval SRU3/027/LS Positive Lobe Pump for Cream with has a maximum capacity of approx 1,000 LPH and driven by Frequency Controlled Inverter for Speed Control to match the capacity of the Alfa Laval H4-PSD Plate Heat Exchanger. Also included on the Cream Cooler Skid are 7 inch APV Puma Pump and fully Integrated Manual Control Panel with ABB Frequency Controlled Inverter.

Specification

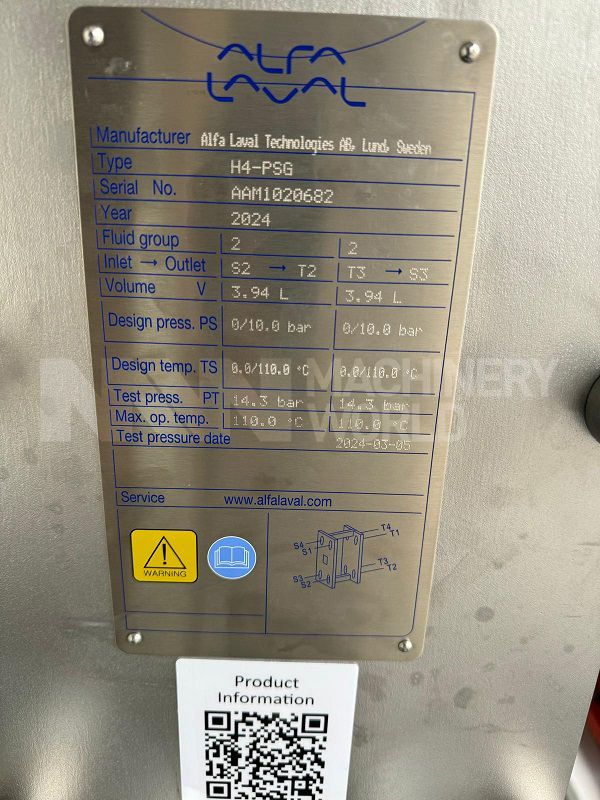

Plate Heat Exchanger:

• Make: Alfa Laval Technologies Sweden
• Model: Plate Heat Exchanger
• Function: Cream Cooler Plate Heat Exchanger
• Type: H4-PSG
• Serial Number: AAM1020682
• Year of Manufacture: 2024
• Capacity: Approx 500 LPH
• Cooling Temperature: 50 deg C to 4 deg C
• Volume: 3.94L

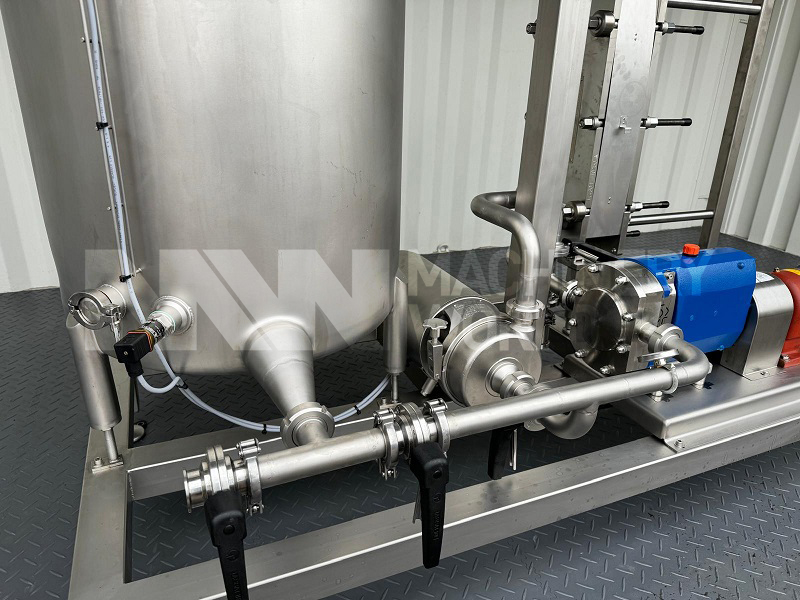

Positive Lobe Pump:

• Make: Alfa Laval Eastbourne Ltd, England
• Model: Positive Lobe Pump
• Function: Cream Pump
• Pump Type: SRU3/027/LS
• Serial Number: E231087
• Year of Manufacture: 2020
• Size: 1.5 inch
• Pump Speed: 99 RPM
• Pump Capacity:
• Frequency Controlled Inverter for Speed Control

Centrifugal Pump:

• Make: APV, England
• Model: Centrifugal Pump
• Function: Clean-In-Place (CIP) Pump
• Type: 7" x 1.5" x 1.5" (7 inch Pump)
• Motor Power: 1.5kw, 3-Ph & 50Hz

Balance Tank:

• Model: Holding Tank
• Function: Cream Holding Balance Tank
• Constriction: 304 Grade Stainless Steel
• Comes with High Level & Low Level Probes, Top Lid with Integrated CIP Spray Head.

Additional Details:

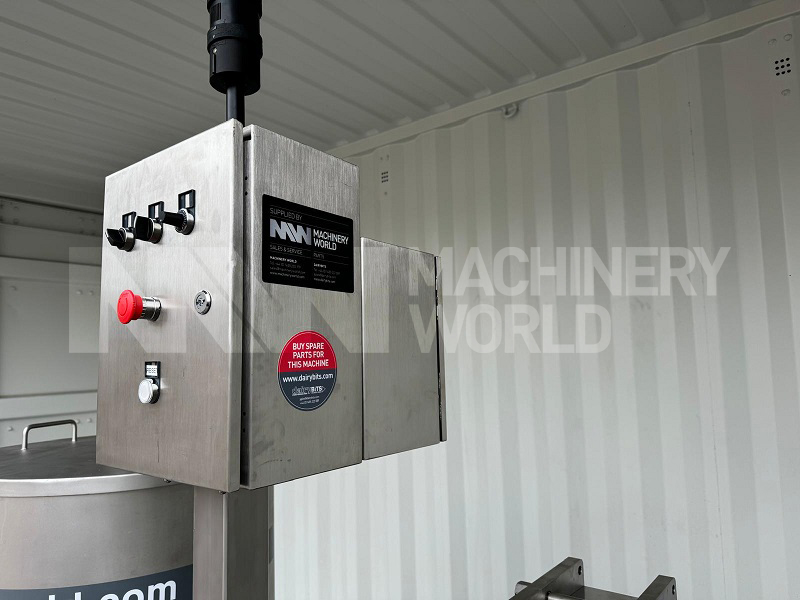

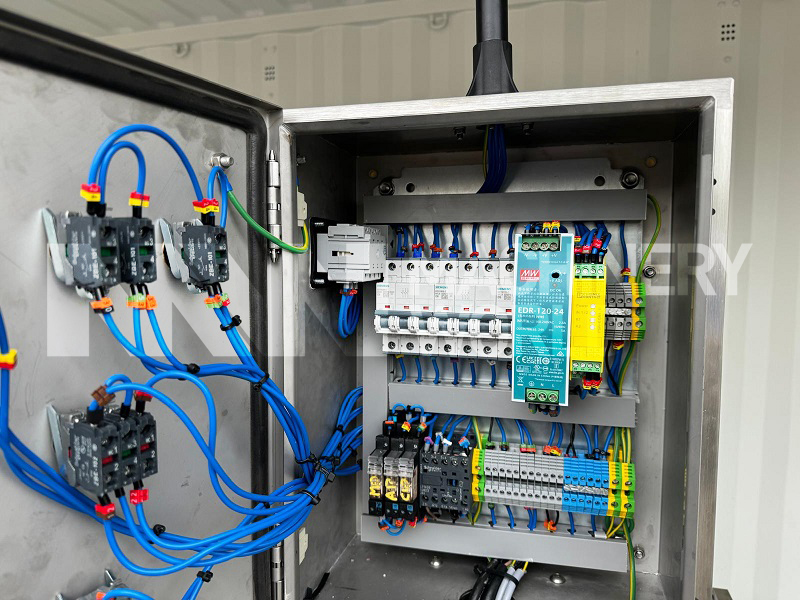

• Cream Cooler comes completely Skid Mounted with fully Integrated Control Panel with ABB Frequency Controlled Inverter for Cream Pump.

Dimensions

• Length: 1890mm
• Width: 1104mm
• Height: 1720mm

Country of Manufacture

United Kingdom/Sweden
