7,000 LPH APV Gaulin 55-3,0 P (200 Bar) Homogeniser

Description

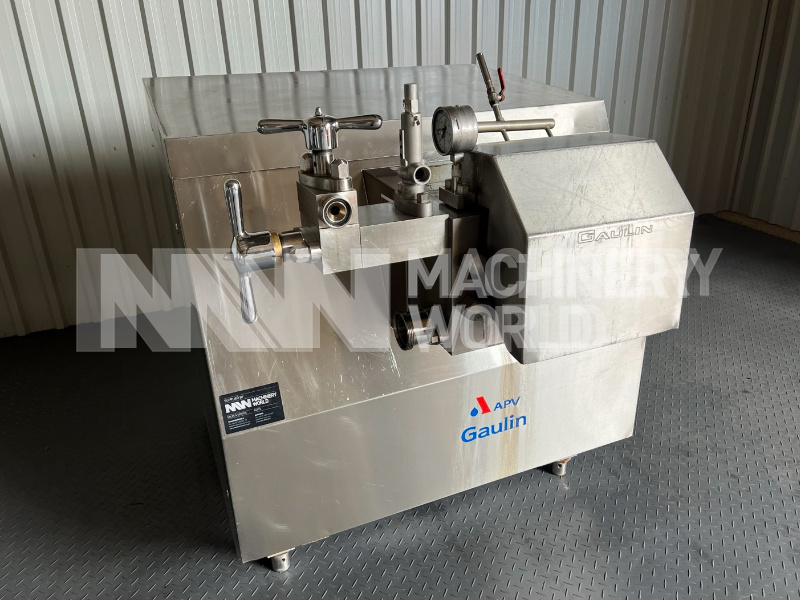

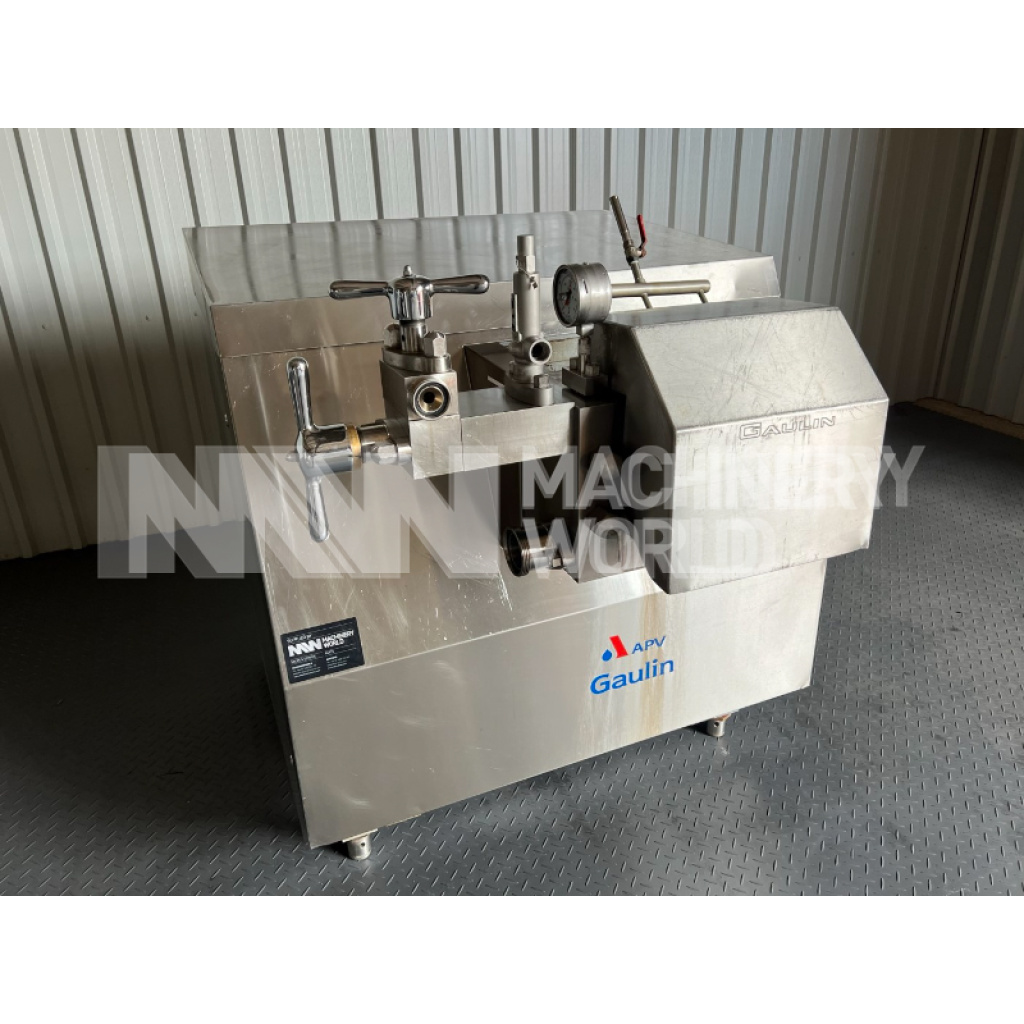

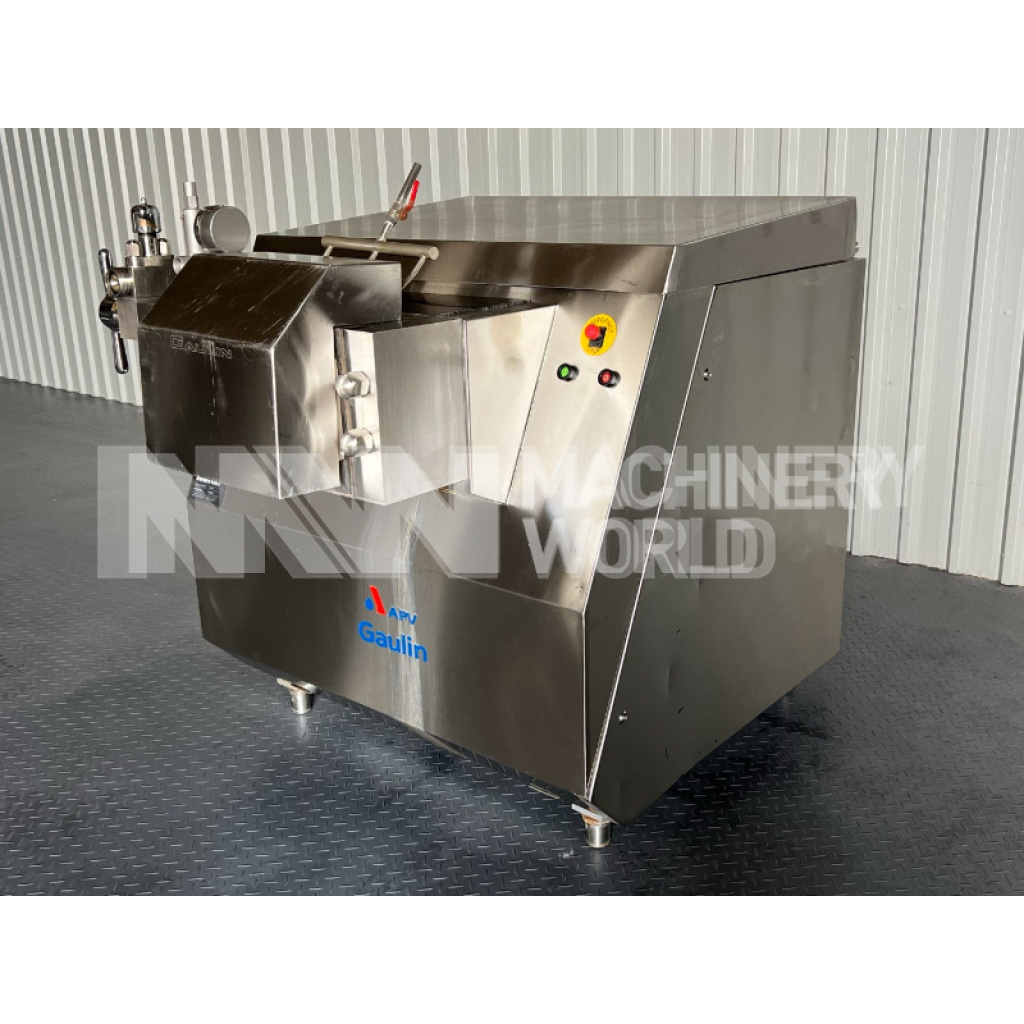

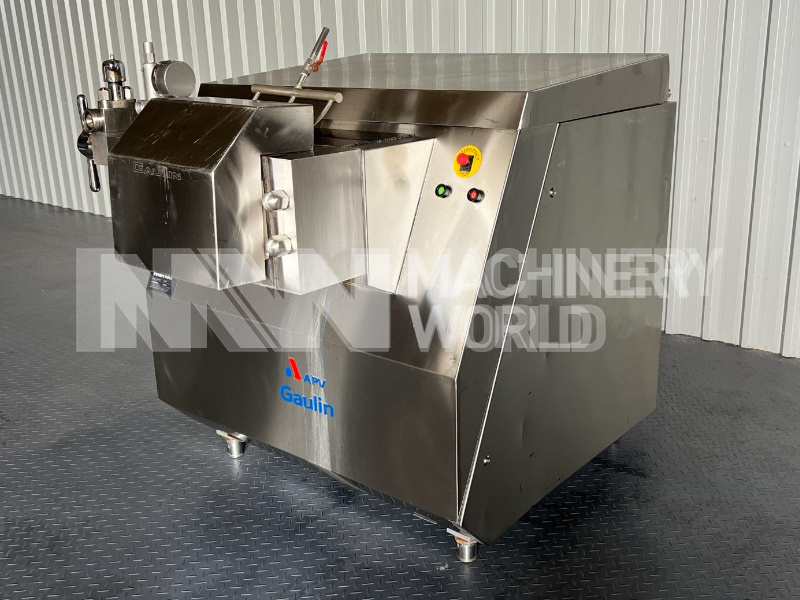

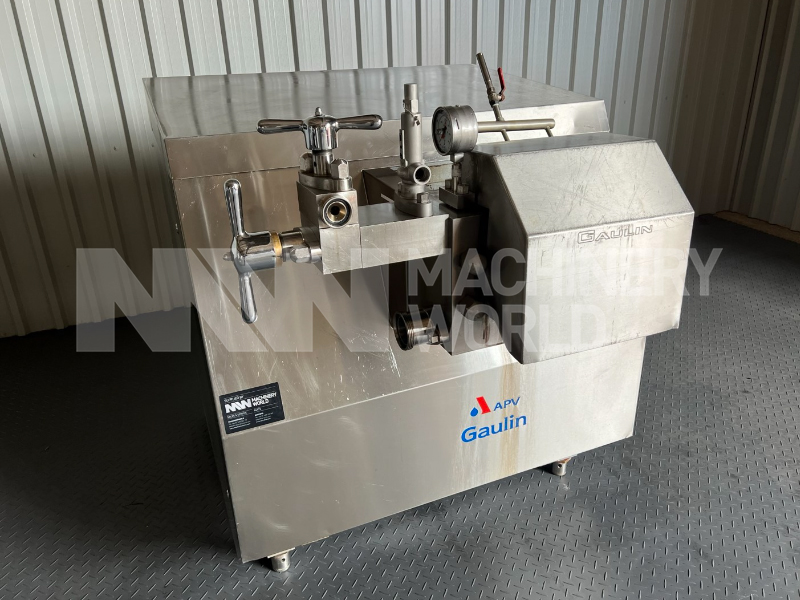

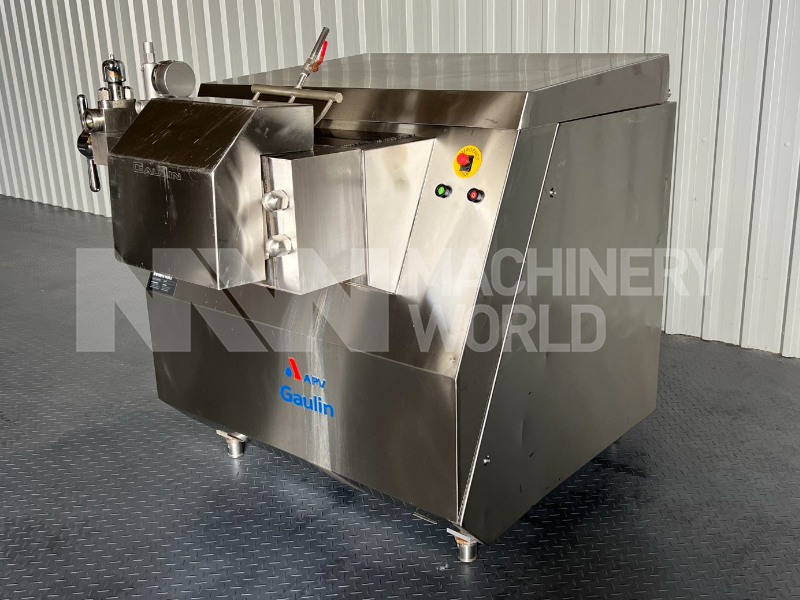

This is a used APV Gaulin 55 3,0P High Pressure Homogeniser. This APV Gaulin 55 3,0P High Pressure Homogeniser has a working capacity of approx 7,000 LPH and capable of working at a maximum rated pressure of 200 Bar (3000 PSI). This APV Gaulin 55 3,0P High Pressure Homogeniser comes with 2 Stage Homogeniser Valve assembly and comes with 3x plungers. This APV Gaulin 55 3,0P High Pressure Homogeniser was previously used for milk production.

Currently held as stock, this APV Gaulin 55 3,0P High Pressure Homogeniser is available for immediate sale.

Features

• Manufacturer: APV Gaulin GmbH, Germany
• Type: Gaulin 55-3,0 P

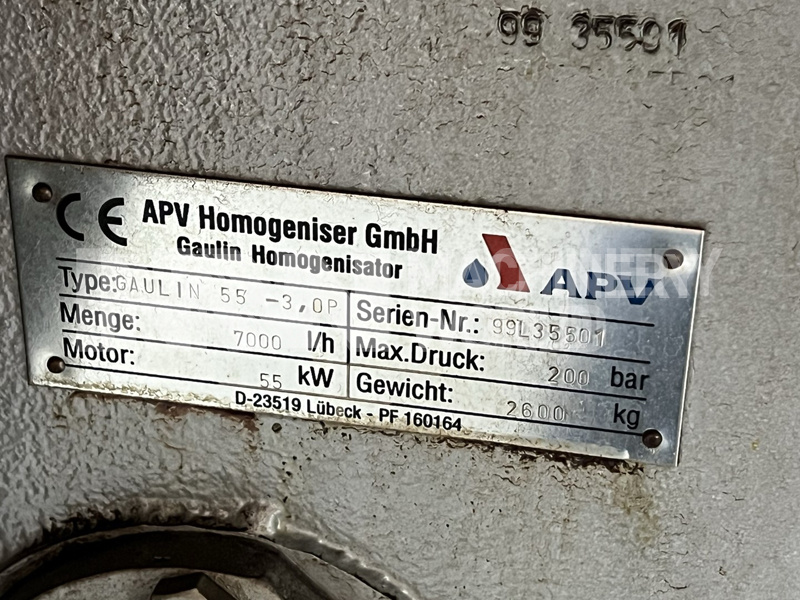

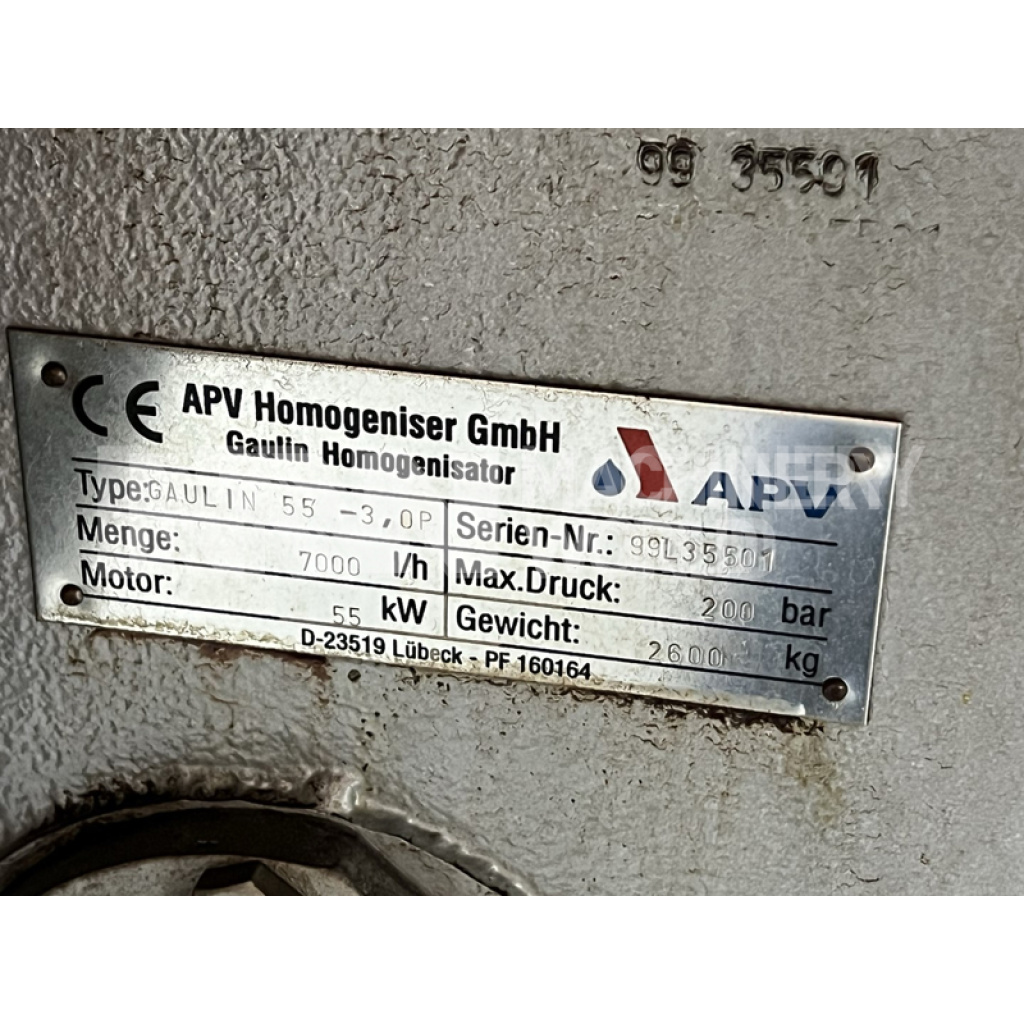

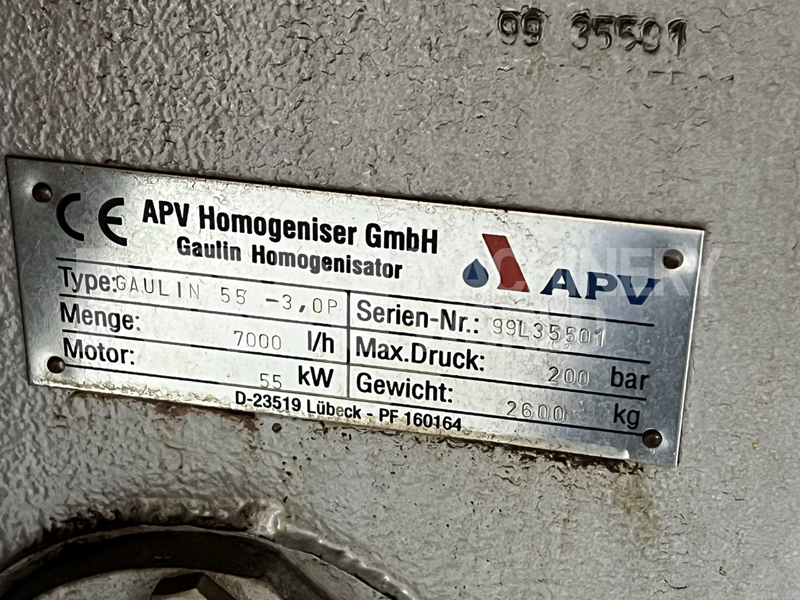

• Serial Number: 99L35501
• Function: High Pressure Homogeniser Pump
• Capacity: 7000 Litres/Hour

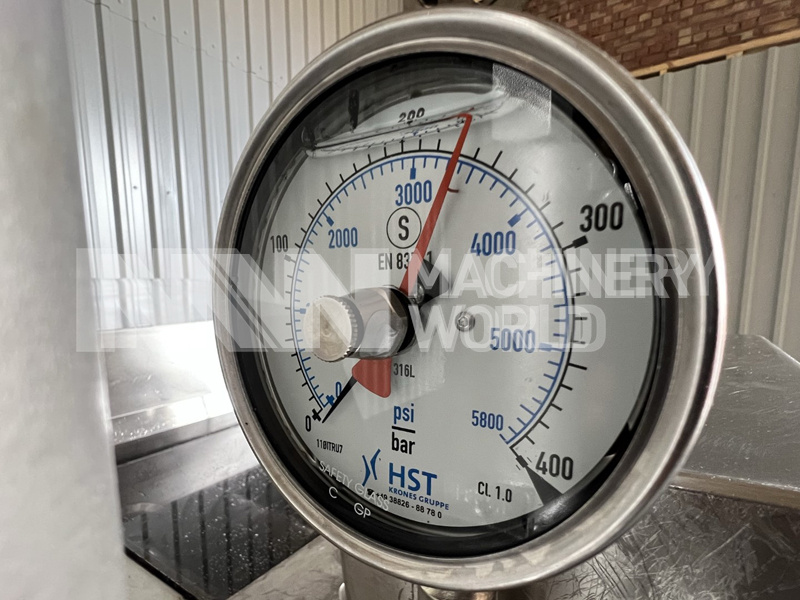

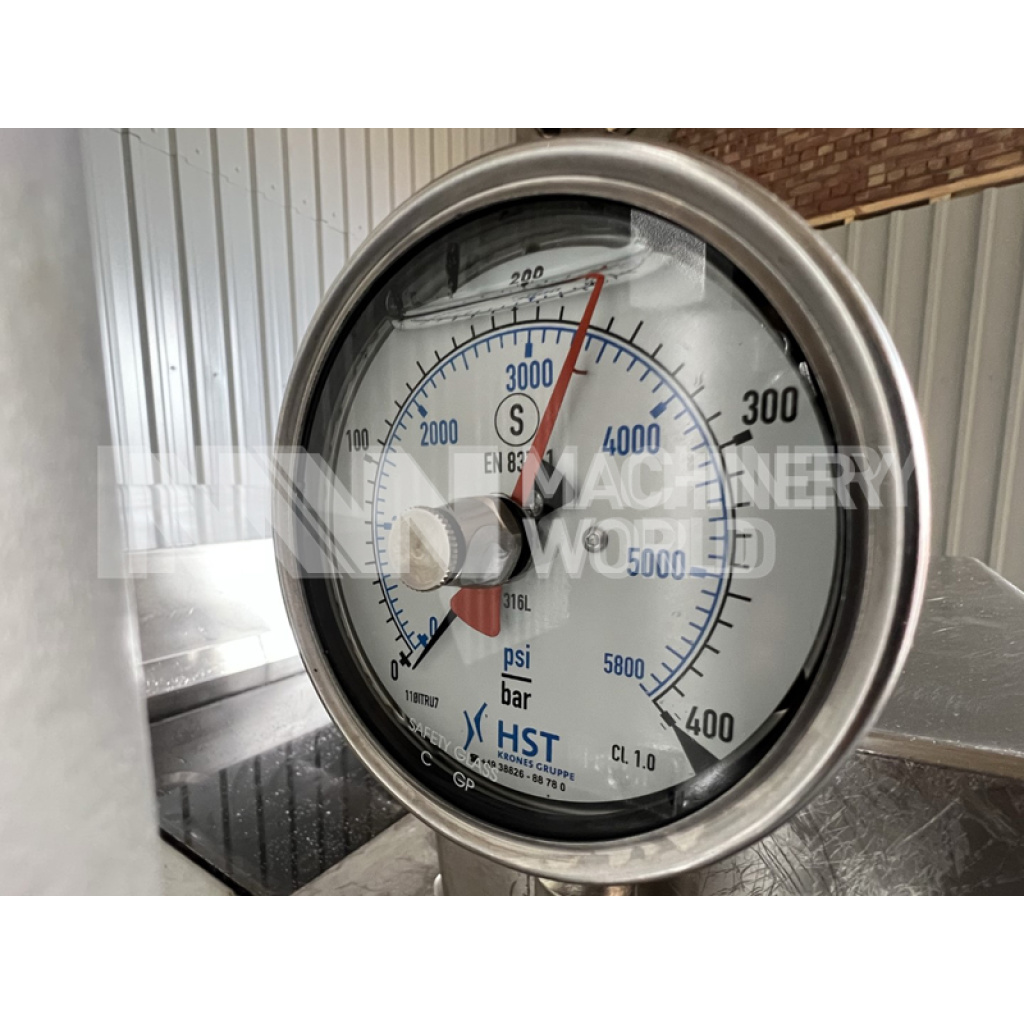

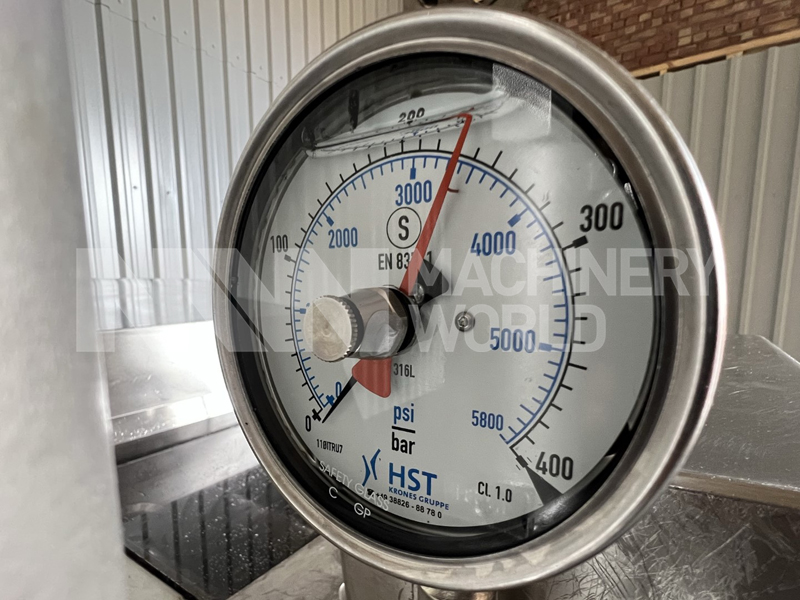

• Max. working pressure: 200 bar (3,000 PSI)
• Operating Temperature: 85 deg C
• Valve Control: Manual

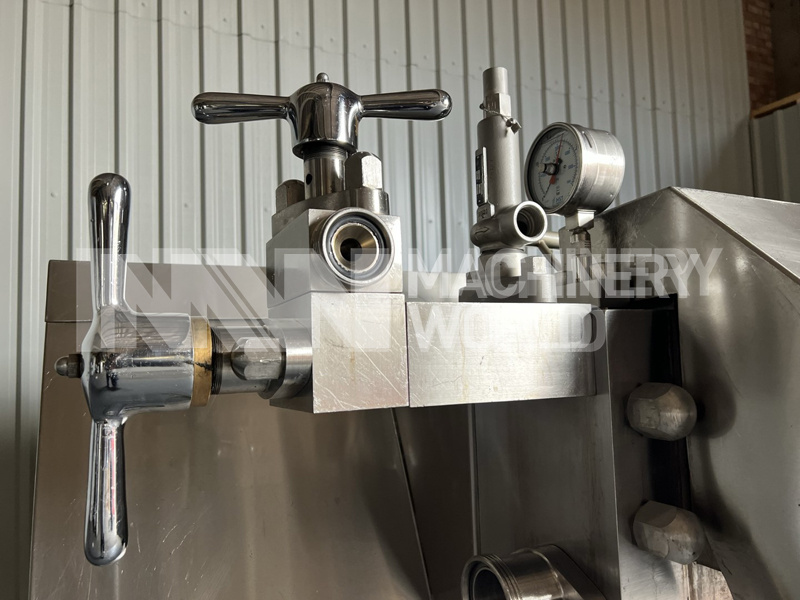

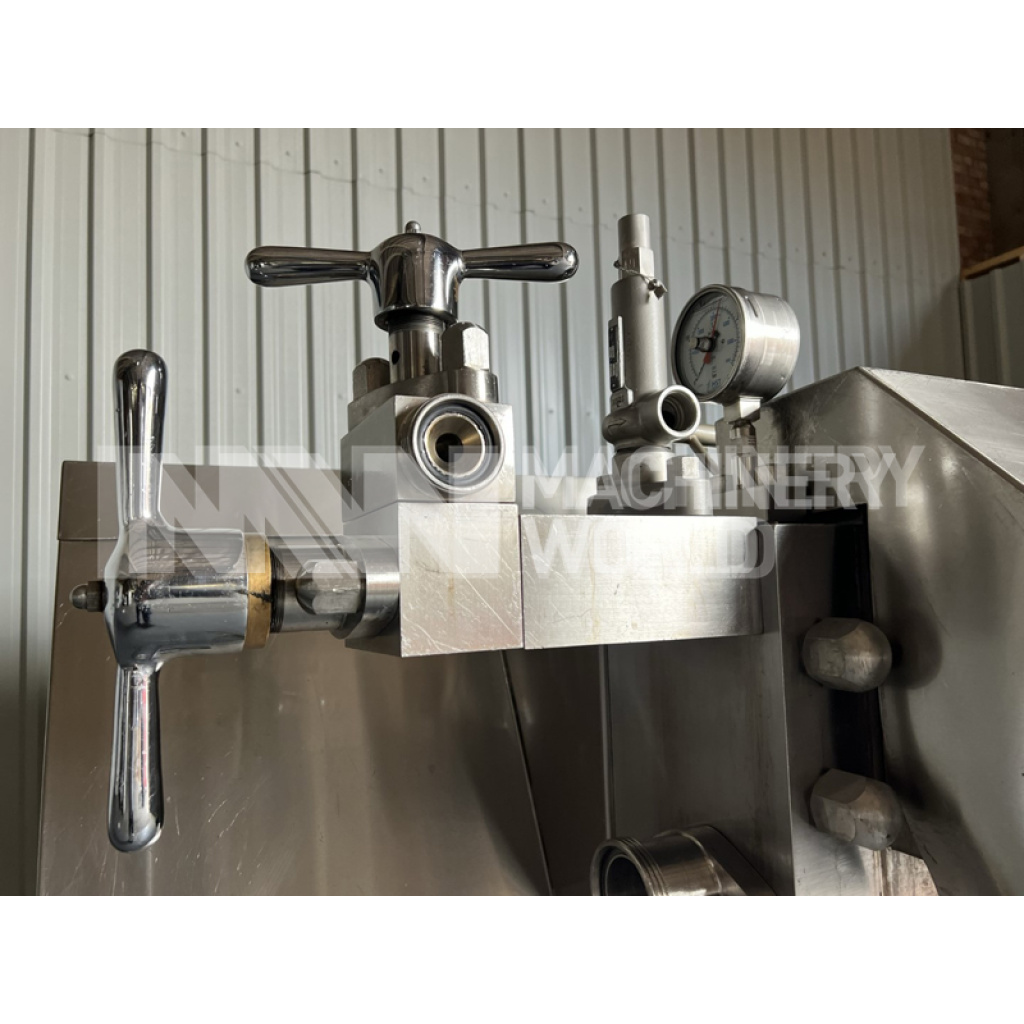

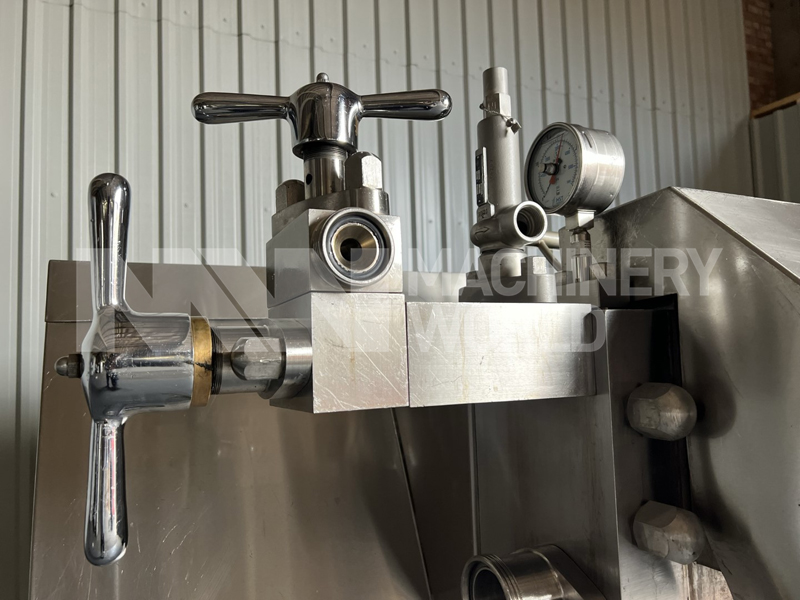

• Number of stages: 2-Stage
• Valve Type: Poppet Valve (Mushroom Type Valve)

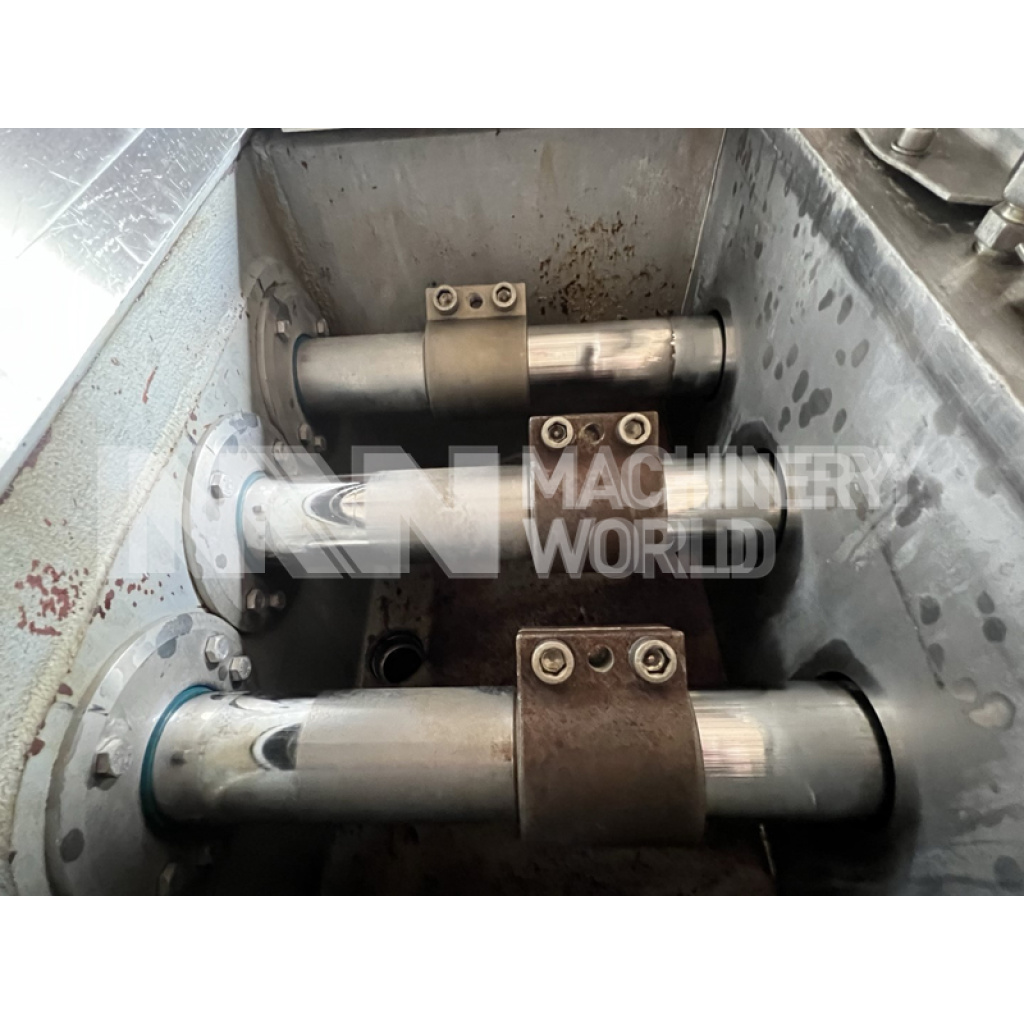

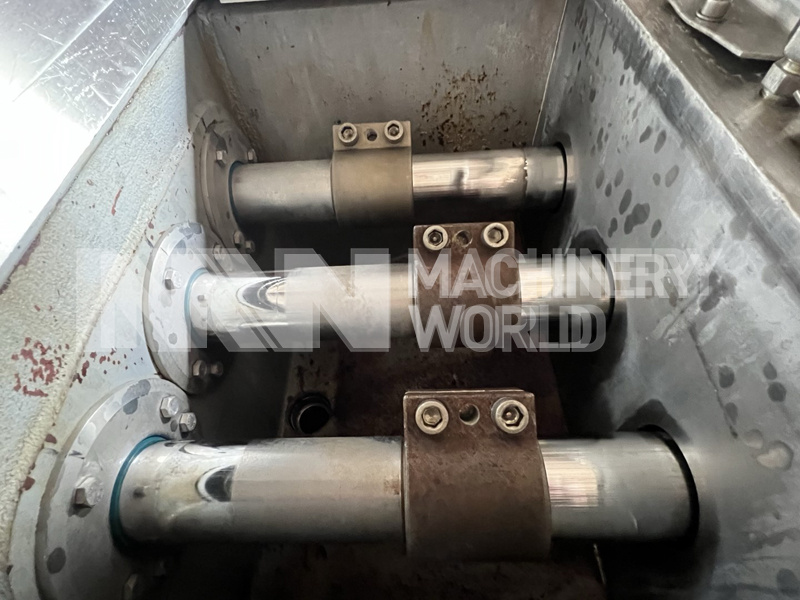

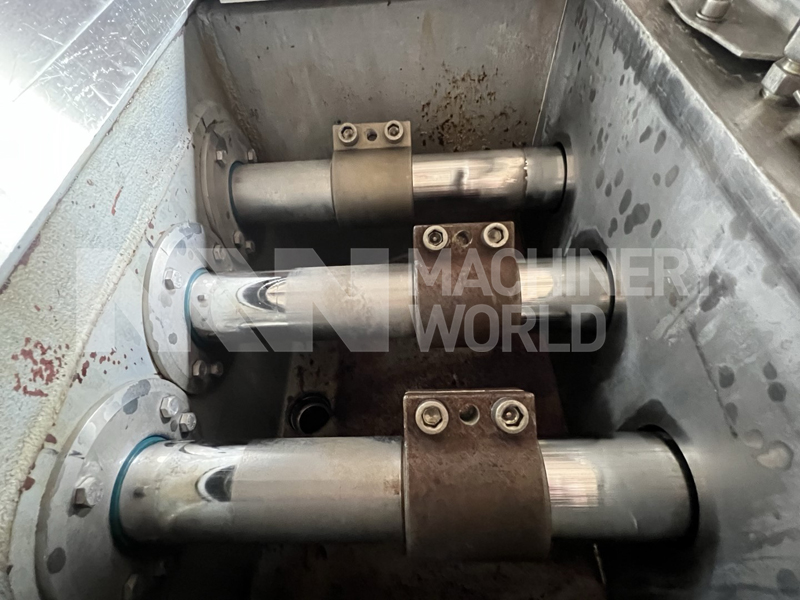

• Number of Pistons (Plungers): 3x Pistons/Plungers
• Piston/Plunger Diameter: 60mm
• Main Drive Motor Power: 55 kW
• Electrics: 400V / 3Phase / 50Hz
• Finish: Stainless steel covers

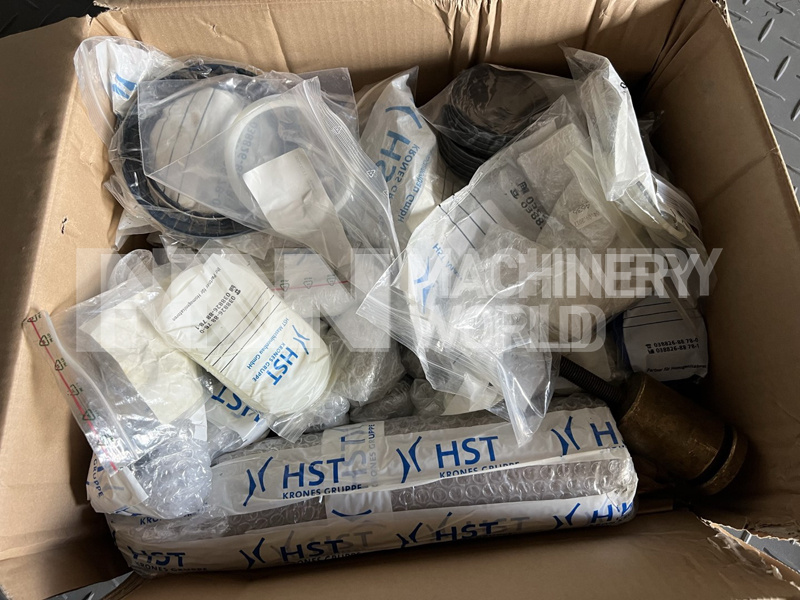

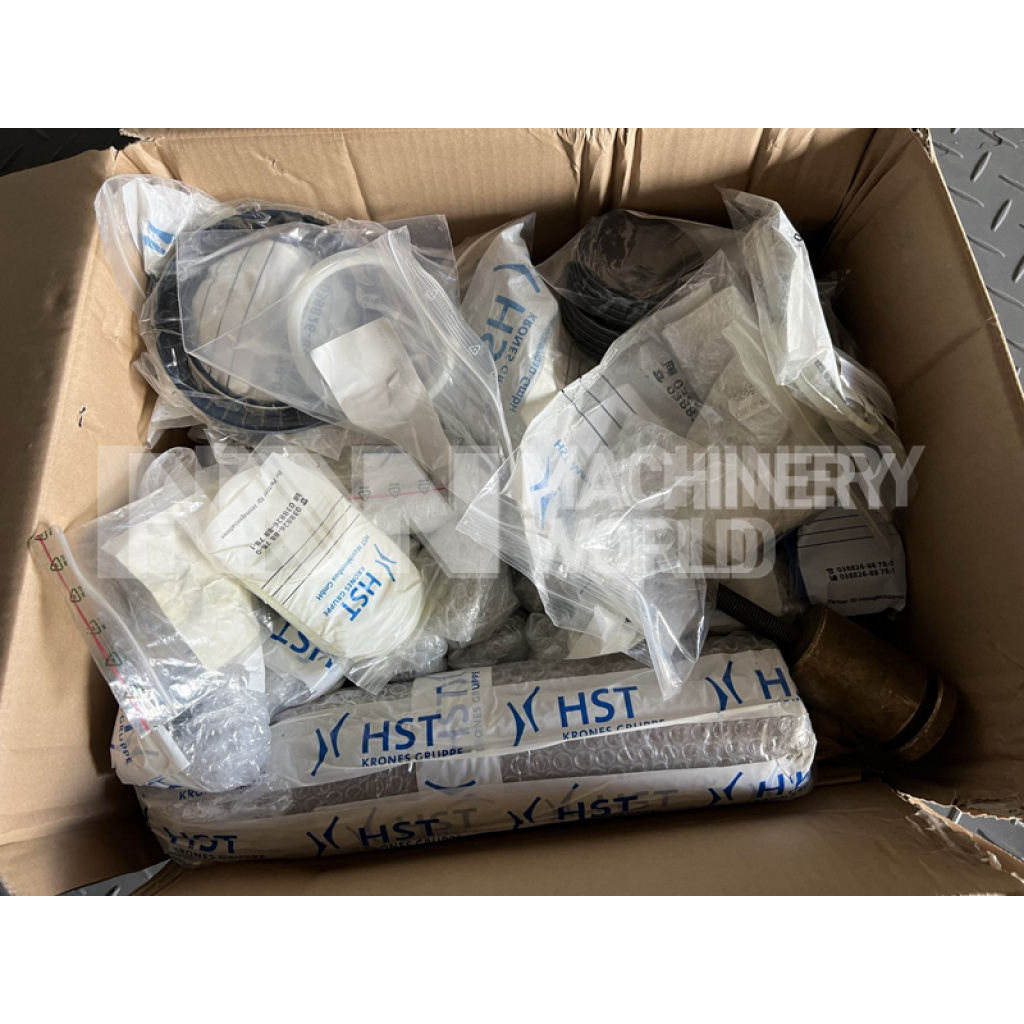

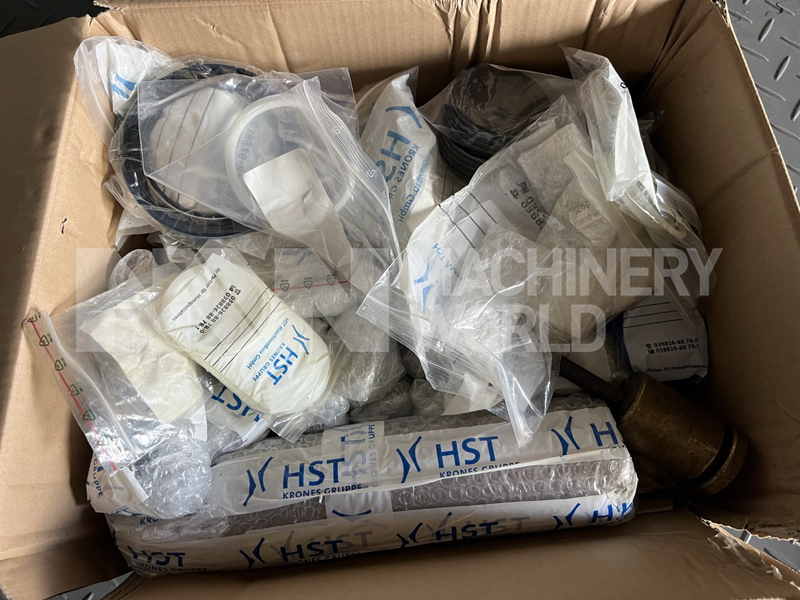

• Various Spares included (as photographed)
• Includes documentation
• Previous Use: Milk

Dimensions

• Depth: 1710mm
• Width: 1380mm
• Height: 1660mm
• Weight: Approx 2,600 kgs

Country of Manufacture

Germany
