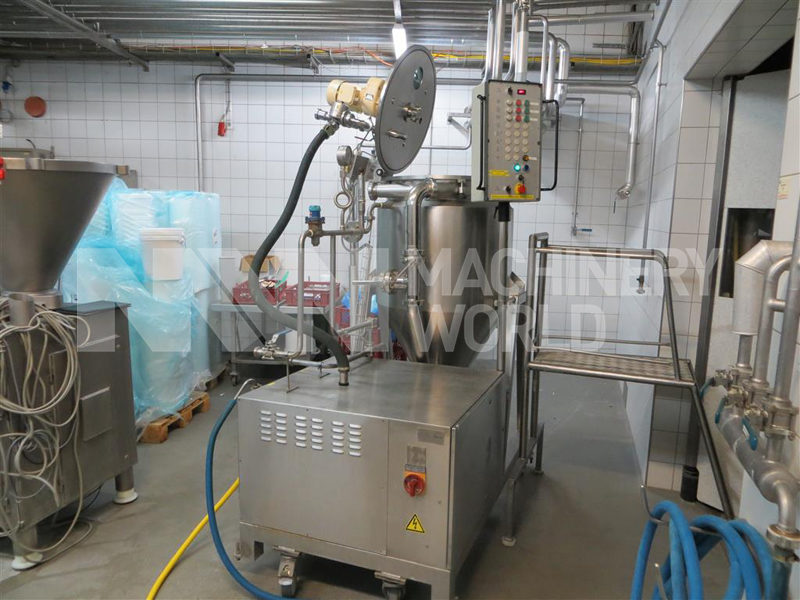

Fryma Delmix MZM / VK-300 Jacketed Universal Process Vessel

SKU: 7299 Category: Tag:
Description

The Fryma Koruma Delmix MZM/VK-300 is a vacuum mixing system. Products with various viscosities can be dissolved, mixed, dispersed and emulsified. At the beginning of the process, the vacuum pump is switched on and evacuates the process vessel. Liquids and dry products are added to the mixing chamber of the homogeniser under vacuum via the product inlets. The homogeniser is the core of the processing plant. The fast running homogeniser and stator system will disperse and homogenise the liquid and medium viscous products. The pumpingeffect of thehomogeniser feeds the product into the vessel via the circulation pipe. A slow-moving scraper stirrer with flexible scrapersrotates inside the vessel. The scraper-stirrer is responsible for turning over and mixing the product. The scraper blades move over the inner surface of the vessel wall. In this way, they prevent the product from adhering to thewall and improve the heat exchange. The product returns to the homogeniser from theconical vessel outlet. During this process, thevacuum pump evacuates the vessel andconstantly deaerates the product. After the vessel has been aerated, the final product is discharged into the circulation pipe via the 3-way valve.

Features
  • Manufacturer: Fryma Koruma
  • Model: MZM / VK-300
  • Function: Jacketed vacuum mixing process vessel
  • Total volume: 390 litre
  • Minimal volume: 60 litre
  • Serial number: 37602 / 00
  • Year of manufacture: 2000
  • Max. working temperature (Product zone): 100 degC
  • Max. working pressure (Product zone): -1 bar /0 bar
  • Max working pressure (Jacket): +2,5 bar
  • Volume (Jacket): 48 litre
  • Installed power: 21,7 kW
  • Electrics: 400V / 50 Hz / 3 Phase
  • Instruction manual included
Dimensions
  • Length:186 cms
  • Width:111 cms
  • Height:241 cms
  • Weight:910 kgs
Country of Manufacture

Switzerland
