Description

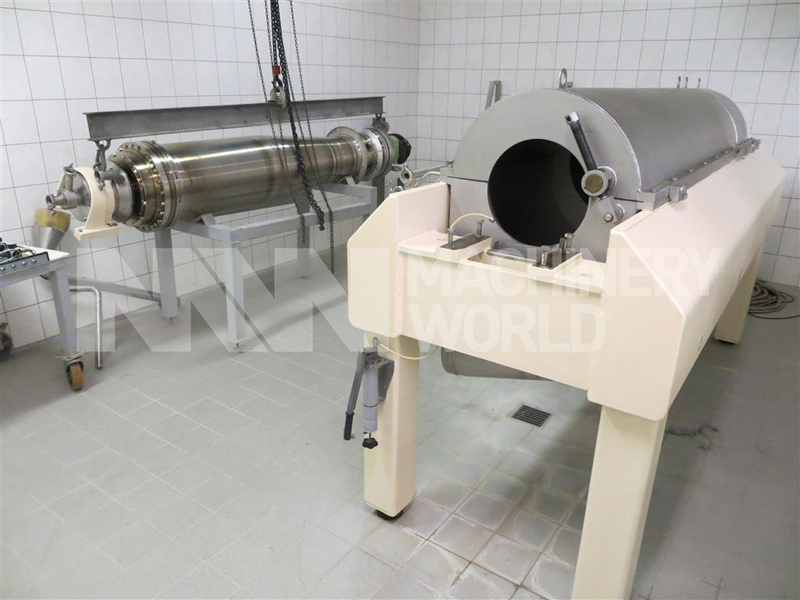

This decanter has been designed for the production of casein. The machine is completely CIP-cleanable. The liquid phase is discharged under pressure via a centripetal pump. The solids is discharged in an open system by gravity via a funnel. The product connections can be flanges according to DIN 2633 or connections according to ISO 2852 (TriClamp). The machine is driven by a frequency controlled 3-phase AC motor via V-belts. The differential speed is torque controlled by a 2-gear drive. All product-contacting parts are made of stainless steel.
Features
- Manufacturer: GEA Westfalia
- Model: CB 458-01-32
- Function: Decanter
- Serial number: 8002-055
- Year of manufacture: 2001
- Casein capacity: 28,000 litres/hour
- Solids capacity: 2,400 kg/hour
- Feed pressure: 1.0 bar
- Useful discharge pressure: 2.0 bar
- Energy requirement:45 kW
- Electrics: 380V / 50 hz /Three phase
- Complete with control panel, tools, instruction manual and spare parts.
Dimensions
- Length:382 cms
- Width:111 cms
- Height:170 cms
- Weight:3920 kgs
Country of Manufacture
Germany
