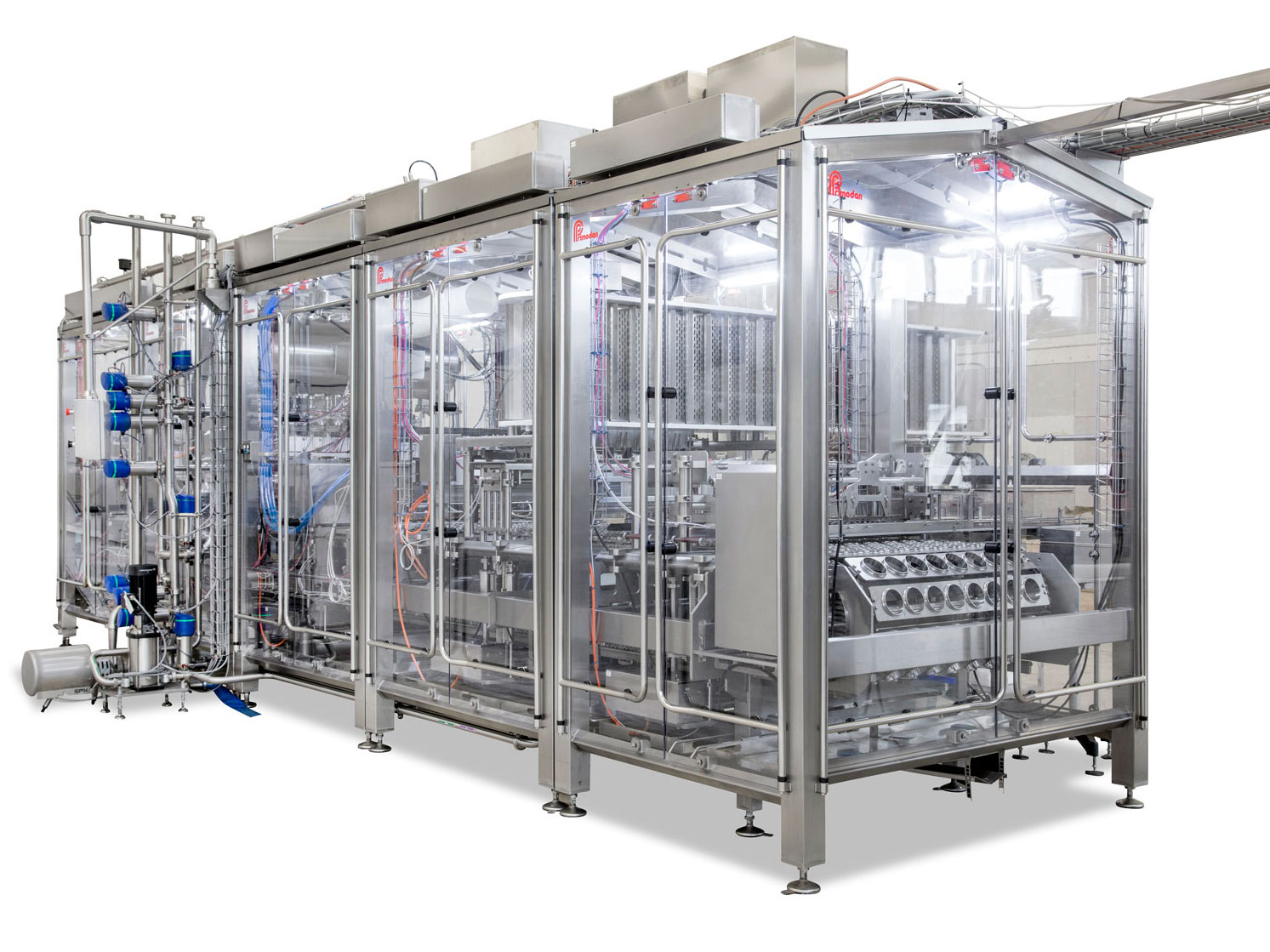

Primodan Moduline Linear Filling Machine

Cup filling with a capacity from 6,000 – 24,000 cups/hour

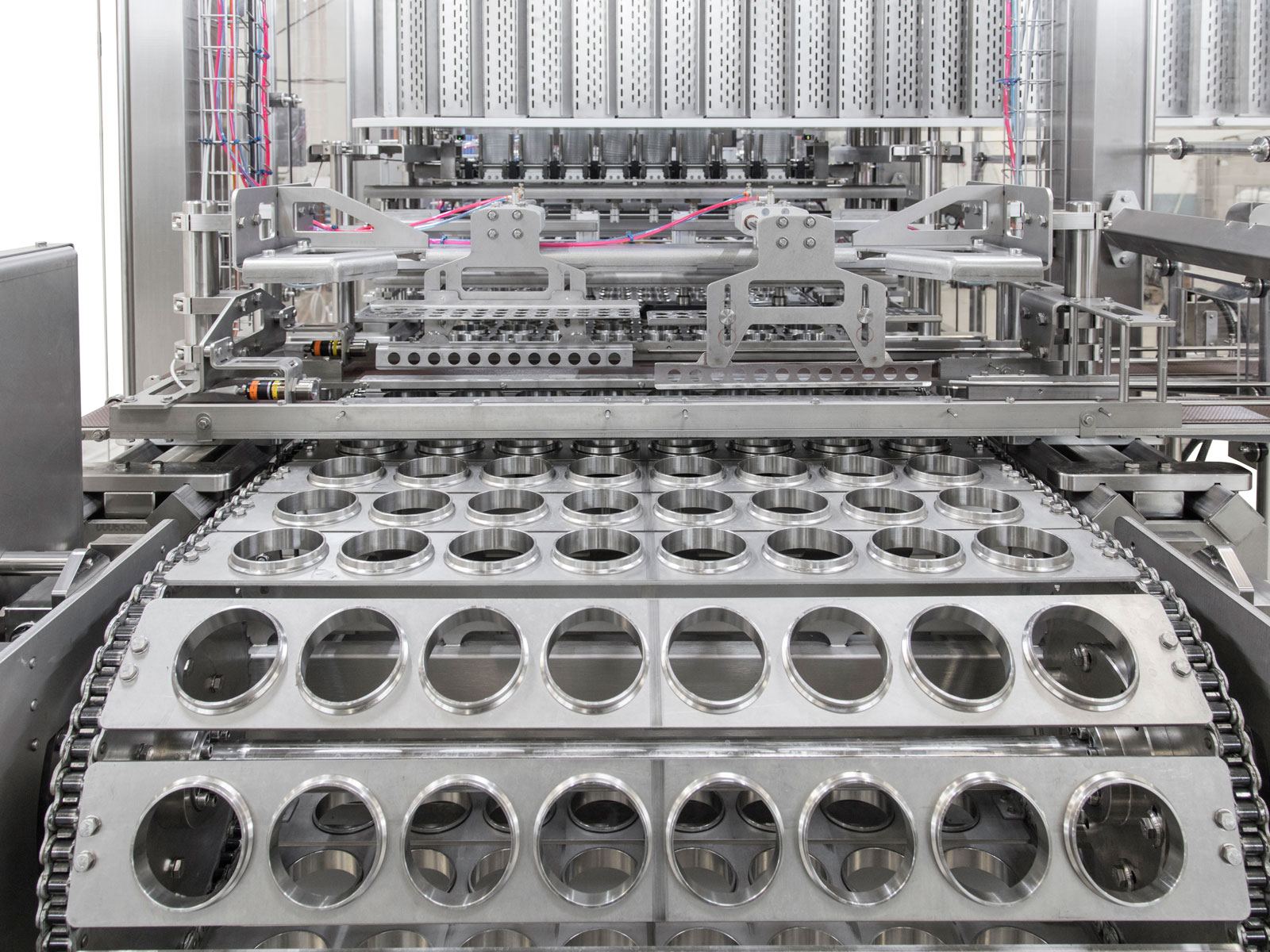

The Moduline is designed with an open frame design allowing easy service access and cleaning.

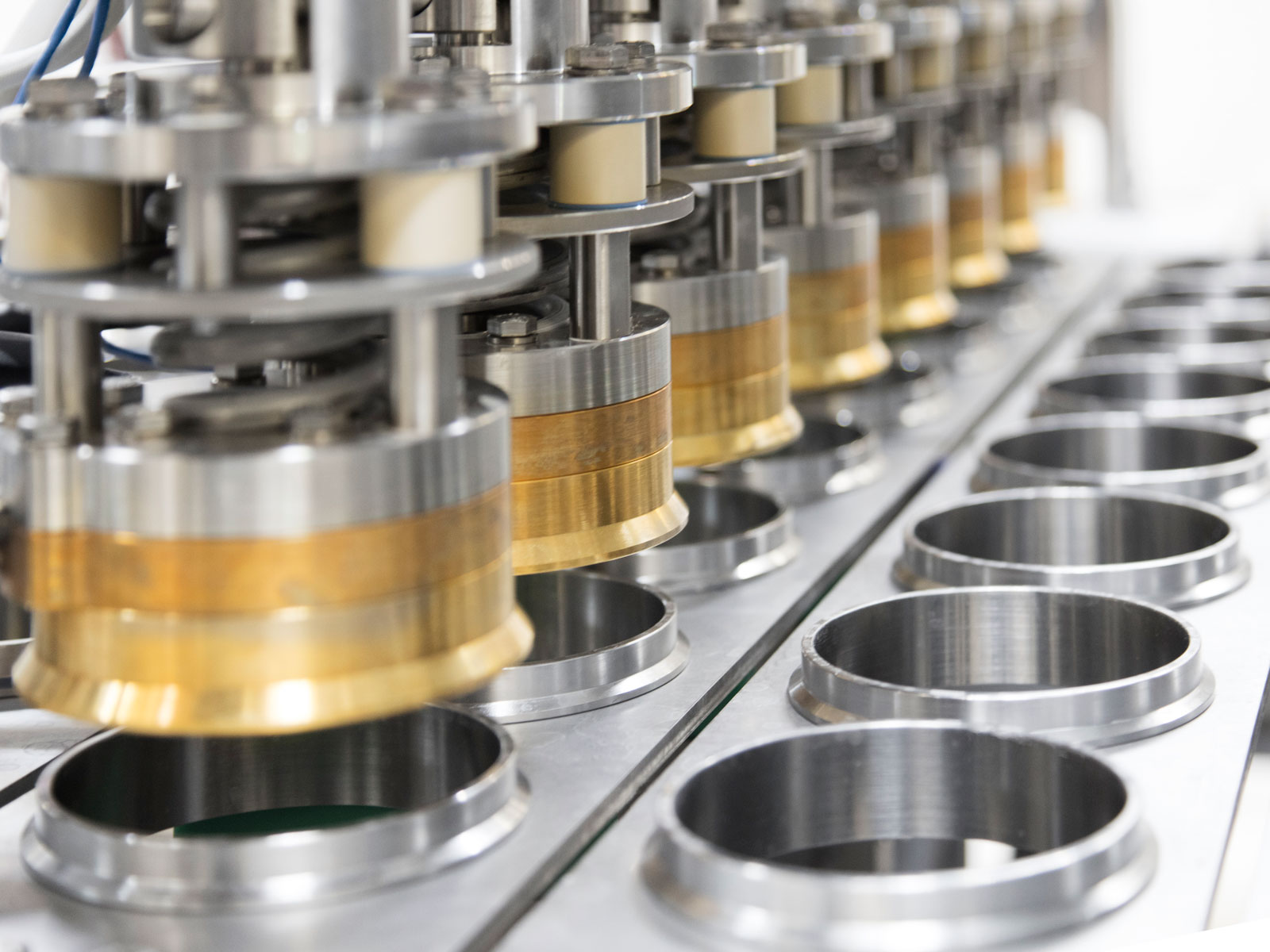

It is suitable for the filling of liquid and semiliquid products. All parts in contact with the products as well as the support frame are made from stainless materials. The frame is designed in modules for the client to have the possibility for future implementation of additional features.

Depending upon the capacity desired and the size and shape of the containers to be filled, the MODULINE machines are available with 6 to 12 rows – reaching capacities up to. 24,000 cups/hour. The MODULINE is as standard equipped with Siemens PLC and servo motors, HEPA filter in the filling section, lamella/cassette flushing, central lubrication and cup/snap-on lid buffers.

The Moduline is a module-based filling machine that will give the client endless possibilities to design and extend the machine depending on the ever-changing demands from the market.

Concept

The filling machine that keeps on fulfilling the wishes of even the most demanding marketing department

Flexible

There are two main advantages with the linear filling system. Firstly high capacity, and secondly space for a number of options, which more and more customers demand.

Fast changeover time
Today there is increasing demand for running several different kinds of products and formats in the same machine. It is therefore crucial that the changeover time from one product or format to another is minimized. The Primodan filling machines are delivered with recipe-controlled height changes and the machine can be equipped with both sizes of cassettes that give the possibility for running two different formats in one machine. For 3 or more formats we recommend the rotary machines – Like our Rot-O-Min.

Versatile

It is easy to fit in all the features you may wish for in the Moduline. You can have several filling systems for multiple layer filling, check weighing, Vision control, UV-C treatment, etc. we just add the necessary modules to the machine. Either from the beginning or later on.

Up to 24,000 units/hour

The MODULINE can be designed for a variety of capacities, 6–8-10-12 rows, giving capacities up to 24,000 units/hour.

Specifications and options

Technical

Capacity: up to 24,000 units/hour
Cup dimensions: ø75 mm and ø95 mm (for other formats we are also ready to assist you)
Pneumatic requirement: minimum 6 bar
Electrical consumption: 1.5 – 8.0 kW
Materials: stainless steel / ionized aluminum

Standard:

Siemens PLC and Servos
HEPA filter
Central lubrication
Flushing of lamellas/Cassettes
CE certificate
EU norm
Pack ML automation standard

Modules

Module I: Infeed Module
Optional equipment for this module
• Ion treatment followed by dust removal by suction

Module II: Main Dosing/ Pre-filler/ Post Filler Module
Optional equipment for this module
• UV-C -Treatment of the cups
• SIP
• Feedback control from Checkweigher

Module III: Dosing Module with just in time inline mixer
Optional equipment
• UV-C -Treatment of the cups
• SIP
• Working with more than one fruit tank/drum – for even faster changeovers
• Feedback control from Checkweigher

Module IV: Sealing Module
Optional equipment
• Primoreels including UV-C treatment of the lids prior to dispensing
• UV-C of die-cut lids
• Seal check
• Ink jet sled for date marking

Module V: Capping Module

Module VI: UP/OUT Module
Optional equipment
• Manual QA table

Module VII: Moduflex
This module is a standard module that can be inserted anywhere on the line and equipped with tailor-made solutions – engineered for individual clients.
Examples could be:
• Dry food dosing unit
• Pulsed light sterilization of cups
• Roll stock foil unwinding and sealing system
