Robopac Startape 50M Case Taper (2014) with Robopac Starbox 50.1 Semi Auto Carton Erector (2015)

SOLD - SOLD - SOLD - SOLD - SOLD

Add to quote
SKU: 21760 Categories: , , , ,
Description

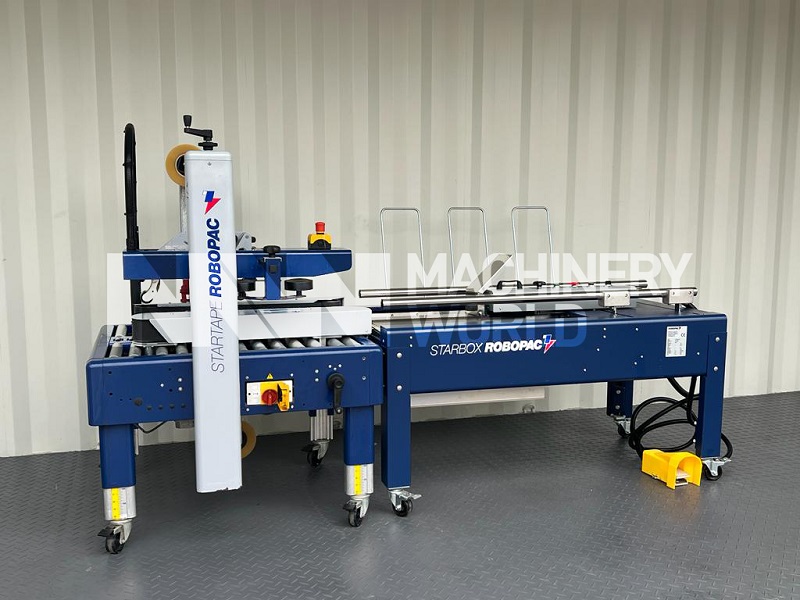

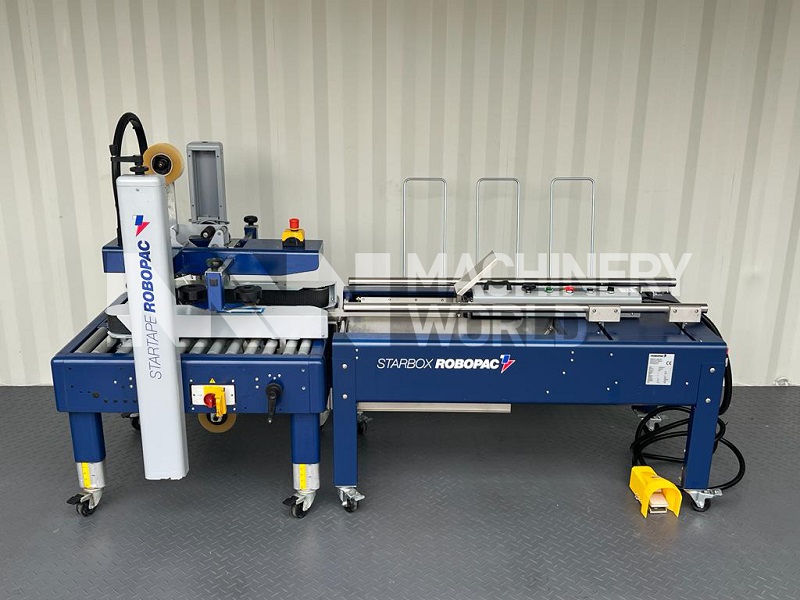

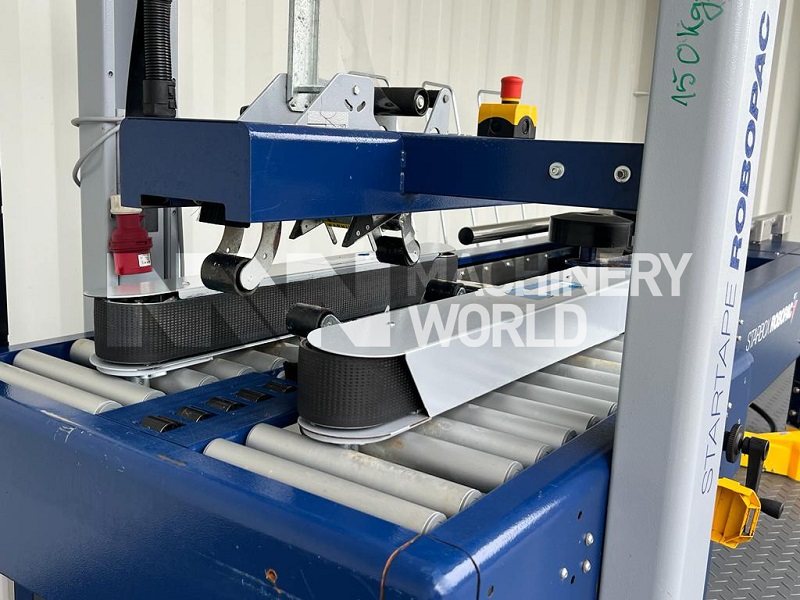

This is a used Robopac Startape 50M Case Taper with Robopac Starbox 50.1 Semi Automatic Carton Erector (Case Erector). Robopac Startape 50M Case Taping machine comes with Side Belt Drive for driving the fixed format Cardboard Box and has Top & Bottom Sealer. This Robopac 50M Case Taping machine has the option to manually adjust the top sealer to suit various box heights, upto a maximum of 500mm high boxes and maximum box weight of upto 50kg. Robopac Starbox 50.1 is a Semi Automatic Box Carton Erecting machine is mobile mounted on Caster Wheels and works with Robopac Startape 50M Case Taper Taping machine. This Robopac Startape 50M Case Taper with Robopac Starbox 50.1 Semi Automatic Carton Erector Box Erecting machine was previously used at a major European dairy processing facility and available for immediate sale.

Specification

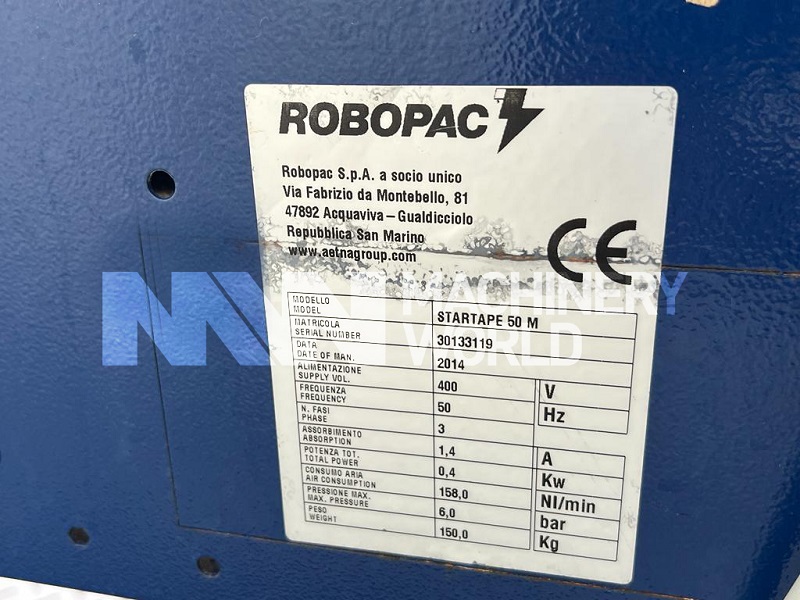

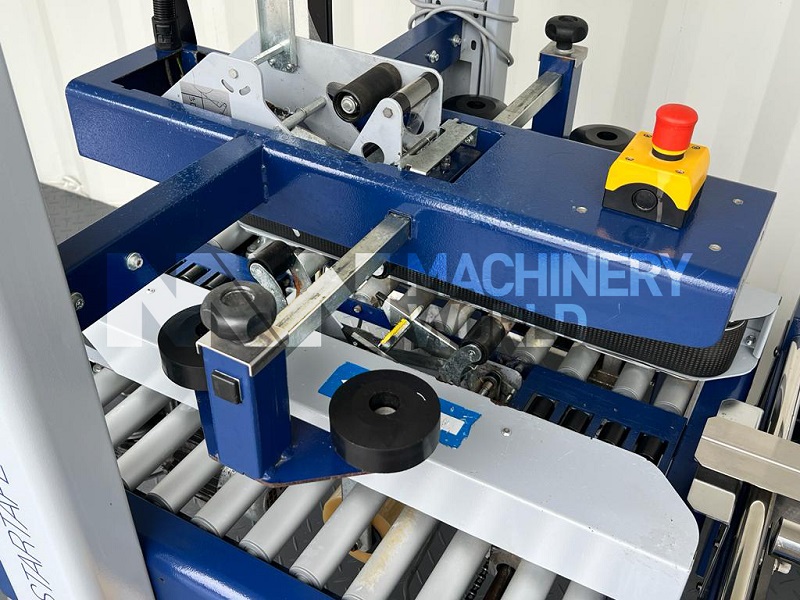

Robopac Startape 50M Case Taper

  • Make: Robopac S.p.A (Aetna Group)
  • Model: STARTAPE 50M
  • Serial Number: 30133119
  • Year of Manufacture: 2014
  • Height Conveyor Belt: 50mm (Std) to 75mm (Opt)
  • Infeed Speed: 22 m/min
  • Tape Width: 50mm to 75mm

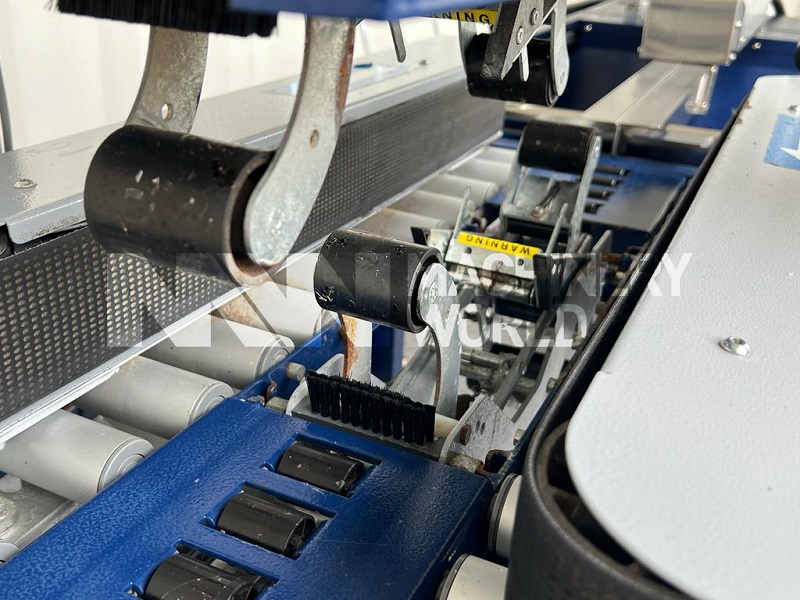

  • Taping Heads: Top & Bottom
  • Minimum Box Dimensions (L x W x H): 150mm x 110mm x 110mm
  • Maximum Box Dimensions (L x W x H): 150mm x 500mm x 750mm (By adjusting the Top Sealing Bridge position manually)
  • Maximum Box Weight: Approx. 50kgs
  • Total Power: 0.4kw, 3-ph, 400v & 50Hz
  • Air Consumption: 158 NI/min
  • Maximum Air Pressure: 6 bar
Dimensions
  • Length: 1055mm
  • Width: 946mm
  • Height: 1625mm
  • Weight: Approx 150kgs

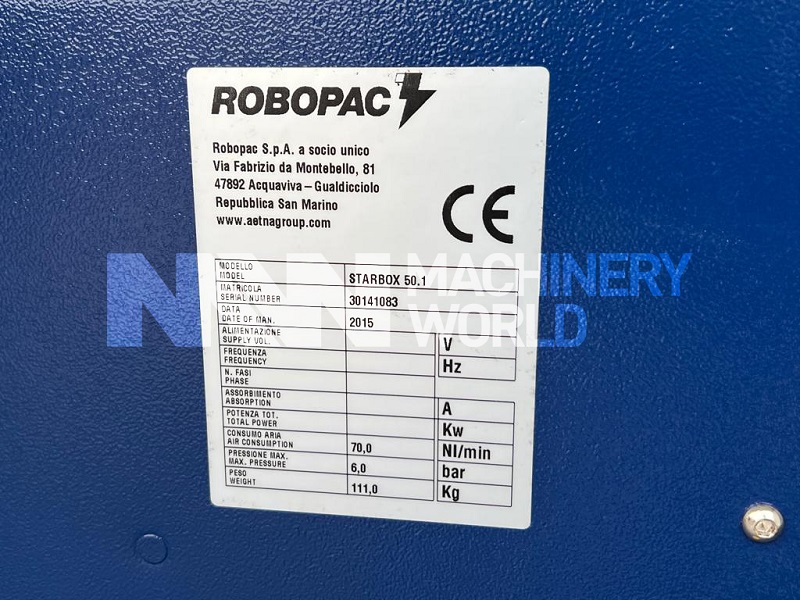

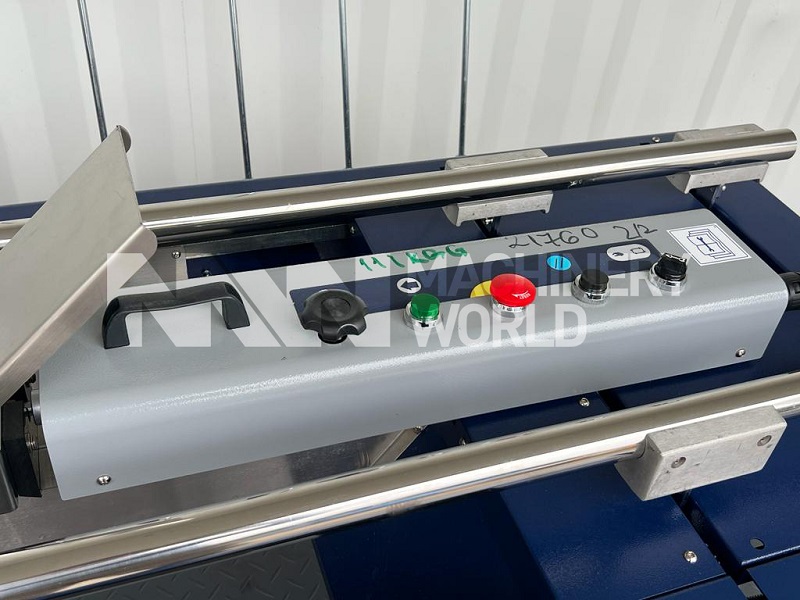

Robopac Starbox 50.1 Semi Automatic Case Erector

  • Make: Robopac S.p.A (Aetna Group)
  • Model: STARBOX 50.1
  • Serial Number: 30141083
  • Year of Manufacture: 2015
  • Operation: Pneumatic (Air Operated)
  • Minimum Box Dimensions (L x W x H): 150mm x 230mm x 110mm
  • Maximum Box Dimensions (L x W): 650mm x 500mm
  • Maximum Box Weight: Approx. 50kgs
  • Air Consumption: 8.5 NI/min
  • Maximum Air Pressure: 6 bar
Dimensions
  • Length: 1740mm
  • Width: 740mm
  • Height: 1225mm
  • Weight: Approx 111kgs
Country of Manufacture

Italy
