Description

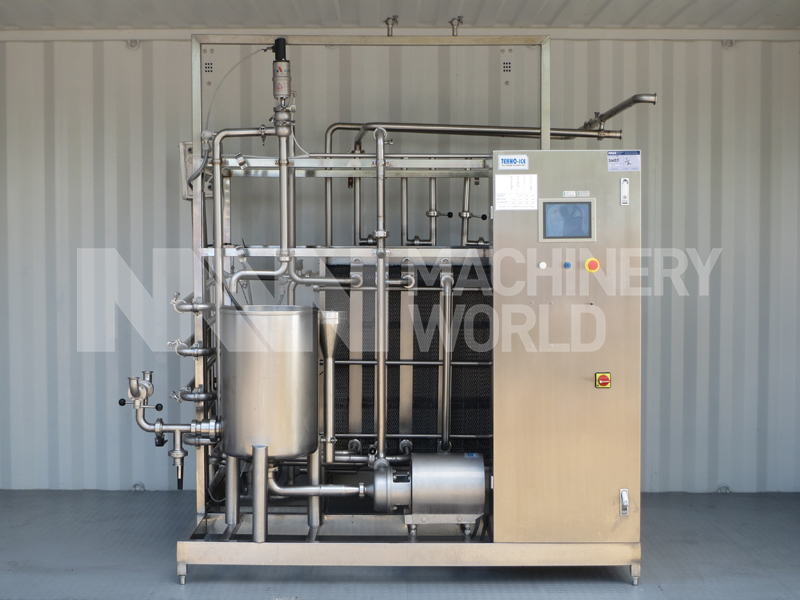

A Teknomix 1200 litre ice cream HTST process plant from Tekno-Ice. The skid-mounted unit pasteurises, homogenises and cools ready for freezing of the ice cream mix. No pre-heat tanks are included but can be offered at an additional cost upon request.
Features

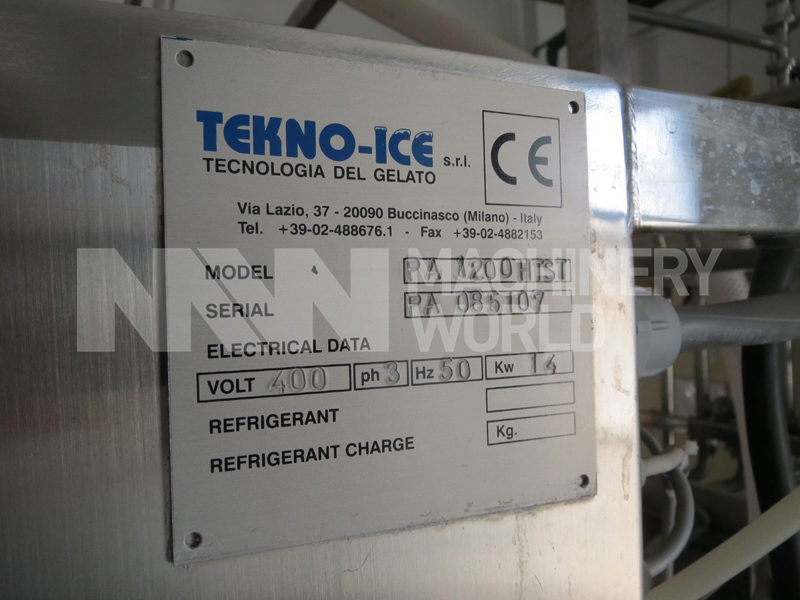

- Manufacturer: Tekno-Ice
- Model: Teknomix PA 1200 HTST
- Function: Ice cream mix processing plant
- Serial number: PA085107
- Year of manufacture: 2008
- Capacity: 1200 litres/per hour
- Electrics: 400V/3 Phase/50 Hz
- Total installed power: 14 kW
- Documentation included
- Country of manufacture: Italy
- See ‘Technical Doc’ link for further details
Key components

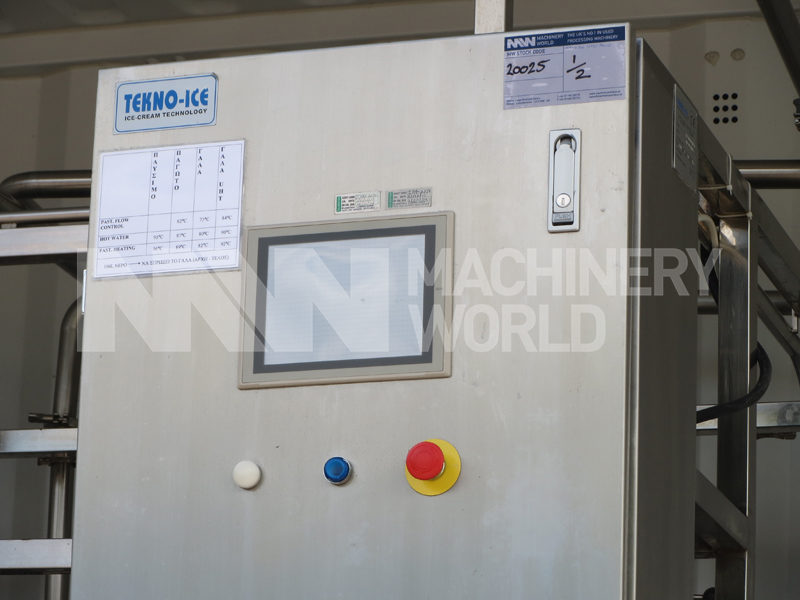

Control Panel

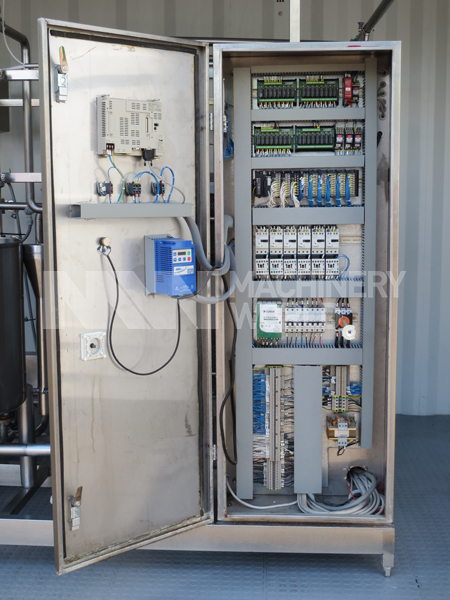

- Electrical control panel with PLC system screen
- Manufactured completely in stainless steel AISI 304
- Time/temperature recorder for the control of the pasteurization temp, by-pass valve and security alarms.
- From the electrical panel it is possible to monitor all control systems and security systems of the entire plant

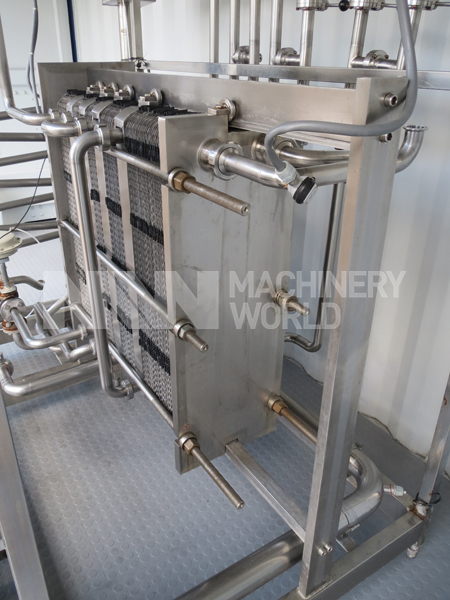

Plate heat exchanger
- Four sections for the ice cream mix pasteurisation and cooling
- Capacity: 1,200 litres/hour
- First section: Pasteurisation from 76 – 85 degC
- Second section: Recovery from 55 – 76 degC
- Third section: Pre-cooling from 64 – 34 degC
- Fourth section: Cooling with cold water from 34 – 4 degC
- Heat recovery: Approx. 71.4 %
- Heat exchanger plates: 0,6 mm thickness in stainless steel
- In stainless steel AISI 304, sanitary execution with supporting feet in stainless steel

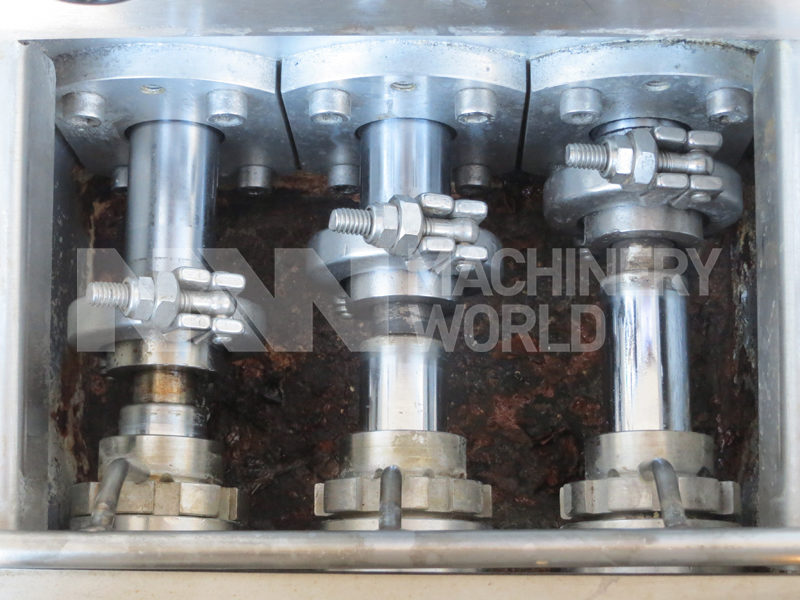

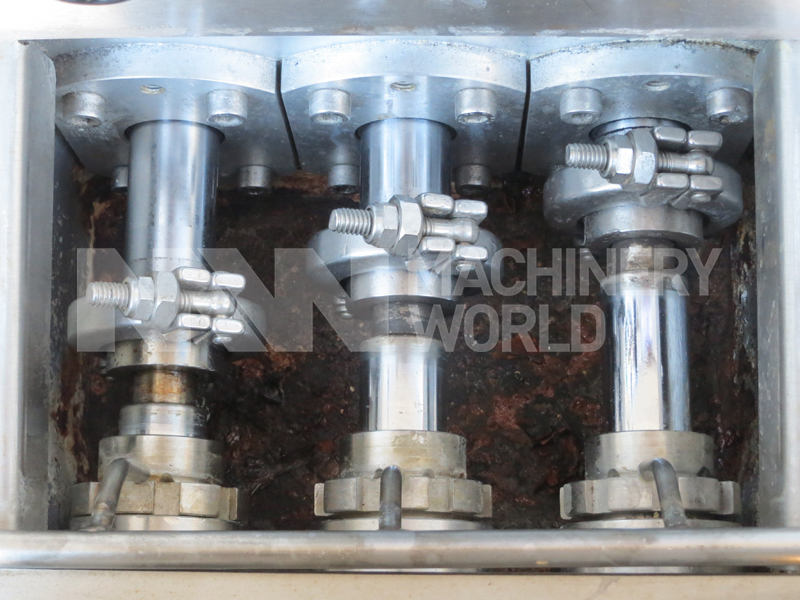

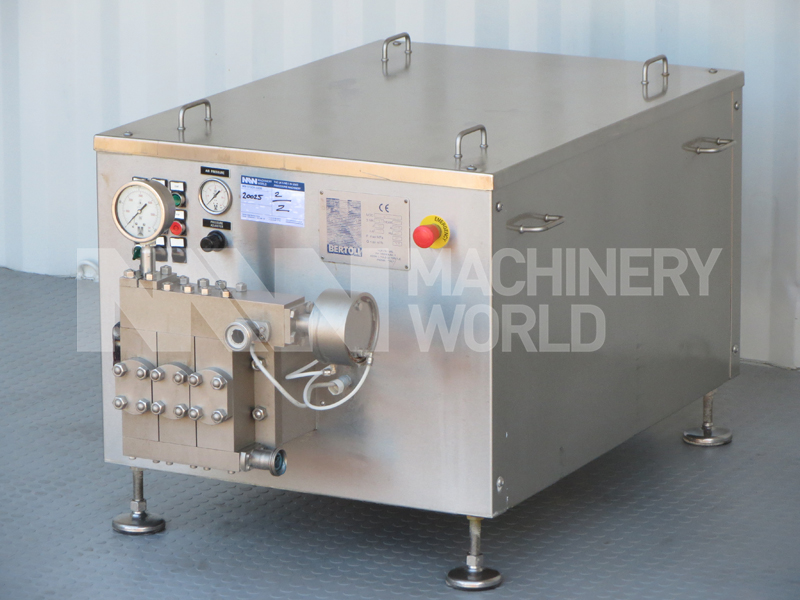

Bertoli Homogeniser
- Manufacturer: Bertoli
- Model: H3007
- Capacity: 1200 litres/ hour
- Serial number: 2522
- Year of manufacture: 2008
- Electrics: 380V / 3 Phase / 50 Hz
- Total installed power: 11 kW
- Max. working pressure: 250 bar
Tubular holder
- Construction: Stainless steel (AISI 304)
- Holding time: 40 seconds

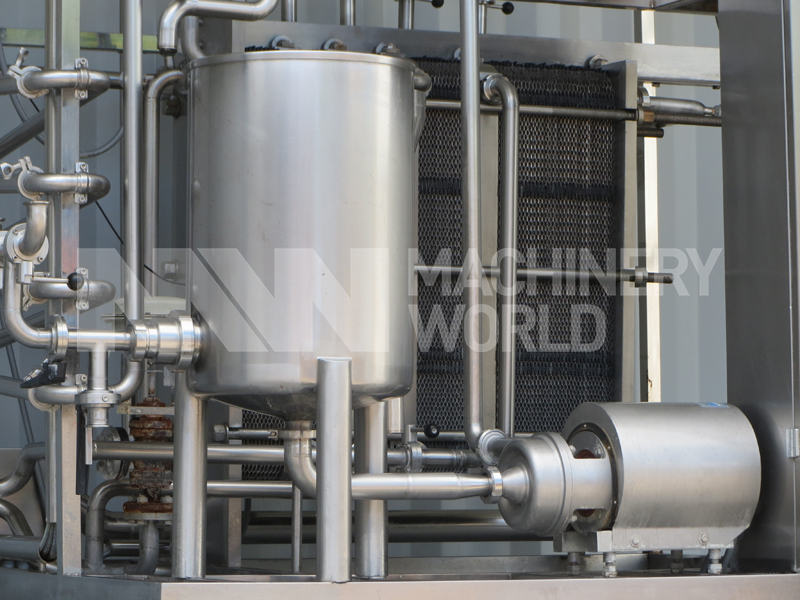

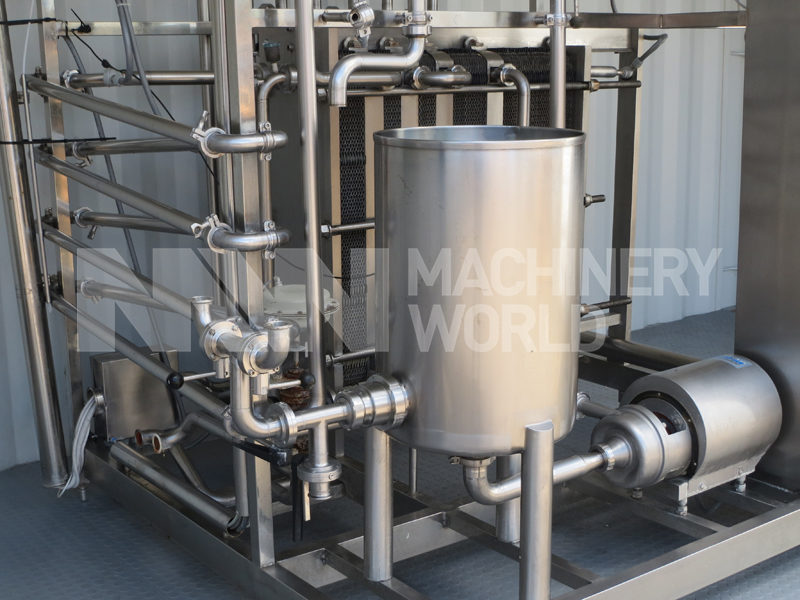

Balance tank
- Capacity: 50 litre
- Cylindrical body in stainless steel AISI 304
- Float in stainless steel AISI 304
- Tubular supporting feet
Centrifugal Sanitary Pump
- For the product feeding to heat exchanger composed by-
- Stainless steel base
- Electrical motor with watertight flange and terminal board
- Pump body in AISI 304
- Removable cover in AISI 304 for easy inspection
