Description

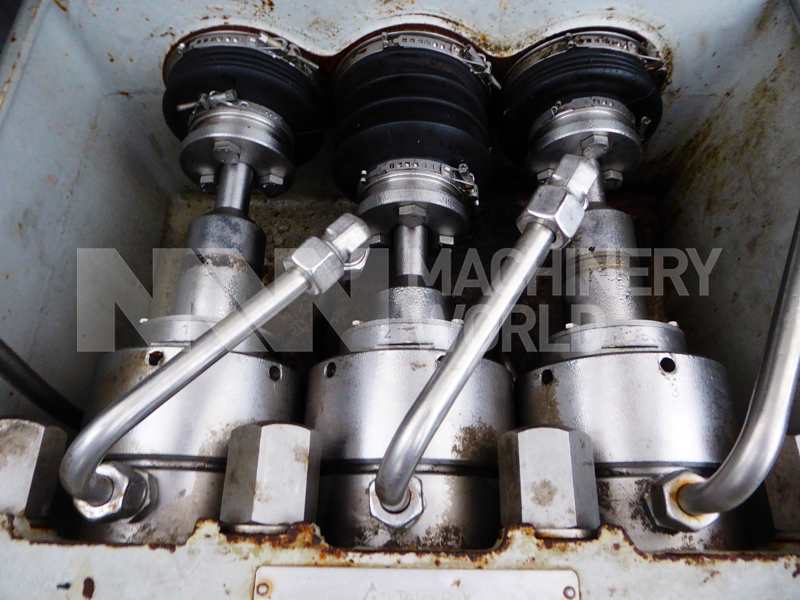

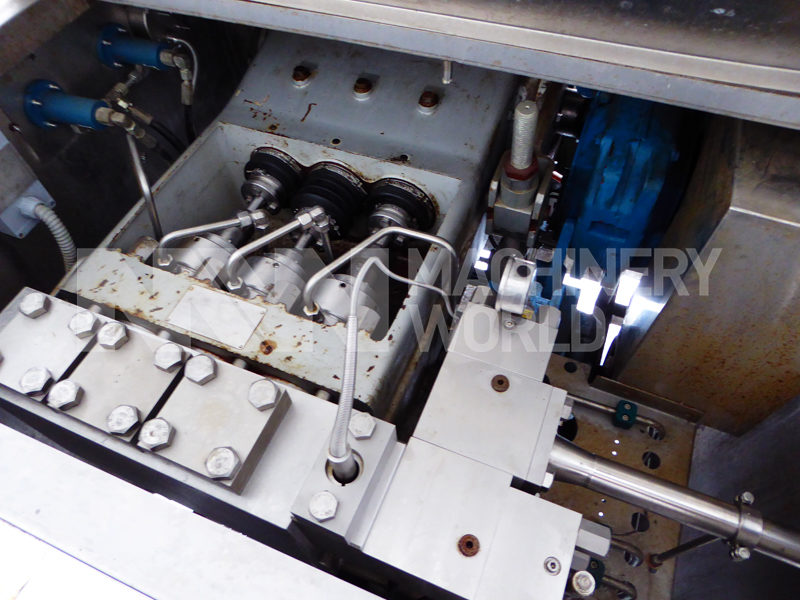

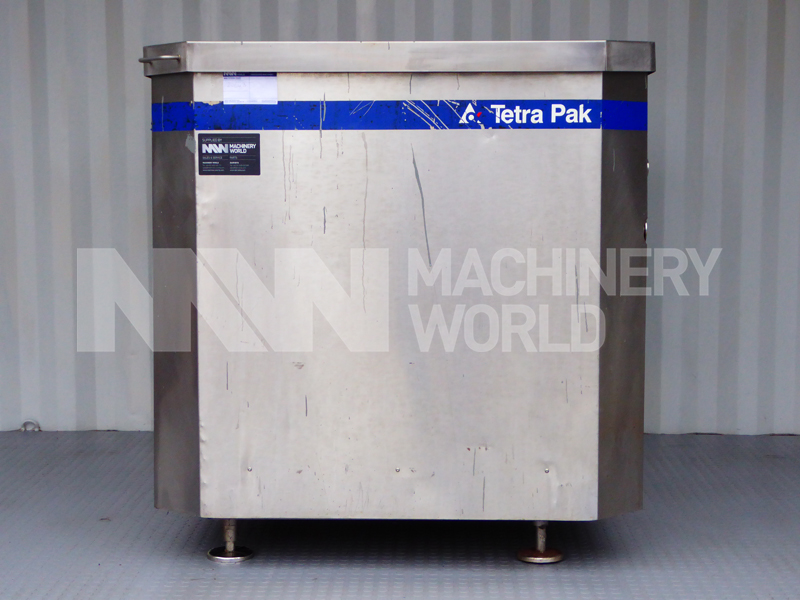

A Tetra Pak TAM 20 machine for high-pressure homogenisation of emulsions and suspensions. The product is pumped under high pressure into the homogenising device. In the device the product is forced through a small annular gap where the pressure transform into high velocity. Extreme turbulence and cavitation effectively reduce the size of liquid droplets and solid particles.
Features
- Manufacturer: Tetra Pak
- Model: TAM 20
- Function: Homogeniser
- Capacity: 3.000 litres/per hour
- Serial number: T5845514089
- Max. working pressure: 100 bar
- Year of manufacture: 2004
- Valve design: Mushroom
- Piston diameter: 50mm
- Piston design: Stainless steel
- Piston packing: Grooved
- Electrics: 380V / 3Phase / 50Hz
- Total installed power: 18.5 kW
- Number of stages: 2-stage
- Stainless steel construction
- See ‘Technical Doc’ link below for further details
Country of Manufacture
Sweden
