Tetra Pak Tetra Alfast Plus Automatic Direct Inline Standardisation System (Year 2007)

Description

This is a used Tetra Pak Tetra Alfast Plus Automatic Direct Inline Standardisation System. Tetra Pak Tetra Alfast Plus Automatic Direct Inline Standardisation System are widely used in automatic inline Standardisation (Standardization) of Fat, Proteins, Total Solids and solids-non-fat in milk and cream, used in dairies after standard separation. Application: Liquid Milk & Cream, Flavoured Milk, Milk for Fermented products & Powder Production, Cheese Milk and other dairy products - Details shown on description and on download link below are taken from Tetra Pak's website www.tetrapak.com. Please check suitably on actual intended product. This Tetra Pak Tetra Alfast Plus Automatic Direct Inline Standardisation System was previously used at a major cheese processing facility and currently available for immediate sale.

Specification

• Make: Tetra Pak Dairy & Beverage Systems AB
• Type: Automatic Direct Inline Standardisation System

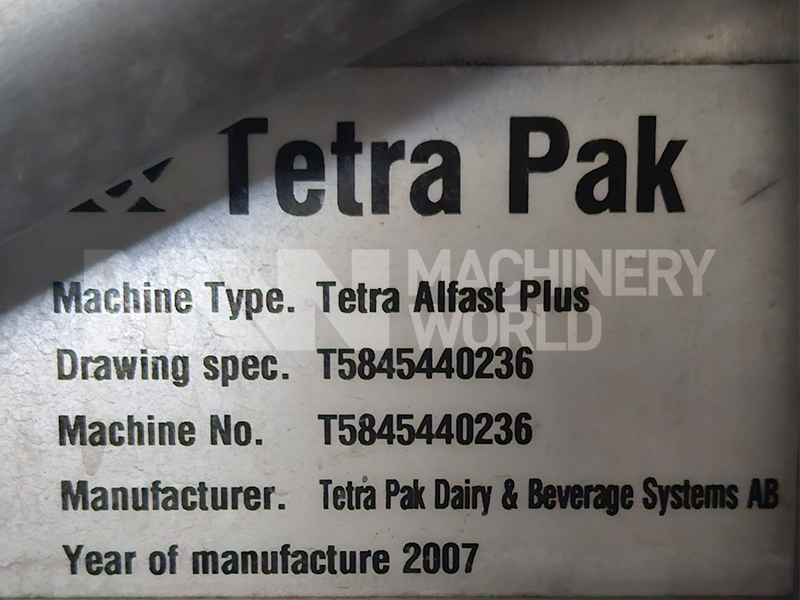

• Drawing Spec / Machine Number: T5845440236
• Year of Manufacture: 2007
• Standard Capacity: 5,000 LPH to 75,000 LPH (From manufacturer's website - Actual capacity could vary depending on the setup and product)
• Make of Flow Transmitters: Endress & Hauser
• Number of Flow Transmitters on the Tetra Alfast Plus: 4x Flow Transmitters
• Make of Density Transducers: Tetra Pak
• Number of Density Transducers on Tetra Alfast Plus: 3x Density Transducers

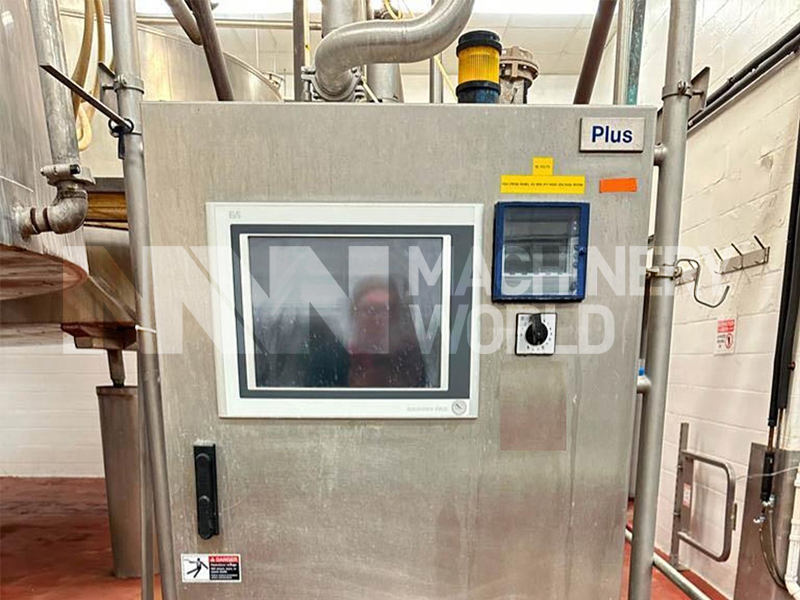

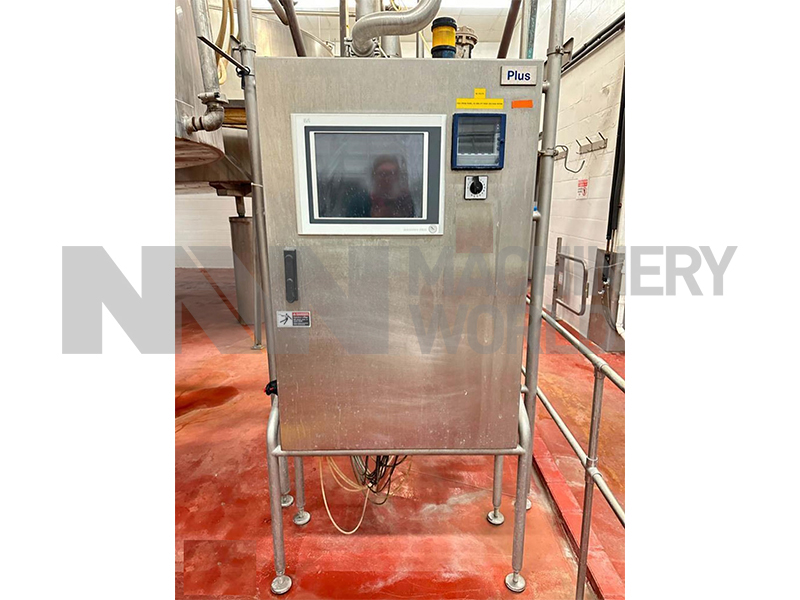

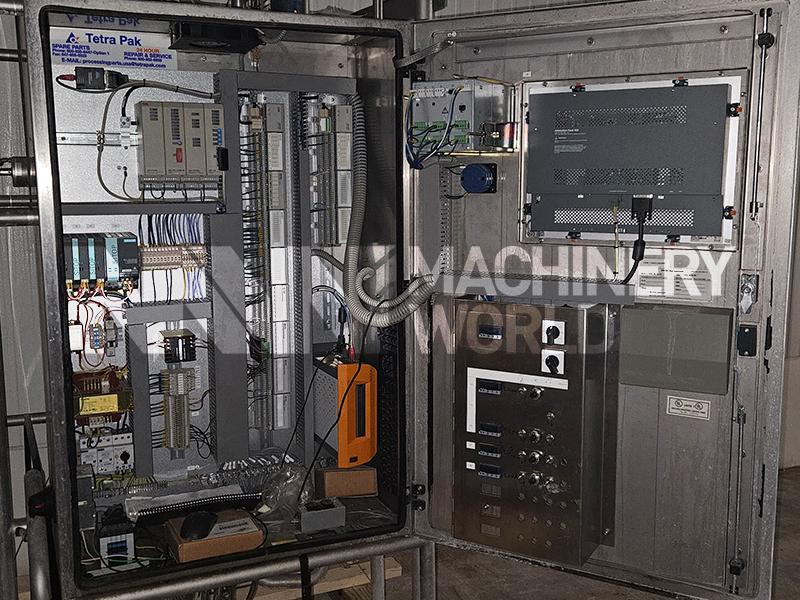

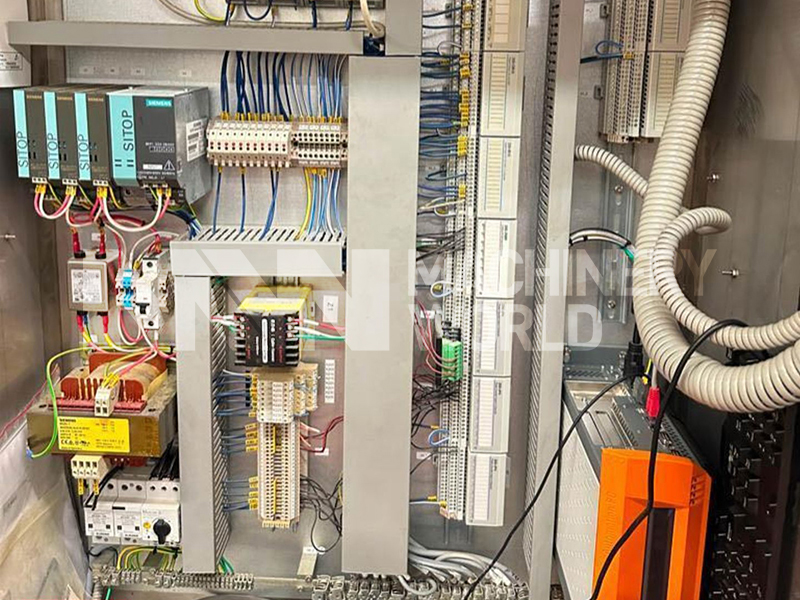

• Controls: Fully Integrated with PLC and HMI.

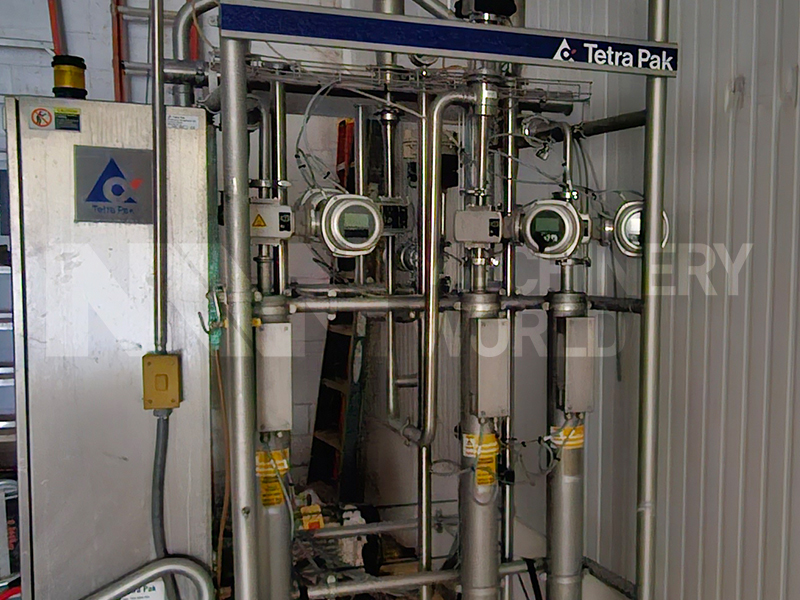

• Additional Details: Comes completely frame mounted with various valves, 4x Endress & Hauser Flow Transmitters and 3x Tetra Pak Density Transducers.

Dimensions

• Length: 1470mm
• Width: 1275mm
• Height: 2200mm
• Weight: Approx 750kg

Country of Manufacture

Sweden
