1,250kg per Hour DSS Tetra Pak Ultrafiltration UF Microfiltration MF Batch Pilot Plant

Description

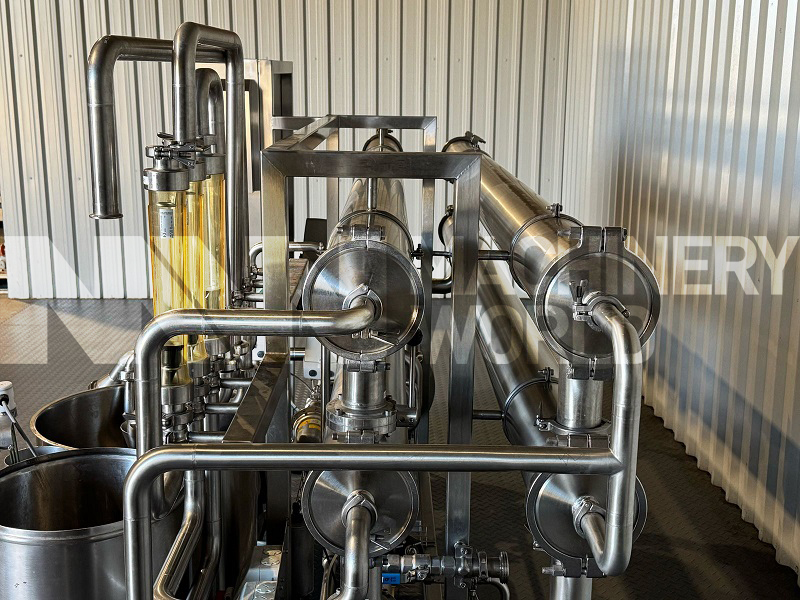

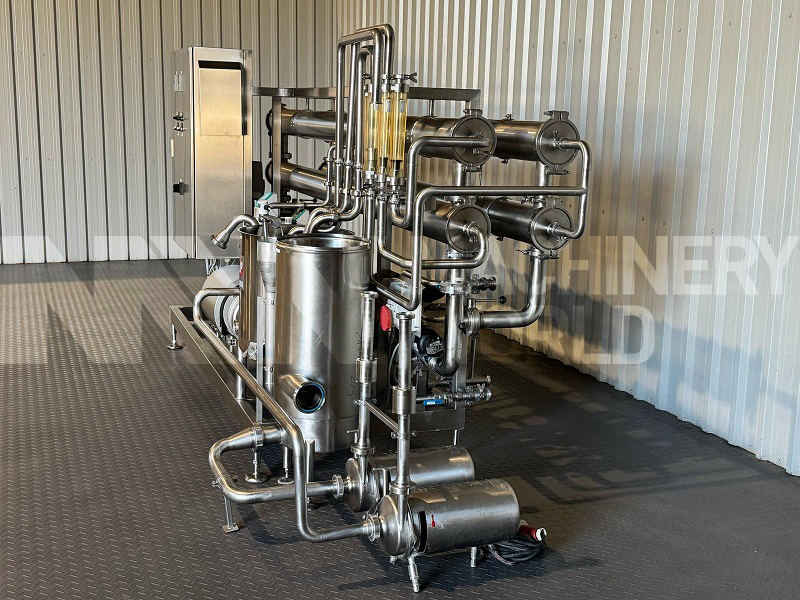

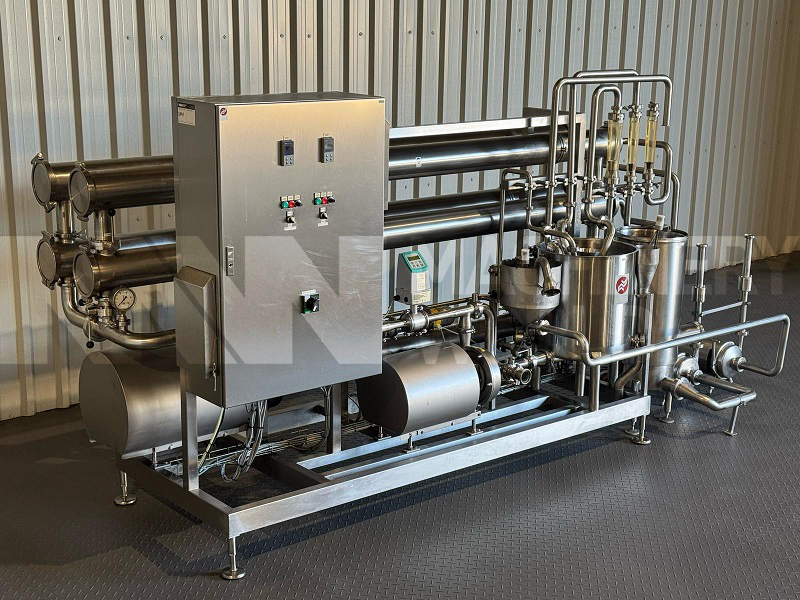

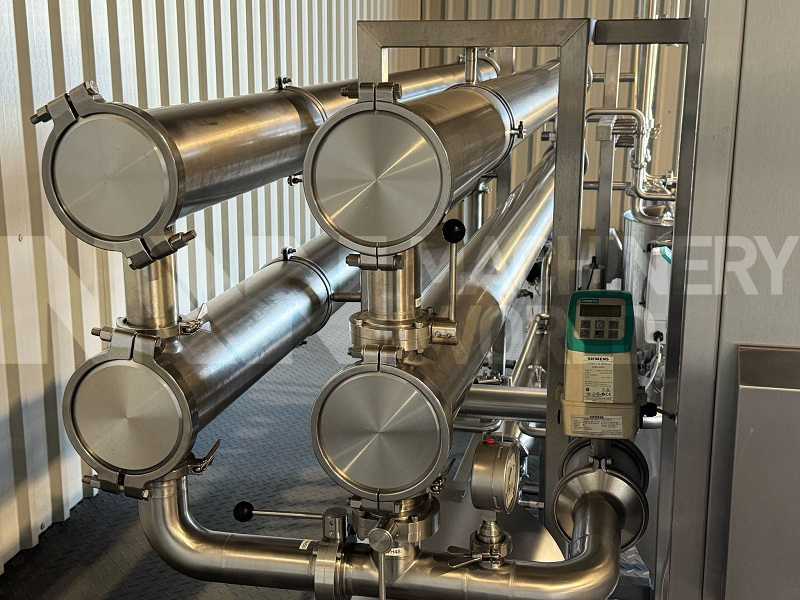

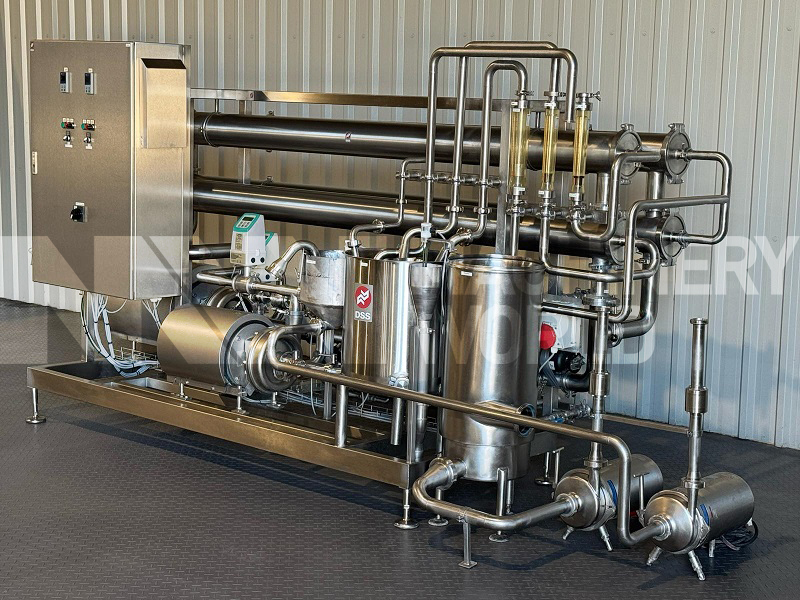

This is a used DSS (Now Tetra Pak) Ultrafiltration UF Microfiltration MF Batch Pilot Plant. DSS which is owned by Tetra Pak, is Europe’s leading Membrane & Filtration equipment manufacturer. This DSS (Now Tetra Pak) Ultrafiltration UF Microfiltration MF Batch Pilot Plant has a working capacity of approx 1,250kg per hour on Whole Milk and approx 650kg per hour on Skim Milk. DSS Tetra Pak Ultrafiltration UF Microfiltration MF Batch Pilot Plant is completely skid mounted and includes 4x Membrane Modules, Pumps, balance Tank, Flowmeter, Valves and fully integrated Control Panel. Currently held as stock, this plant is available for immediate sale. Please note that ‘Technical Doc’ attachment shown is for information purpose only and the actual equipment under offer might vary in specification.

Specification

• Make: DSS Silkeborg, Denmark (Now Tetra Pak)
• Type: Ultrafiltration UF Microfiltration MF Batch Pilot Plant
• Serial Number: 500565
• Year of Manufacture: 2010
• Total Number of Membrane Modules: 4
• Hourly Capacity: Approx 1,250kg Per Hour on Whole Milk & Approx 650kg Per Hour on Skim Milk
• Product: Concentration of Whole Milk from 13.05% Total Solids to 23.87% Total Solids at the rate of approx 1,250kg per Hour.
• Product: Concentration of Skim Milk from 9.22% Total Solids to 17.52% Total Solids at the rate of approx 650kg per Hour.
• Whole Milk: Feed 1,250kg per Hour, Permeate @ 739kg per Hour & Retentate @ 511kg per Hour
• Skim Milk: Feed 650kg per Hour, Permeate @ 462kg per Hour & Retentate @ 188kg per Hour
• Steam: 90kg per Hour
• Cooling: 6,500 - 650 LPH at 1 to 10 deg C

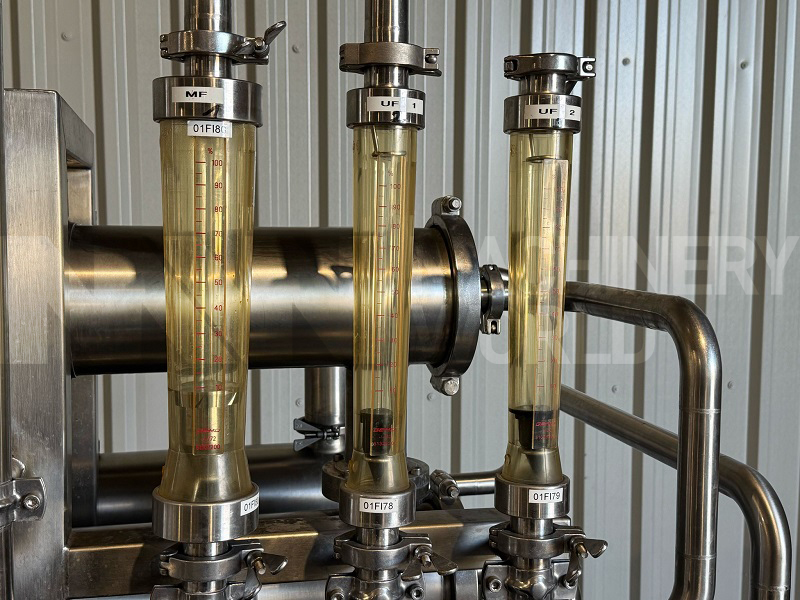

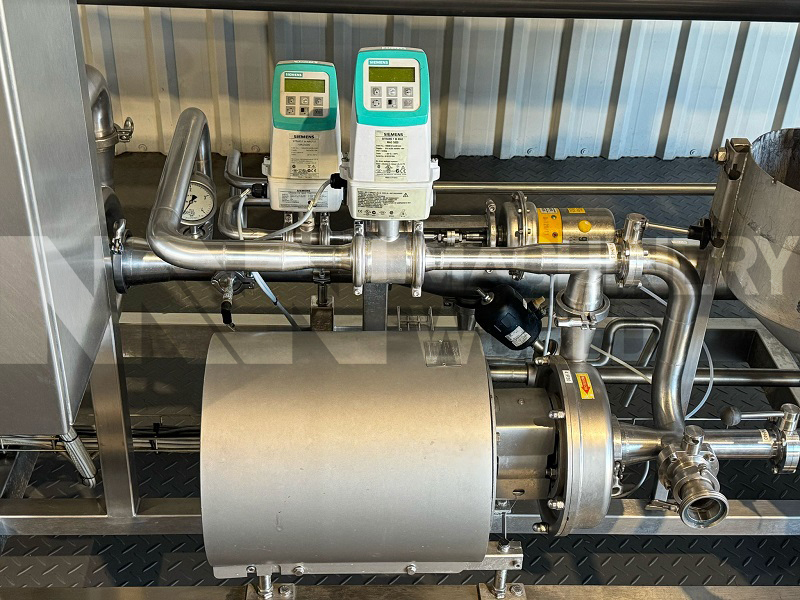

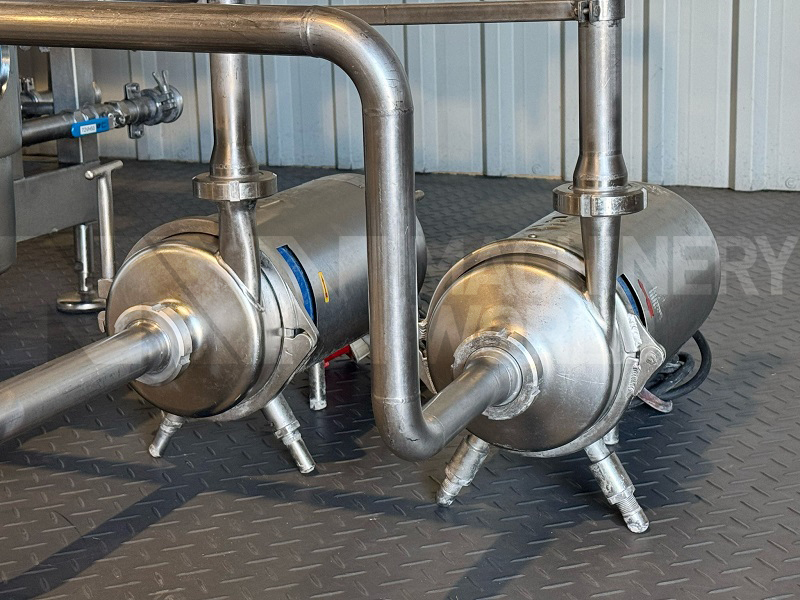

• Skid comes mounted with Pumps, Valves, Stainless Steel Balance Tank, Flowmeters and Interconnecting Pipework

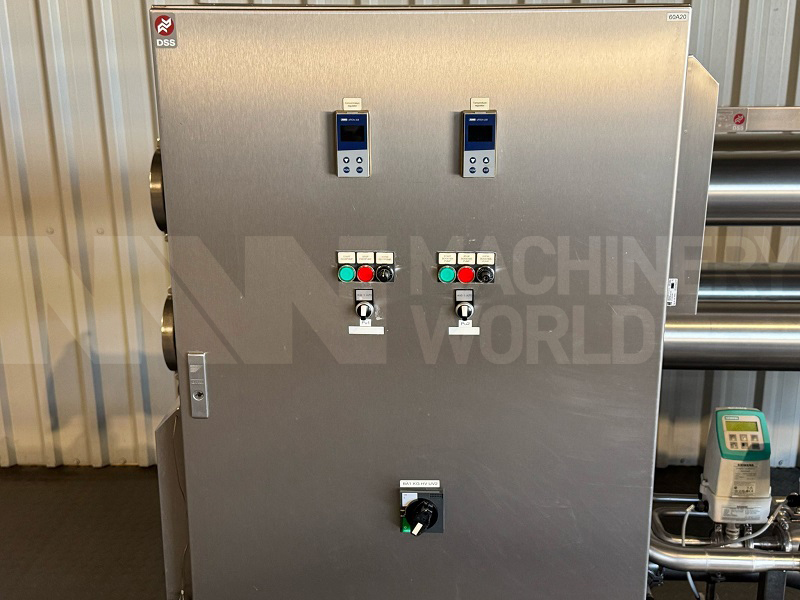

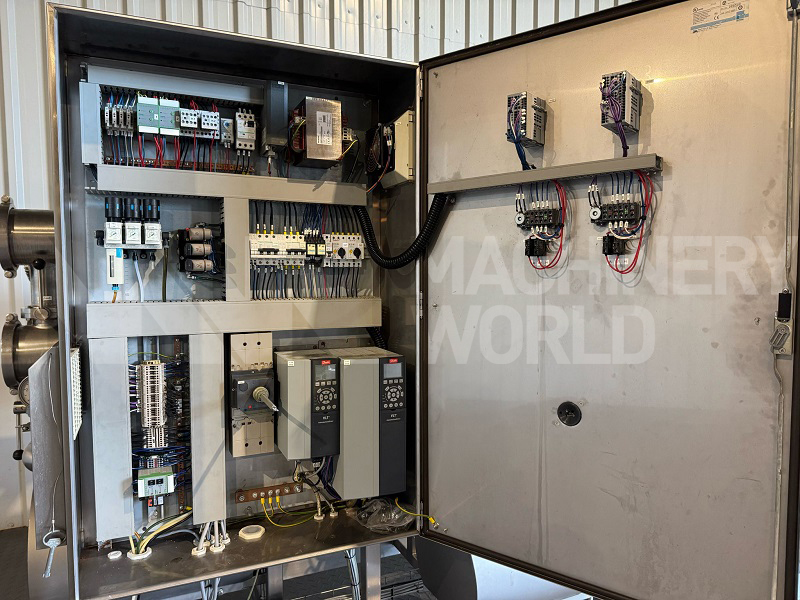

• Control Panel: Fully Skid mounted

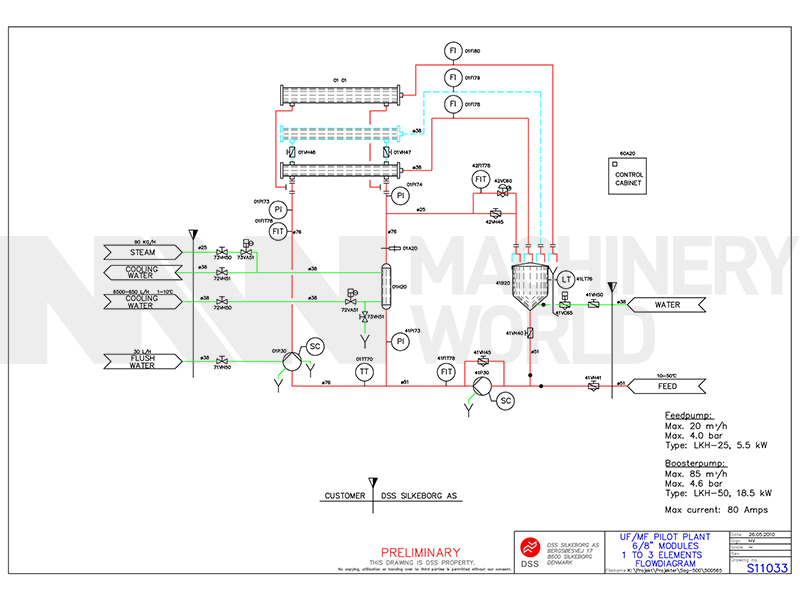

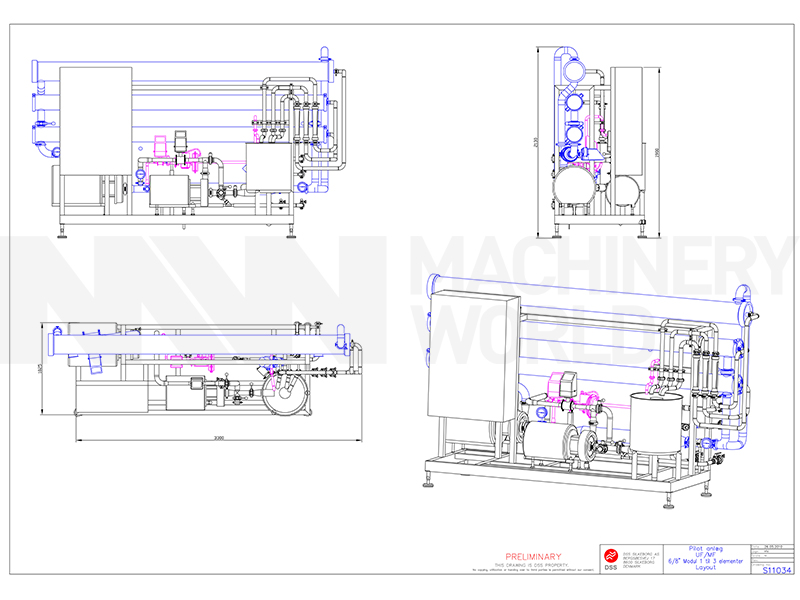

• Comes with drawings

Dimensions

• Length: 3300mm
• Width: 1025mm
• Height: 2130mm
