Description

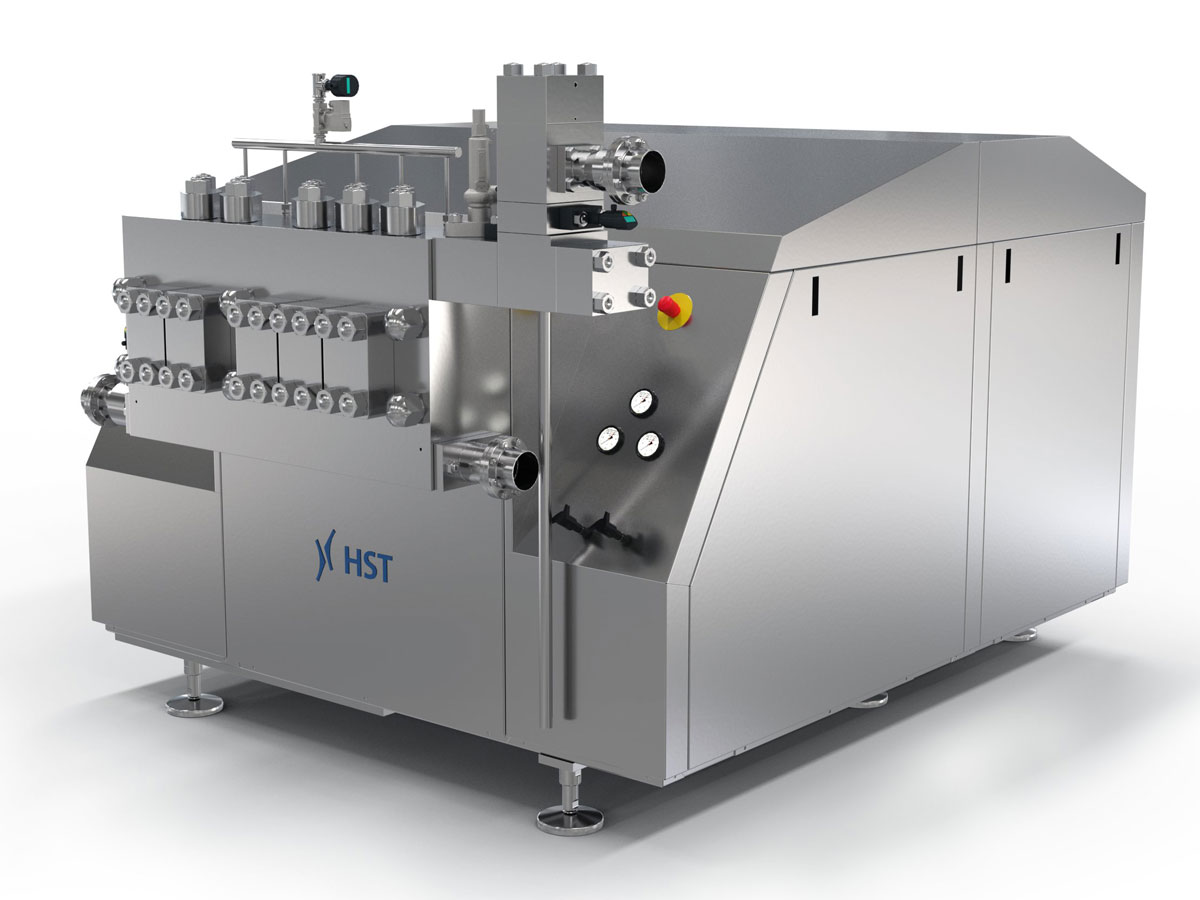

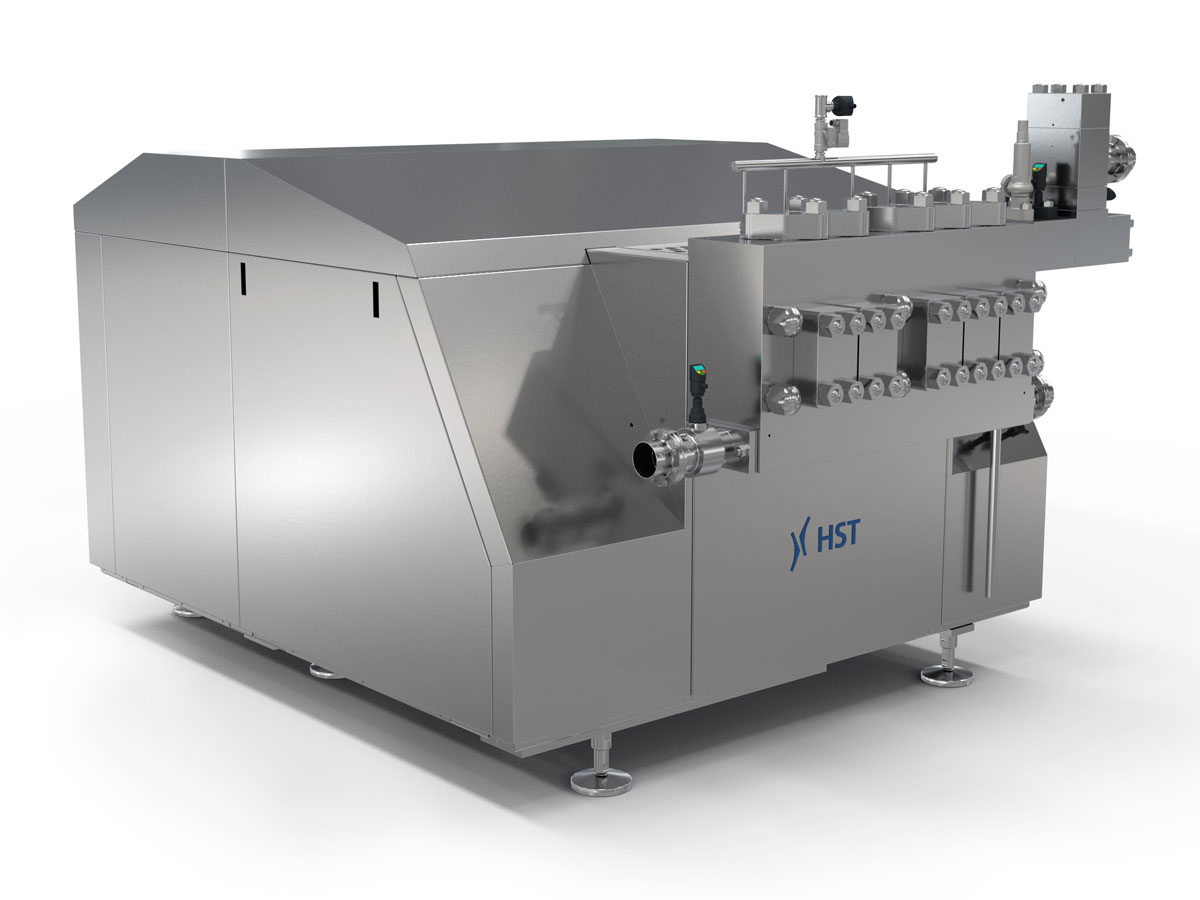

The HL5 is a high-pressure piston pump with five pistons and a homogenizing device. The pistons are orientated horizontally. Depending on the application, the homogenizer is available in single-stage or two-stage versions. A choice of valve materials is available, e.g. stainless steel and sintered materials, to handle a wide range of different products.
The cylinder block is made of high-alloy, forged, corrosion-resistant stainless steel and has a minimum of wearing parts. The HL4 delivers high CIP performance due to the high-quality surface and avoidance of dead space. A variety of cylinder block designs are available for septic and aseptic processing of a broad range of products.
Specification
- Max. 37.000 l/h
- Homogenizing pressure up to 700 bar
- Absorbed motor power: max. 160 kW
- Aseptic execution optional
- Poppet valve for low viscous and slightly abrasive
- products
- Ball valves for high viscous and abrasive products
- Made in Germany
Weight with Motor: max. 7.500 kg
Technical Data
Homogenizer
- Cylinder block material : in stainless steel DIN EN 1.4405
- Pump valves: Poppet or ball type in material StelliteTM alloy
- Gear Type: eccentric shaft with forced oil lubrication
- Frame material : stainless steel
- Plunger sump: Stainless steel instead of painted steel
- Motor : max. 200 kW/ IE3
Automation
- Machine control via control cabinet
- Optional:
- PLC Siemens S7-1200/1500 or Allen Bradley including tested software
- Touch panel HMI Siemens KTP
- Control cabinet air conditioning
- Plug&Play solution: Machine and control cabinet are tested together
Disc valves
For low-viscosity and only slightly abrasive products
| Machine type | Max. pressure (bar) | Max. throughput (L/h) |
|---|---|---|
| 150T | 150 | 34.000 |
| 200T | 200 | 28.000 |
| 250T | 250 | 21.000 |
| 350T | 350 | 16.000 |
| 550T | 550 | 11.000 |
Ball valves
For abrasive and high-viscosity products
| Machine type | Max. pressure (bar) | Max. throughput (L/h) |
|---|---|---|
| 150K | 150 | 24.500 |
| 200K | 200 | 24.000 |
| 250K | 250 | 18.000 |
| 350K | 350 | 15.000 |
| 550K | 550 | 10.000 |

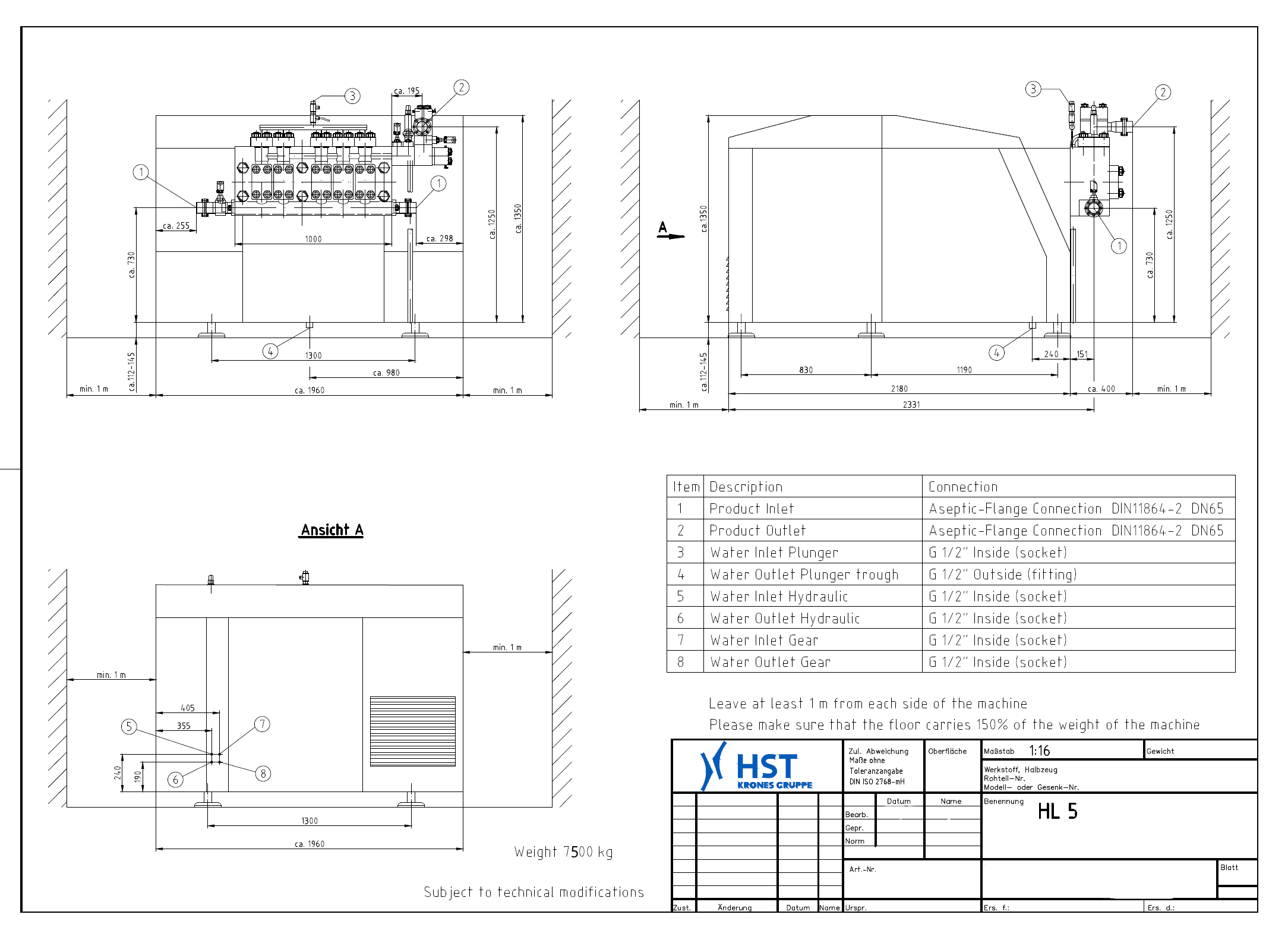

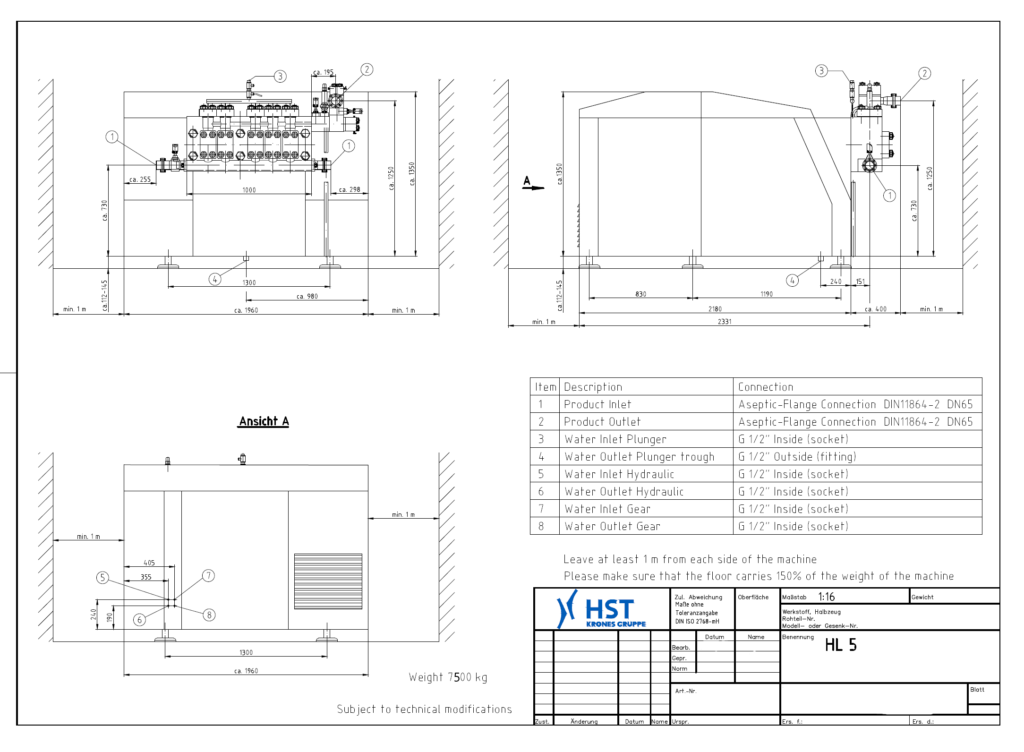

Dimensions
- L x W x H (mm) : 2500 x 1960 x 1550
- Weight : 7.500 kg
Applications
- Dairy Industry (e.g. yoghurt, milk, cream, cheese)
- Spray drying applications: e.g. milk powder
- Ice cream mix
- Beverage Industry (e.g. fruit juices, fruit concentrates, fruit purees and Liqueurs)
- Homogenization of various tomato products
- Chemical applications (e.g. polymerization, wax, latex)
- Pharmaceutical applications (e.g. enteral nutrition, parenteral nutrition)
- Biotechnological applications (e.g. various cell disruption)
