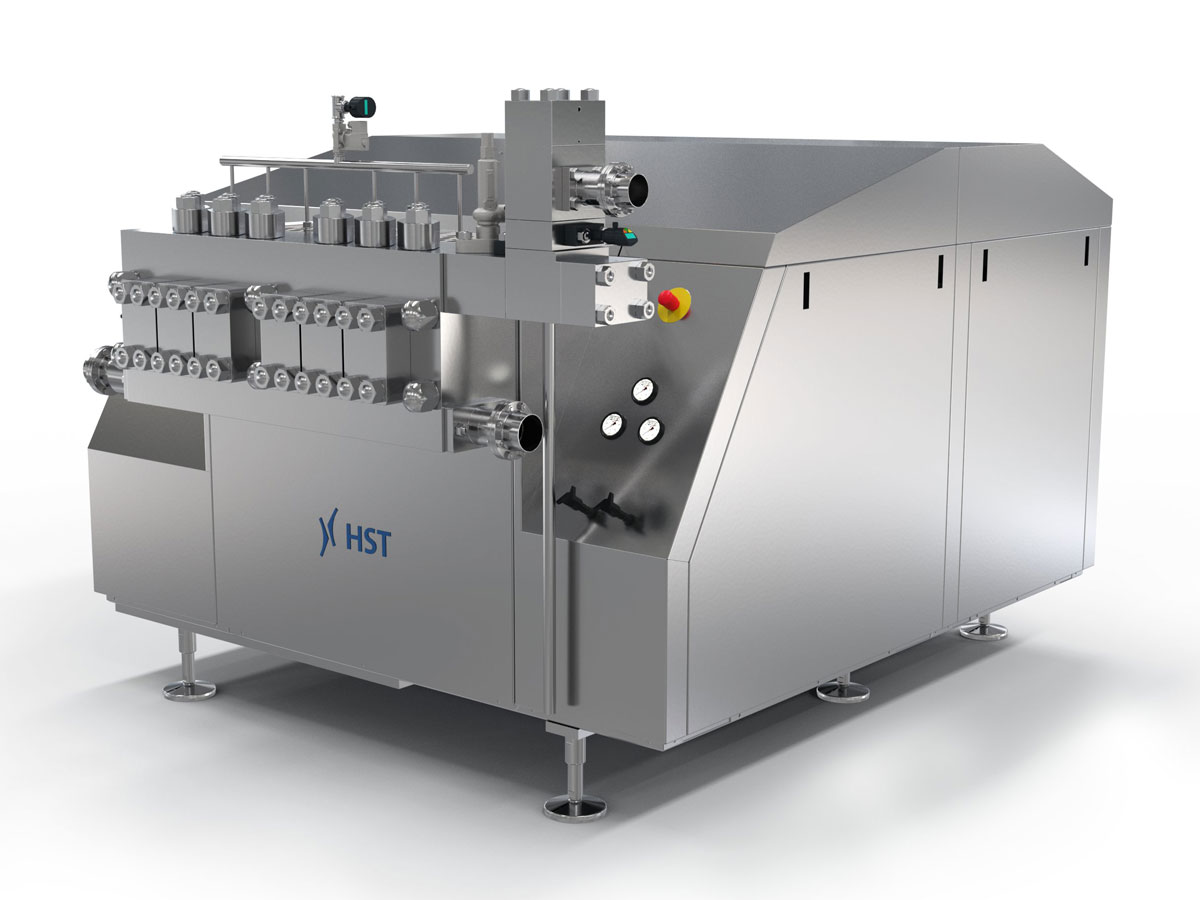

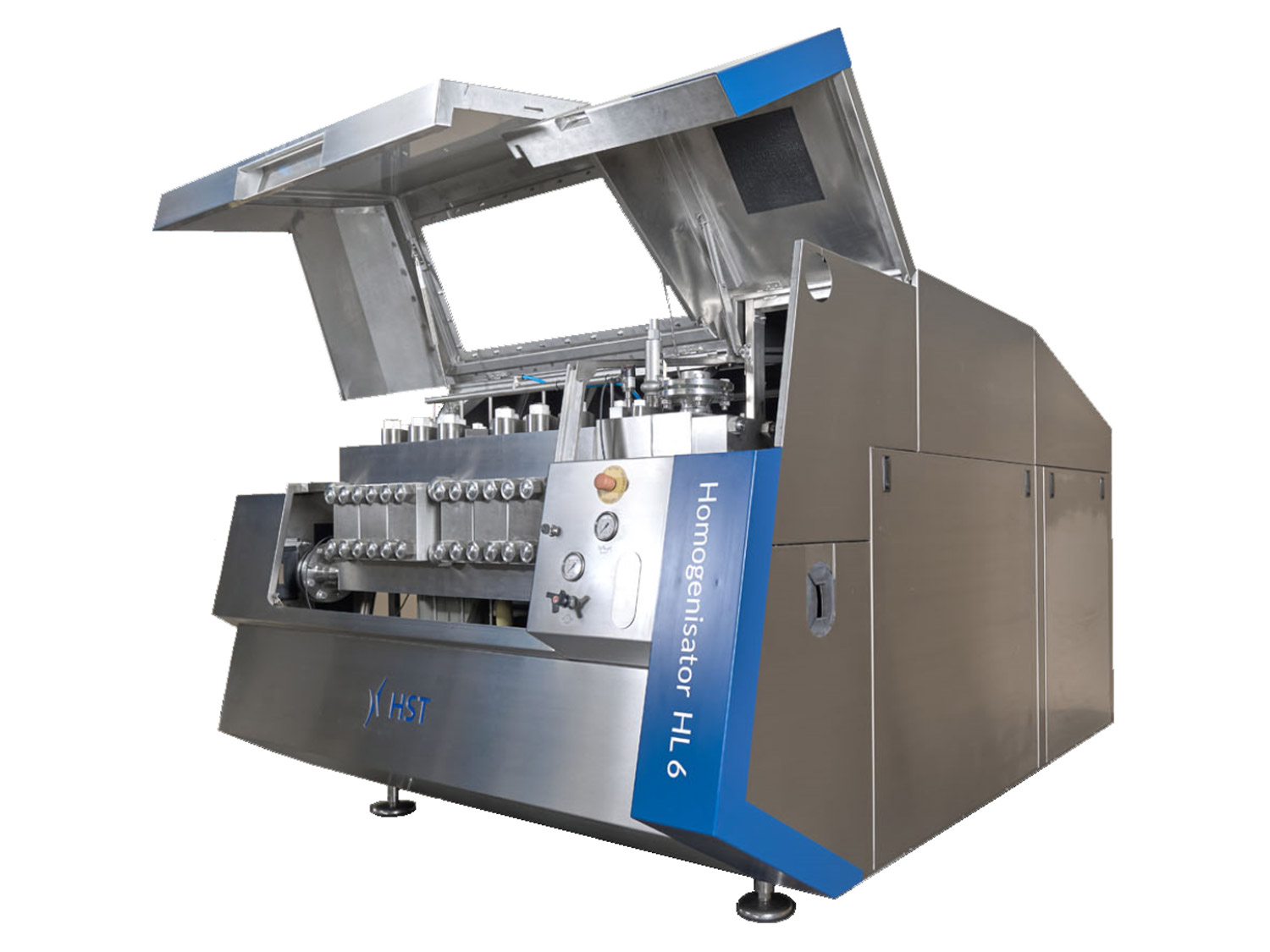

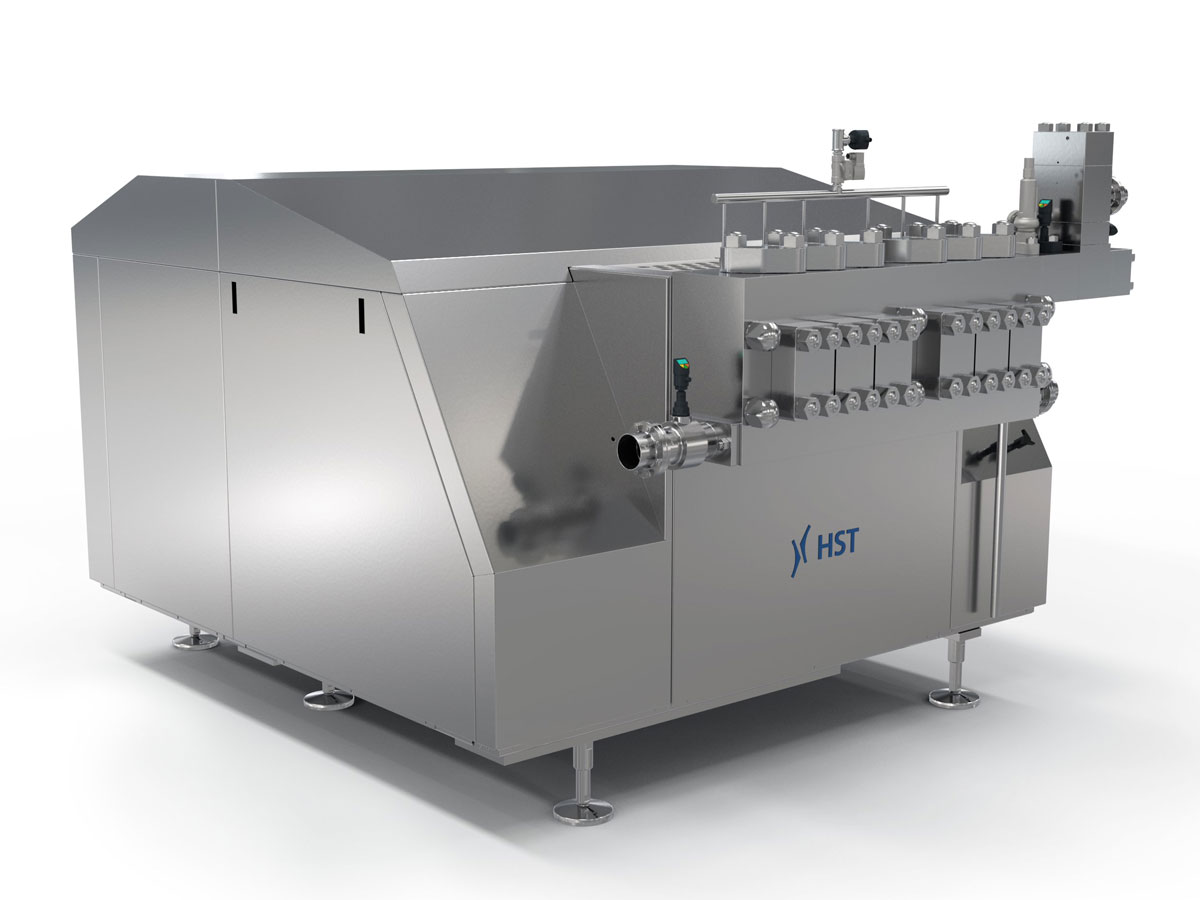

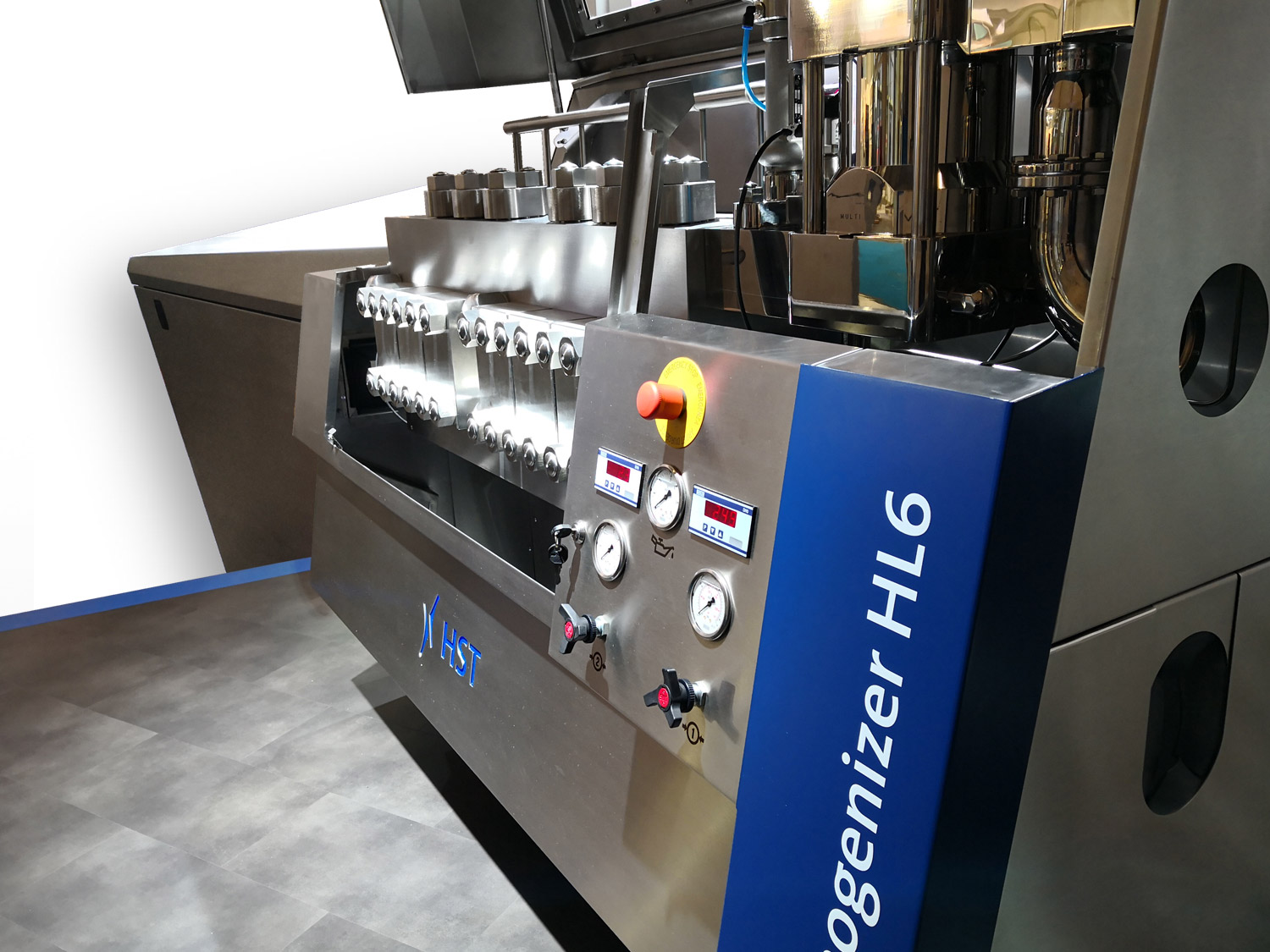

HST HL 6 Homogenizer


The HL6 is a high-pressure piston pump with six pistons and a homogenizing device. The pistons are orientated horizontally. Depending on the application, the homogenizer is available in single-stage or two-stage versions. A choice of valve materials is available, e.g. stainless steel and sintered materials, to handle a wide range of different products.

The cylinder block is made of high-alloy, forged, corrosion-resistant stainless steel and has a minimum of wearing parts. The HL6 delivers high CIP performance due to the high-quality surface and avoidance of dead space. A variety of cylinder block designs are available for septic and aseptic processing of a broad range of products

  • Max. 47.000 l/h
  • Homogenizing pressure up to 700 bar
  • Absorbed motor power: max. 220 kW
  • Aseptic execution optional
  • Poppet valve for low viscous and slightly abrasive
  • products
  • Ball valves for high viscous and abrasive products
  • Sound proofed cabinet for sound reduction up to
  • 6 dB(A)
  • Made in Germany

Weight with Motor: max. 8.000 kg


Technical Data


  • Cylinder block material : in stainless steel DIN EN 1.4405
  • Pump valves: Poppet or ball type in material StelliteTM alloy

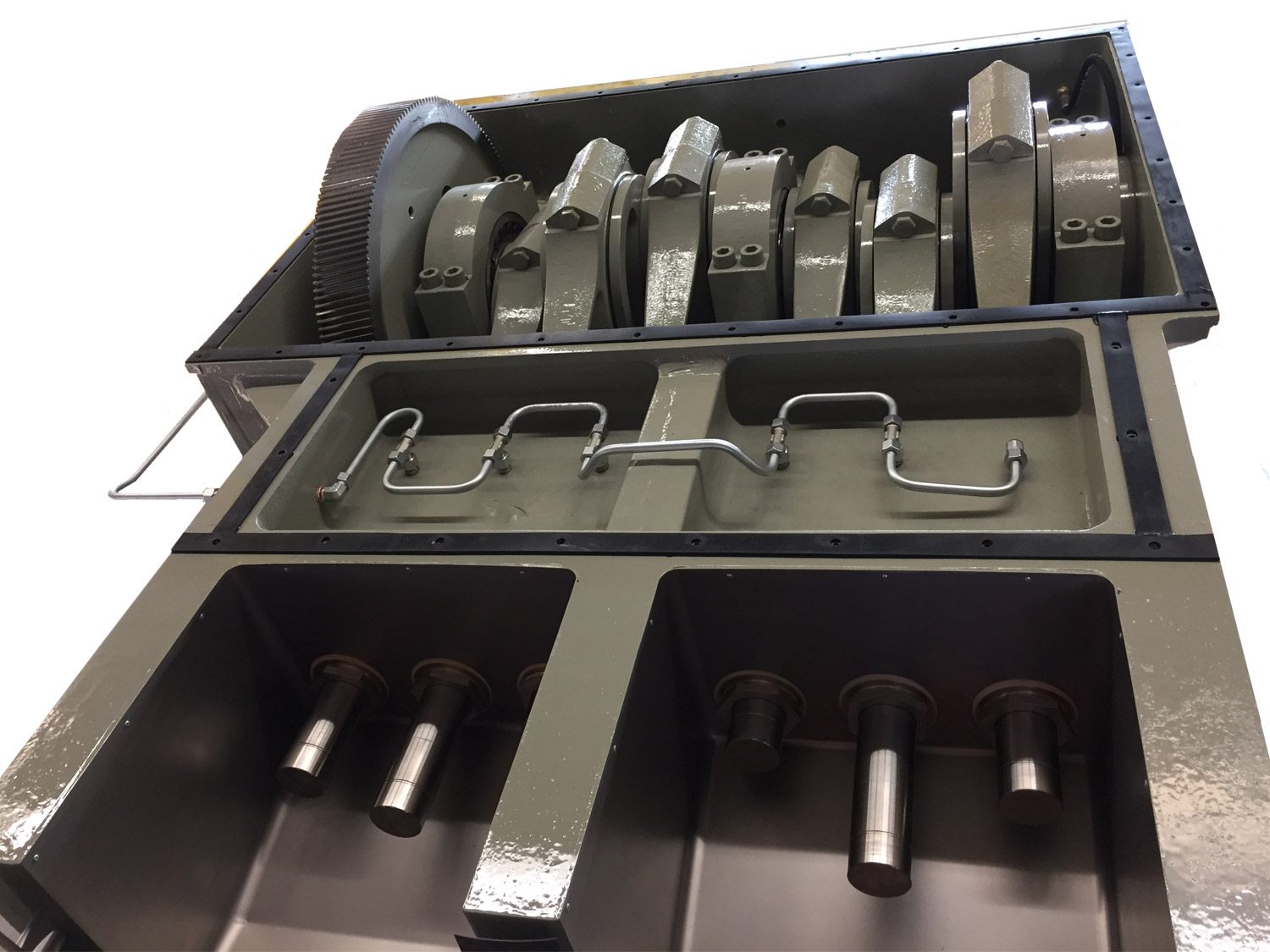

  • Gear Type: eccentric shaft with forced oil lubrication
  • Frame material : stainless steel
  • Plunger sump: Stainless steel instead of painted steel
  • Motor : max. 250 kW/ IE3


  • Machine control via control cabinet
  • Optional:
  • PLC Siemens S7-1200/1500 or Allen Bradley including tested software
  • Touch panel HMI Siemens KTP
  • Control cabinet air conditioning
  • Plug&Play solution: Machine and control cabinet are tested together


Disc valves

For low-viscosity and only slightly abrasive products

Machine type Max. pressure (bar) Max. throughput (L/h)
150T 150 43.000
200T 200 39.000
250T 250 29.000
350T 350 23.000
550T 550 15.000
Ball valves

For abrasive and high-viscosity products

Machine type Max. pressure (bar) Max. throughput (L/h)
150K 150 30.000
200K 200 27.000
250K 250 21.000
350K 350 17.000
550K 550 11.000

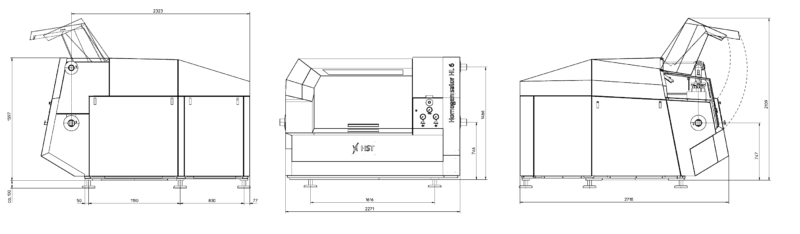

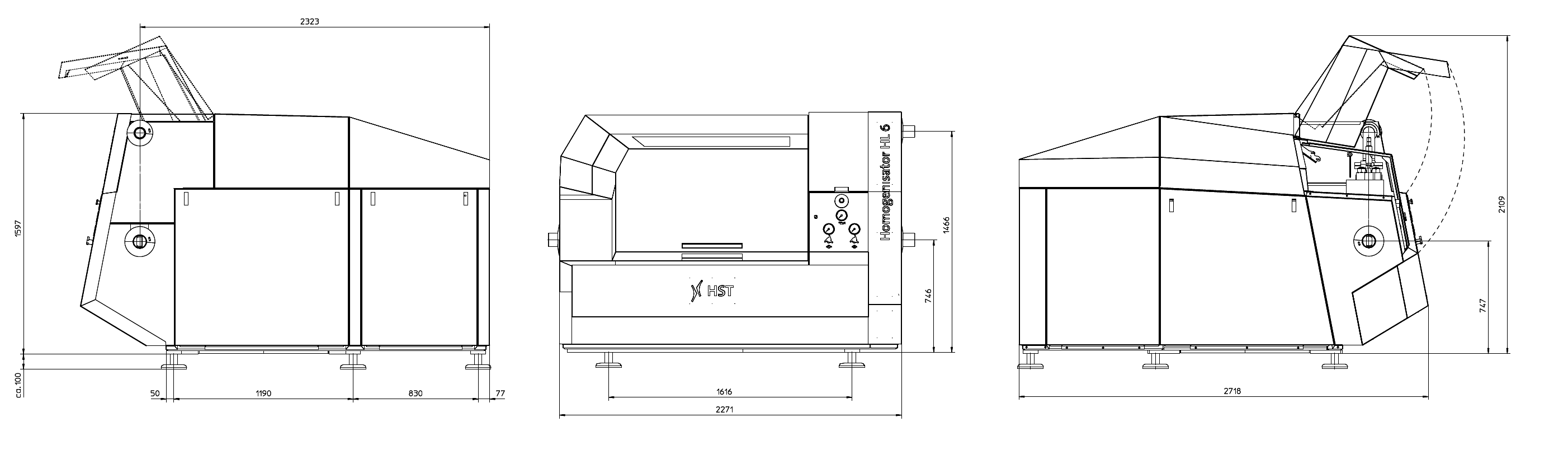

  • L x W x H (mm) : 2500 x 1960 x 1550
  • Weight : 7.500 kg


  • Dairy Industry (e.g. yoghurt, milk, cream, cheese)
  • Spray drying applications: e.g. milk powder
  • Ice cream mix
  • Beverage Industry (e.g. fruit juices, fruit concentrates, fruit purees and Liqueurs)
  • Homogenization of various tomato products
  • Chemical applications (e.g. polymerization, wax, latex)
  • Pharmaceutical applications (e.g. enteral nutrition, parenteral nutrition)
  • Biotechnological applications (e.g. various cell disruption)

Download Technical Doc
